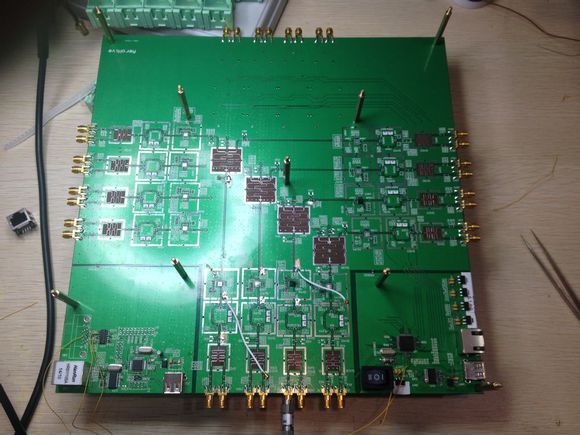

自己做的多路程控衰减器DC-6G的衰减网络

衰减器一个入口三个出口。每个端口有四路，每个端口的衰减值都可以单独设置。主要适用于无线AP的或者一些射频网络的性能测试。
使用只需要一条串口线，简单容易操作，而且也方便自动化测试
只需一条串口：
?Introduction?Control instruction?How to use it
1.“?”and return
#HW#?
B2AP01** The attenuation of the port1 is **(youset) in 2.4G band，and the value need between 11 and 71
B2AP02** The attenuation of the port2 is **(youset) in 2.4G band，and the value need between 11 and 71
B2AP03** The attenuation of the port3 is **(youset) in 2.4G band，and the value need between 11 and 71
B2AP04** The attenuation of the port4 is **(youset) in 2.4G band，and the value need between 10 and 70
B5AP01** The attenuation of the port1 is **(youset) in 5G band，and the value need between 15 and 75
B5AP02** The attenuation of the port2 is **(youset) in 5G band，and the value need between 16 and 76
B5AP03** The attenuation of the port3 is **(youset) in 5G band，and the value need between 17 and 77
B5AP04** The attenuation of the port4 is **(youset) in 5G band，and the value need between 17 and 77
SHAP1234 You can see theattenuation of all the port at present
SHAP1111 The minimumattenuation from the input port1 to output ports
RSET0011 Reset
