Slew Rate Test
录入：edatop.com 阅读：
Hey All,
I have setup my Op-Amp under Slew Rate Test....
Input 1m Pulse-------->slewRate is 45K
Input 1u Pulse-------->slewRate is 45M
I'm unable to interpret What is the SLEW RATE of my design.....?
At what value of Input Pulse Slew Rate should be measured.....?
Follow the attachments for my concern......
Reply 2 # cpyiee

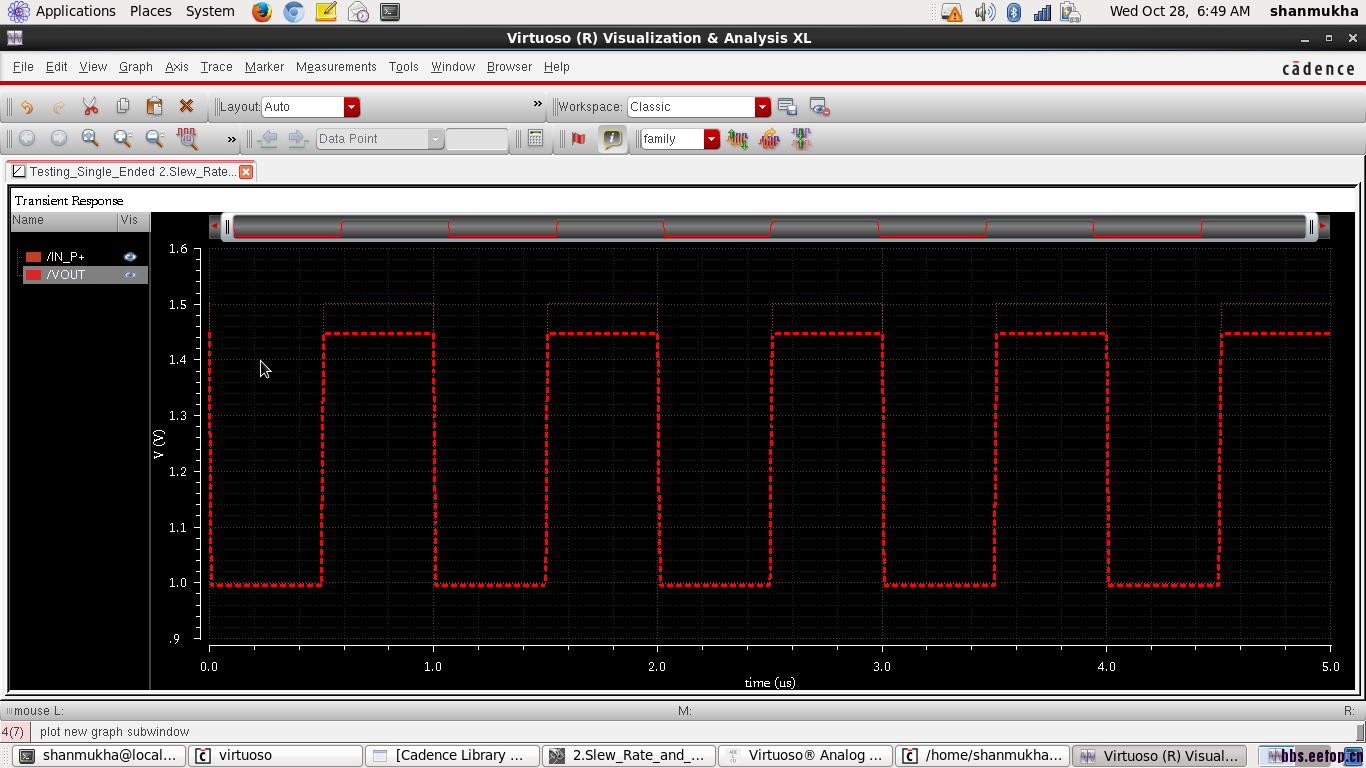

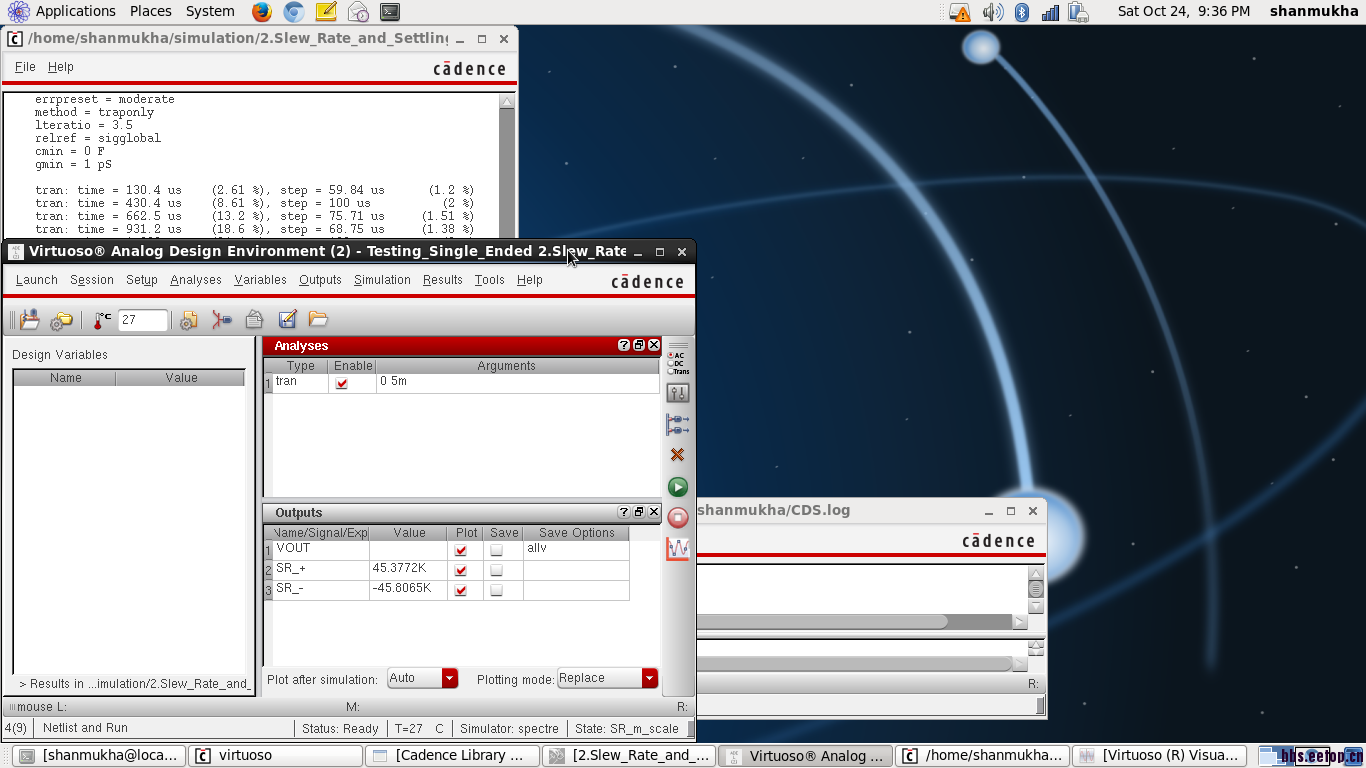

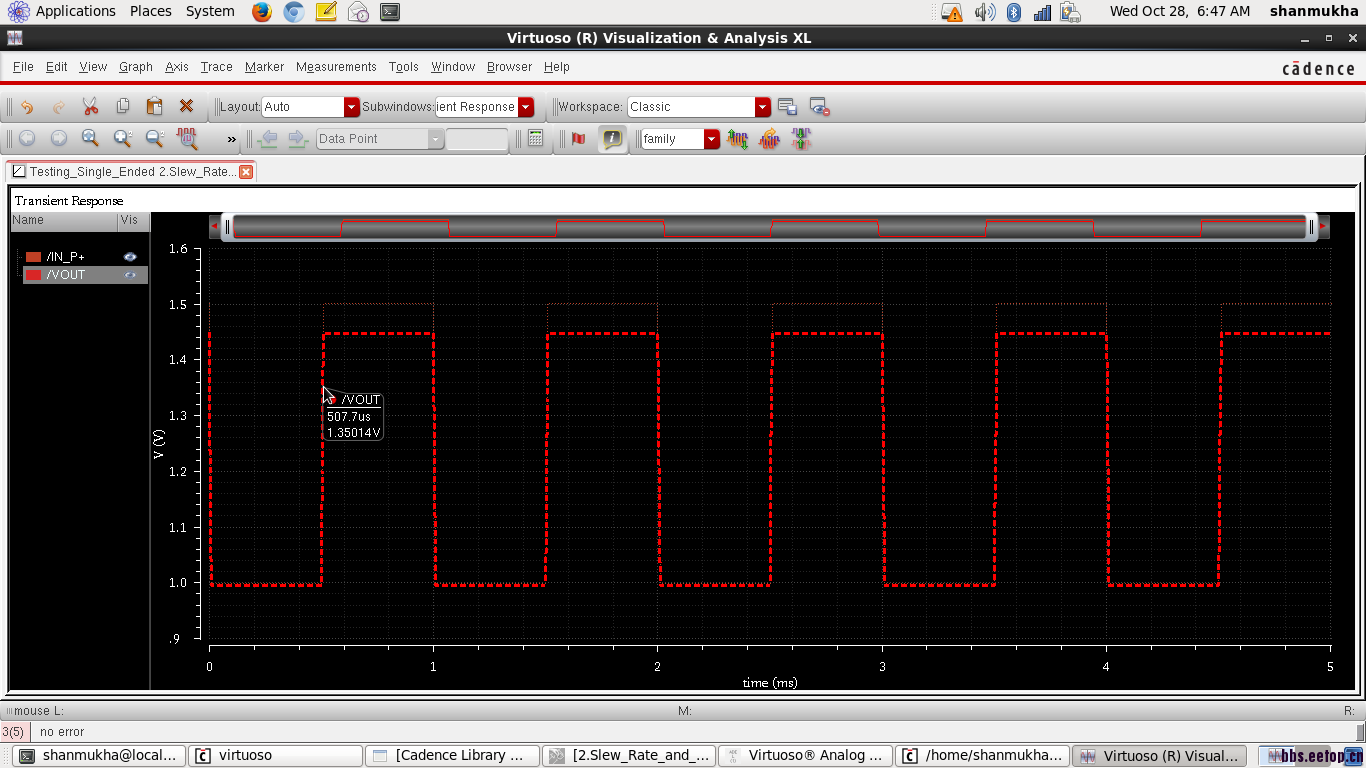

Thanks for reply ...... Follow the Attachment for Waveforms ...........
I have setup my Op-Amp under Slew Rate Test....
Input 1m Pulse-------->slewRate is 45K
Input 1u Pulse-------->slewRate is 45M
I'm unable to interpret What is the SLEW RATE of my design.....?
At what value of Input Pulse Slew Rate should be measured.....?
Follow the attachments for my concern......
Show your waveform.
The implemented SR function in virtuso seems weird.
Reply 2 # cpyiee Thanks for reply ...... Follow the Attachment for Waveforms ...........
