关于仿真电路的搭建

是在cadence spectre下（Linux）

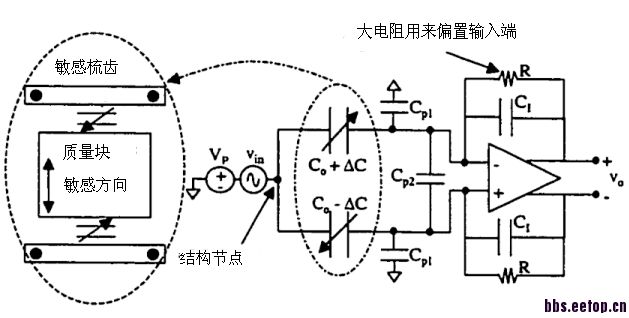

“C0 + delta C”  “C0 - delta C ” 两者串起来接入输入端既可

   谢谢

像小编求教：
   导入verilog生成逻辑控制电路，但是有问题无法生成symbol，小女子不胜感激。
*W,DLNOHV: Unable to find an 'hdl.var' file to load in.
TOOL:
ncvlog
05.50-E115: Started on Apr 29, 2015 at 15:26:03 CST
ncvlog
    -use5x
    -ESCAPEDNAME
    -work __nclib
    -view module
    -logfile ncvlog.log
    -cdslib /tmp/ihdl_cdsliba2756_22756
    -messages
    -nostdout
    -nocopyright
    /home/dianke/ic5141/design/sar_logic.v
file: /home/dianke/ic5141/design/sar_logic.v
assign start   =！en_！ & en_reg;
                    |
ncvlog:
*E,EXPSMC (/home/dianke/ic5141/design/sar_logic.v,28|20): expecting a semicolon (';') [6.1(IEEE)].
                 begin
                     |
ncvlog:
*E,CSISYX (/home/dianke/ic5141/design/sar_logic.v,110|21): case item syntax error [9.5(IEEE)].
                default:
                      |
ncvlog:
*E,NOTSTT (/home/dianke/ic5141/design/sar_logic.v,114|22): expecting a statement [9(IEEE)].
               endcase
                     |
ncvlog:
*E,NOTSTT (/home/dianke/ic5141/design/sar_logic.v,119|21): expecting a statement [9(IEEE)].
module __nclib.sar_logic:module

errors: 4, warnings: 0
Total errors/warnings found outside modules and primitives:
errors: 0, warnings: 1
TOOL:
ncvlog
05.50-E115: Exiting on Apr 29, 2015 at 15:26:03 CST  (total: 00:00:00)
