求助变压器model问题
录入：edatop.com 阅读：
做AC-DC时遇到变压器转换，只不过通过specture仿真有问题，我觉得可能是我改的有问题，所以请教大神

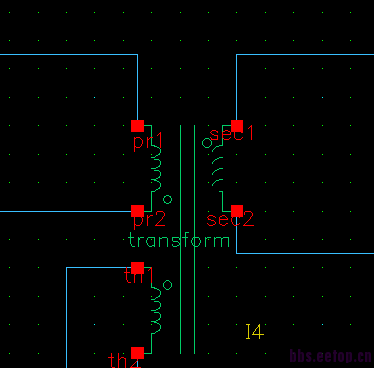

我觉得可能是我磁通量的地方写的有问题，下面是写的磁通量程序，symbol如图
F1 = L*(n1*I(pr1,pr2)-k12*n2*I(sec1,sec2)-n3*I(th1,th2));//magnetic flow through primary winding
F2 = L*(n2*I(sec1,sec2)-k12*n1*I(pr1,pr2)+k23*n3*I(th1,th2));//magnetic flow through secondary winding
F3 = L*(n3*I(th1,th2)+k23*n2*I(sec1,sec2)—n1*I(pr1,pr2));//magnetic folw through secondary winding
我觉得可能是我磁通量的地方写的有问题，下面是写的磁通量程序，symbol如图
F1 = L*(n1*I(pr1,pr2)-k12*n2*I(sec1,sec2)-n3*I(th1,th2));//magnetic flow through primary winding
F2 = L*(n2*I(sec1,sec2)-k12*n1*I(pr1,pr2)+k23*n3*I(th1,th2));//magnetic flow through secondary winding
F3 = L*(n3*I(th1,th2)+k23*n2*I(sec1,sec2)—n1*I(pr1,pr2));//magnetic folw through secondary winding
你这三个磁通量值如何与电压对应?
理想变压器还是VCVS比较好用。
