定向耦合器端口激励的设置问题
录入:edatop.com 阅读:
*Global - Messages
[warning] Left-alt + shift is currently used by the system to toggle the input language. It is also used in some portions of this application, which may cause the input language to change unexpectedly.
dingxiangouheqi (C:/Users/user/Documents/Ansoft/)
HFSSDesign1 (DrivenModal)
[error] Polygon center and start point are not in the same(XY) plane. (4:50:31 下午十月 07, 2014)
[error] No conductors were found on port '1', so auto assignment of conductors on that port cannot proceed. (8:55:30 下午十月 07, 2014)
[error] No conductors were found on port '2', so auto assignment of conductors on that port cannot proceed. (9:02:31 下午十月 07, 2014)
[error] No conductors were found on port '3', so auto assignment of conductors on that port cannot proceed. (9:02:31 下午十月 07, 2014)
求大神,这个问题怎么解决。
[warning] Left-alt + shift is currently used by the system to toggle the input language. It is also used in some portions of this application, which may cause the input language to change unexpectedly.
dingxiangouheqi (C:/Users/user/Documents/Ansoft/)
HFSSDesign1 (DrivenModal)
[error] Polygon center and start point are not in the same(XY) plane. (4:50:31 下午十月 07, 2014)
[error] No conductors were found on port '1', so auto assignment of conductors on that port cannot proceed. (8:55:30 下午十月 07, 2014)
[error] No conductors were found on port '2', so auto assignment of conductors on that port cannot proceed. (9:02:31 下午十月 07, 2014)
[error] No conductors were found on port '3', so auto assignment of conductors on that port cannot proceed. (9:02:31 下午十月 07, 2014)
求大神,这个问题怎么解决。
把文件上传看一下
[error] Polygon center and start point are not in the same(XY) plane. (4:50:31 下午十月 07, 2014)
端口上的多边形是不是不在一个平面上。
[error] Polygon center and start point are not in the same(XY) plane. (4:50:31 下午十月 07, 2014)
端口上的多边形是不是不在一个平面上。
把文件传上来啊

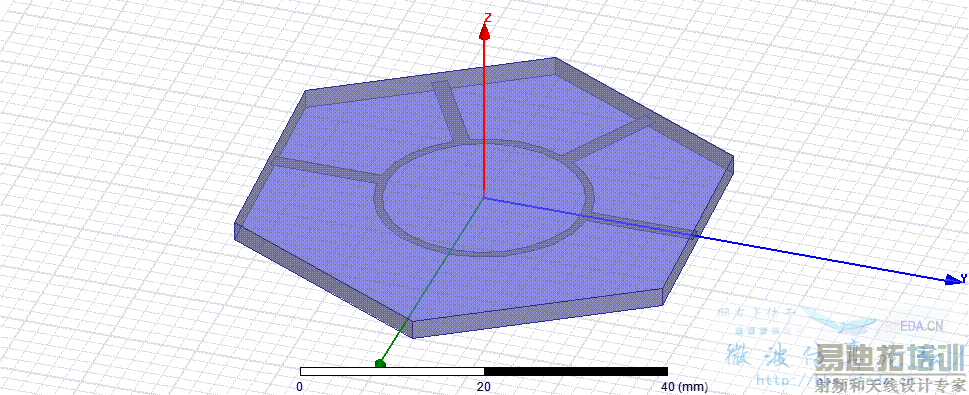

模型在这里,是设置终端求解的情况下,可是就是不知道怎么设置激励,用的是hfss 13.0 版本的。
文件上传了,模型应该没错吧,可是激励就是设置不了。
