Nokia 9500 handset BOM & PCBA

录入:edatop.com     点击:
Coupled with a large 65,000-color screen (640 by 200 pixels), the connections make viewing web pages easy [I](Fig. 1)[/I]. A full keyboard enables trouble-free e-mail creation. An integrated 640- by 480-pixel (VGA) camera with video capturing capability and MP3 music player are included. Information can be stored on the internal 80-Mbyte memory, or on a removable Multimedia Card (MMC).
1. The Nokia 9500 handset combines myriad interfaces.

From a component perspective, there are ten key ICs, which is fewer than the typical 13 components in a Nokia handset [I](see the table)[/I]. However, the ten doesn''t include the image sensor (as the manufacturer can''t be identified due to the lack of markings).

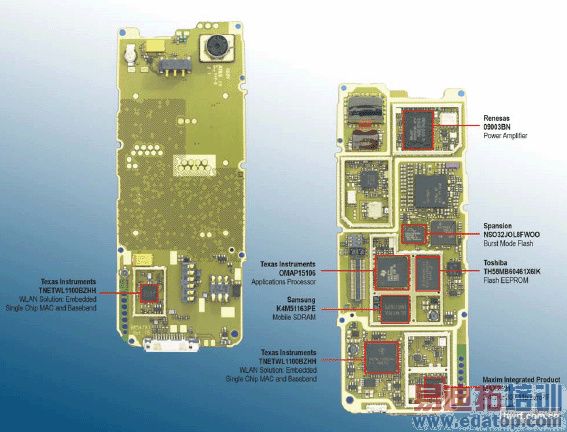

Texas Instruments has always had a strong baseband position in Nokia handsets, and this trend continues in the 9500. The OMAP1510 is a dual-core applications processor, and was selected for by Nokia for its ability to run streaming audio and video on 2.5G and 3G wireless networks. The OMAP1510 has a TI DSP and an integrated ARM925 processor (Fig. 2)
\

呵呵。这个不是BOM啊,一点用处也没有

bom是商機,一般不會給的.

There are two wlan baseband in the picture of PCB,why?

this is BOM?

虽然不是Bom , 不过也是可以先看看, 谢谢楼主!

BOM=bill of material !!!很详尽的main board上各种器件的用量、型号、厂家、装配等级。等等好多内容的
