Antenna Measurement Techniques (1)
录入：edatop.com 点击：
Part I: Theory & Principles
Antennas are devices for transmitting and/or receiving electromagnetic energy
through a medium or media at a given frequency band. Most antennas are used
to transmit and receive electromagnetic waves that carry information over a distance away from each others.Antennas can appear in a great variety of
forms depending on their applications
Theory

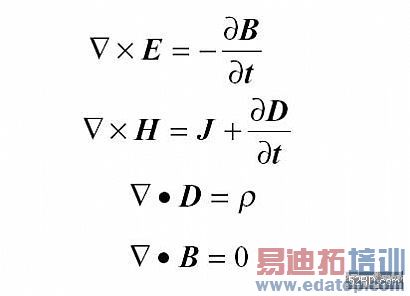

Fundamental Principles of the antennas are described by the following four mathematical Equations often referred to as Maxwell’s Equations
Antenna Types
- Resonant Antennas
Dipoles, Yagi-Uda arrays
Loops
Micro-strip Patches
- Travelling Wave Antennas
Horns; Log-period antennas
Rhombic antennas
- Quasi-optical Beam Forming Antennas
Parabolic reflector antenna, Array antenna
Antenna Polarization
Linear polarization: The electric field always lies on a line within the period (commonly referred)
Circular Polarization: The electric field uniformly changes its direction 360 degrees with a constant magnitude during a time-varying period (CW, CCW)
Elliptical Polarization: The electric field uniforml changes its direction and magnitude during a time varying period (generic antenna properties) A term to define the electric field orientation within a time-variation period of the electromagnetic wave
