Knightrider lights for model cars

Knightrider lights for model cars

This simple circuit drives 6 LEDs in 'Knightrider scanner mode'. Power consumption depends mainly on the type of LEDs used if you use a 7555 (555 CMOS version).

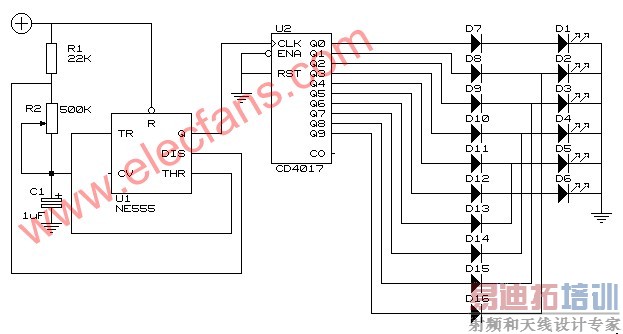

Here's the circuit:

Note that V DD and GND for the ICs are not shown in the circuit drawing.
