红外遥控器干扰电路 IR Remote Control Jammer

By Carl
Don't like your little brother's TV channel selection Hate the volume your wife sets the stereo at Want to just annoy someone This circuit does all that and more by jamming most IR remote signals. The circuit releases a flood of pulsing IR light that confuses the reciever by corrupting the data stream.

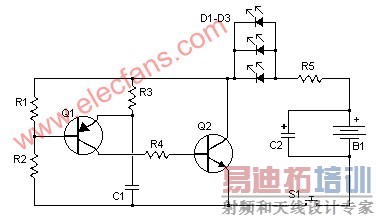

Schematic

Part
 Total Qty.
 Description
 Substitutions

R1
 1
 100K 1/4W Resistor


R2
 1
 150K 1/4W Resistor


R3
 1
 10K 1/4W Resistor


R4
 1
 1K 1/4W Resistor


R5
 1
 See "Notes"


C1
 1
 10nF Ceramic Disc Capacitor


C2
 1
 1uF Electrolytic Capacitor


D1, D2, D3
 3
 High Output IR LED


Q1
 1
 2N4403 PNP Transistor


Q2
 1
 2N4401 NPN Transistor


S1
 1
 Normally Open Momentary Push Botton


B1
 1
 4.5V Battery (Three "AA"'s In Series)


MISC
 1
 Wire, Case, Board


Notes:
1. Email Carl with questions, comments, etc.

2. You may need to adjust the value of R3 for the right frequency. A pot can be used.

3. You may only need one IR LED.

4. It goes without saying that this circuit should be used with descretion.
