基于IRS2573D设计的70W HID灯参考技术

IRS2573D是全集成全保护的600V氙气灯(HID)控制器,能驱动所有类型的氙气灯(HID)灯. IRS2573D包括点火时间控制,恒定灯功率控制,可编程全桥运行频率,可编程过压和欠压保护以及可编程过流保护. 此外,器件还集成了600V高边和低边全桥驱动器,以及600V高边降压驱动器等.本文介绍IRS2573D 主要特性,功能方框图,以及典型应用电路和70W HID灯参考设计电路图,主要指标,材料清单和PCB布局图.

The IRS2573D is a fully-integrated, fully-protected 600V HID control IC designed to drive all types of HID lamps.

Internal circuitry provides control for ignition, warm-up, running and fault operating modes. The IRS2573D features include ignition timing control, constant lamp power control, programmable full-bridge running frequency, programmable over and under-voltage protection and programmable over-current protection. Advanced protection features such as failure of a lamp to ignite, open load, short-circuit and a programmable fault counter have also been included in the design.

IRS2573D 主要特性:

Buck, full-bridge and lamp control in one IC

Continuous/critical-conduction mode buck control

600V high and low-side full-bridge driver

600V high-side buck Driver

Low-side ignition FET gate driver

Integrated bootstrap FETs for full-bridge high-side drivers

Constant lamp power control

Programmable buck cycle-by-cycle over-current protection

Programmable buck output voltage limitation

Programmable lamp current limitation

Programmable full-bridge frequency

Fault latch reset input

Programmable ignition counter (21sec/64sec typical)

Programmable lamp under-voltage fault counter (197sec typical) for short-circuit or lamp does not warm-up

Fast transient lamp under-voltage event counter (16384 typical) for arc instability or end-of-life

Programmable lamp over-voltage fault counter (787sec typical) for open-circuit or lamp extinguishes

Programmable good fault reset counter (2730sec typical)

Micro-controller compatible timing thresholds

Internal 15.6V zener clamp diode on VCC

Micropower startup (150μA)

Latch immunity and ESD protection on all pins


图1.IRS2573D功能方框图

图2.IRS2573D典型应用电路图 [p]

70W HID灯IRPLHID2参考设计

The IRPLHID2 reference design kit consists of a complete ballast solution for a 70W HID lamp. The design contains an EMI filter, low voltage power supply, active power factor correction and a ballast control circuit using the IRS2573D. This demo board is intended to help with the evaluation of the IRS2573D HID ballast control IC, demonstrate PCB layout techniques and serve as an aid in the development of production ballasts using the IRS2573D.

IRPLHID2参考设计主要特性:

Drives 1 x 70W HID lamp

Input voltage range: 185-265 VAC

High Power Factor / Low Total Harmonic Distortion

Controlled ignition

Low frequency square wave operation

Lamp power and current control

Open circuit and no-lamp protection

Short circuit and lamp failure to warm-up protection

Lamp end-of-life shutdown

IRS2573DSPbF HID Ballast Control IC

IRPLHID2参考设计主要指标:

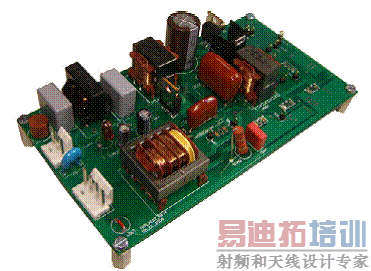

图3.IRPLHID2参考设计外形图

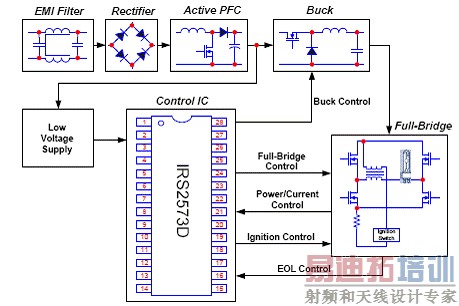

图4.IRPLHID2参考设计方框图 [p]

图4.IRPLHID2参考设计电路图(1)

图5.IRPLHID2参考设计电路图(2)

IRPLHID2参考设计材料清单(BOM):



图6.IRPLHID2参考设计PCB布局图
