基于CX25858设计的8路音视频译码方案

录入:edatop.com    点击:

CX25858集成了用作监视的PCIe接口的8路音视频译码器,包括有8路高质量的NTSC/PAL视频译码器和10位ADC以及5路梳状滤波器,可以获得最高质量数字视频输出和尽可能最低噪音. CX25858还包括8路高质量单声道音频A/D和I2S输出.本文介绍了CX25858主要特性,方框图,以及多路音/视频译码器评估板主要特性和方框图.

The CX25858 8-Channel Audio/Video Decoder with Integrated PCIe Interface was designed for surveillance applications. The CX25858 contains eight high quality NTSC/PAL video decoders with 10-bit A/Ds and 5-line comb filtering, to generate the highest quality digital video output with the lowest possible noise. This creates not only the best image quality for viewing, but enables lower bitrates for compression devices using the output of the CX25858.

The video decoders within the CX25858 are optimized to lock to inputs with low signal levels as well as line-locked cameras, both of which are common in surveillance systems. Each video decoder may be scaled independently and the CX25858 supports BT.656 as well as a variety of other interleaved digital video output formats.

The CX25858 also contains eight high-quality mono audio A/Ds with I2S outputs.

CX25858主要特性:

PCIe Bridging

The CX25858 contains a PCIe 1.1 compliant x1 interface. It is ideal for ”capture card” applications in systems where eight channels of high-quality, uncompressed video must be digitized and transmitted via PCIe for viewing, compression, and/or analytics. The CX25858 can downscale digital video from 4:2:2 format to 4:1:1, reducing bandwidth requirements from 16 bits per pixel to 12.

Additionally, the CX25858 supports the bridging of up to four channels of digital video and audio from PCIe, and can output these streams over pins in BT.656 or I2S-style interfaces, respectively.

Direct-Connection to Multi-Channel H.264 CODECs

The CX25858 supports byte, line, or frame-interleaved digital video outputs at 27, 54, or 108 MHz. Byte and line interleaved outputs are supported entirely within the CX25858. Frame-interleaved outputs require that the CX25858 interface with external DDR2 memory. The CX25858 supports I2S and multiplexed I2S audio outputs.

The CX25858 contains an interface for Maxim H.264 CODECs that permit the CX25858 to bridge compressed data from Maxim devices to the PCIe bus.

This simplifies the Bill of Materials (BOM) and reduces costs in PCIe systems.

Distinguishing Features

• Eight High-Quality NTSC/PAL video decoders:

- Anti-alias filters

- 10-bit A/Ds

- 5-line comb filtering

- Independent scaling

• Eight Mono audio A/Ds

- Variable sample rates

- I2S outputs

• Flexible digital video output formats at 27, 54, and 108 MHz

- Byte-interleaved

- Line-interleaved

- Frame-interleaved (requires external DDR2 memory)

• PCIe 1.1 x1 interface

• Interface to Maxim CODECs for bridging of compressed data to PCIe

• Tiling and cascading functions (requires external DDR2 memory)

• Programmable Motion Detection

• 48 GPIO pins

Additional Features

There are two variants of the CX25858 offered — one with the external DDR2 interface, and one without the interface. When equipped with DDR2, the CX25858 supports frame-interleaved video outputs, as well as a 2x2 CIF tiling mode, in which four CIF
images are tiled into a single D1 stream.

The CX25858 may be cascaded with the CX25838 to create a 16-channel system for sending video and audio data over PCIe. The CX25858 includes programmable motion detection logic, which can trigger flags or PCIe interrupts when motion is detected on incoming analog video streams.

The CX25858 contains 48 GPIO pins, which maximize flexibility and allow customization to a variety of applications and designs. I2C interfaces and the Maxim interface are supported via GPIOs.

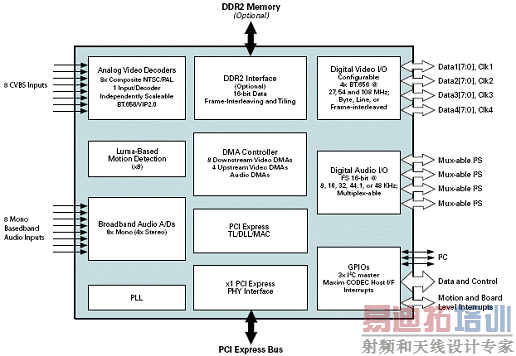

图1.CX25858 方框图 [p]

多路音/视频译码器评估板CX25838-EVK


图2.评估板CX25838-EVK外形图

The stand-alone evaluation kit is designed to showcase the capabilities of Conexant’s CX25838 devices. Each CX25838 device integrates eight high-quality video decoders with eight audio A/Ds, and supports byte and line-interleaved digital video outputs. The CX25838-1x contains a DDR2 interface and supports frame-interleaved outputs as well as 2x2 CIF resolution tiling. Frame-interleaved outputs provide key benefits and additional flexibility to many DVR systems by eliminating glue-logic and lowering codec processing requirements.

The CX25838-2x (without DDR2 interface) may be cascaded with the CX25838- 1x to allow frame-interleaved output of up to 16 video channels. High-speed headers on the board are designed to allow uncompressed video and audio output from the CX25838 devices to easily cable over to H.264 development platforms. The CX25838 contains enhancements specific to surveillance applications, such as programmable motion detection, expanded line-locked camera frequency ranges, and enhanced low-level input locking capabilities.

The CX25838 Evaluation Kit also includes Conexant’s CX25874 video encoders, which accept BT.656 data from the CX25838 multi-channel decoders and generate analog composite, S-Video, and component outputs. Additionally, Conexant’s CX20709 device accepts digital audio data from the CX25838 and converts it to analog output.

The evaluation kit is controlled with a user-friendly PC application, which interfaces to the board via USB. In addition to controlling the board, the USB interface allows bridging of video data from the CX25838 to the PC, for evaluation of pure digital video.

The CX25838 Evaluation Kit provides DVR manufacturers with a simple, yet powerful evaluation and development platform for systems based on the device. The CX25838 is the world’s only eight-channel integrated audio/video decoder for surveillance DVR applications.

Benefits

Conexant CX25838

• Eight Video Decoders and Audio A/Ds: Highest level of integration, smallest PCB footprint

• Frame-Interleaved Video Outputs: Eliminate glue-logic and reduce codec overhead

•Designed Specifically for Video Surveillance DVR Applications: Motion Detection,Line-Locked Camera, and Low-Level Input Features

• 5-line comb filtering: Excellent luma/chroma separation for best image quality and lowest compression bitrate Conexant CX25874

• Four high-performance, 10-bit DAC outputs support composite, S-Video, and component analog out

• Adaptive flicker filtering and peaking filters for text sharpness

图3.多路音/视频译码器评估板(CX25838/CX25874/CX20709)方框图
