一般情况，们碎铜怎么处理？

不知所云

THERMAL RELIEF ERRORS REPORT -- DV898_MAIN_1.0.pcb -- Thu Sep 27 10:44:14 2012
Drilled pads with Nondrilled pads with
less than 50% thermal extensionsless than 50% thermal extensions
Report of Thermal Spokes Generator.
On Bottom:
R18.1 (9.65, 7.7674) # = 1
C80.1 (8.0674, 24.5) # = 1
C120.2(9.6, 42.6674) # = 1
C78.1 (14.6, 7.2826) # = 1
C98.1 (28.05, 32.4674) # = 1
C91.1 (20.2, 19.2174) # = 1
C141.1(19.5, 40.0826) # = 0
On Top:
C118.1(23.55, 6.7) # = 1
C117.1(15.95, -0.85) # = 1
J1.9(5.52, 36.85) # = 0
Total Drilled pads:0 Total Nondrilled pads: 10
Report of Violating Thermal Spokes Remover.
On Bottom:
C104.2(6.5, 22.9) # = 1
Total Drilled pads:0 Total Nondrilled pads:1

使用禁止灌铜的禁布区进行除去碎铜

覆铜没设置好，选择flood over就好了

我是选的这个啊

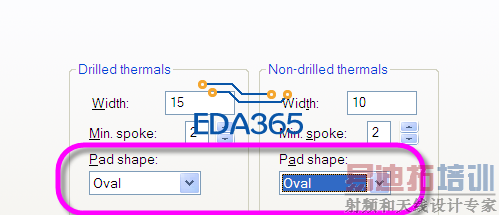

几种形状都要设置

截个图看一下，好不？

坛主一般怎么设置？

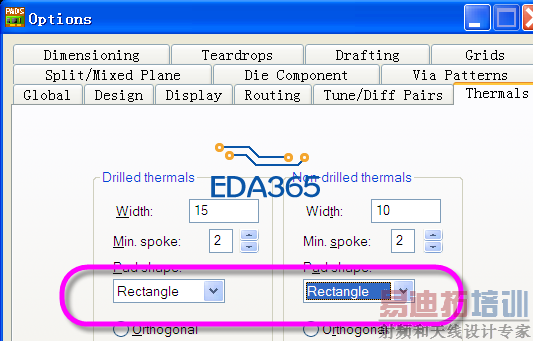

截图9楼老师已给出

按9楼老师截的图去做就没错

选择哪一种啊？
