求解用PADS Logic 生成的网络表的问题
录入:edatop.com 点击:

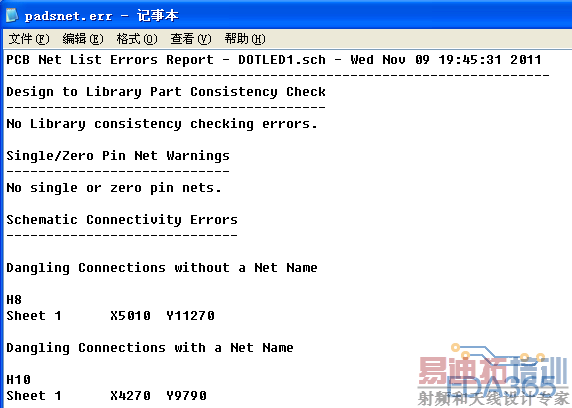

padsnet.err——记事本
pcb Net List Errors Report - DOTLED1.sch - Wed Nov 09 19:45:31 2011
--------------------------------------------------------------------
Design to Library Part Consistency Check
----------------------------------------
No Library consistency checking errors.
Single/Zero Pin Net Warnings
----------------------------
No single or zero pin nets.
Schematic Connectivity Errors
-----------------------------
Dangling Connections without a Net Name
H8
Sheet 1X5010Y11270
Dangling Connections with a Net Name
H10
Sheet 1X4270Y9790
请好心人解释上面是那出现问题了。
pcb Net List Errors Report - DOTLED1.sch - Wed Nov 09 19:45:31 2011
--------------------------------------------------------------------
Design to Library Part Consistency Check
----------------------------------------
No Library consistency checking errors.
Single/Zero Pin Net Warnings
----------------------------
No single or zero pin nets.
Schematic Connectivity Errors
-----------------------------
Dangling Connections without a Net Name
H8
Sheet 1X5010Y11270
Dangling Connections with a Net Name
H10
Sheet 1X4270Y9790
请好心人解释上面是那出现问题了。
X5010Y112709
X4270Y9790
查看一下这两个坐标值的地方,存在dangling connect
这两个网点刚好互相连接错误,我以前也遇到过,检查封装和原理图,建议用ORCAD画原理图导网表,logic画元件封装费力。
谢谢大侠,问题已解
楼主的问题是怎么解决的?我也遇到了,说说啊
