菜鸟的疑问，logic画好原理图导入layout时什么也没有倒出来，没有任何封装出现

各位大虾：

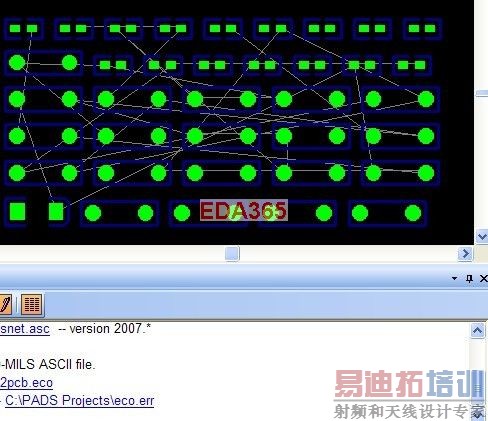

学习pads中遇到了一个问题，我在lOGIC中画好原理图，并且把pcb封装也指定好了，在tools->layout时，验证netlist也是没有错误的，但是新建的pads layout什么也没有出现（没有任何封装），在logic中的提示信息，不知道哪儿出了问题，请各位不吝赐教
Generating Net List...
Exporting Net List to PADS Layout... Done
Generating Net List from the Schematic...
Importing Net List from PADS Layout...
Comparing SCH to PCB...
Differences found
Differences report --

Disconnecting from PADS Layout...
Disconnected from PADS Layout
PCB net list file created --

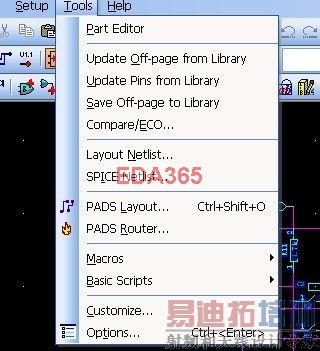

请在原理图界面执行:tools->pads layout link...->ECO TO PCB

你好，tools菜单下没有你说的那一项啊，麻烦了

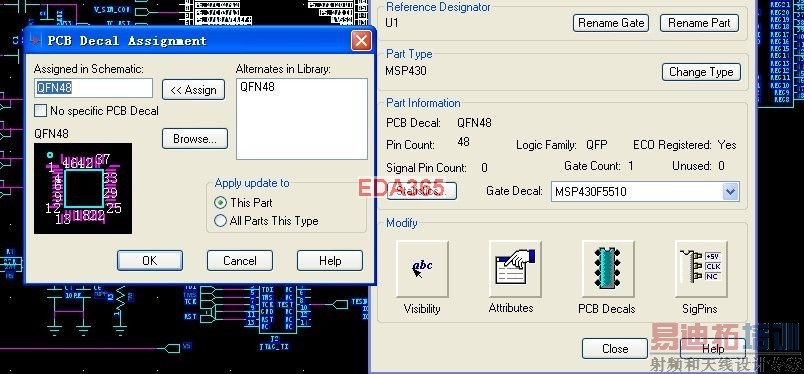

您好，我找到了您说的那项了，但是好像出了很多问题，但是我在原理图上已经指定了封装了，是不是我画的封装有问题呢？
另外 ECO-PCB是什么意思呢，做什么用呢？谢谢版主！
