Powerint公司的TOPSwitch-JX系列产品集成了725V功率MOSFET,高压开关电流源,多模式PWM控制器,振荡器,热关断电路,故障保护和其它控制电路,适合用于10W-245W的电源.265VAC时无负载的功耗小于100mW,主要用在笔记本电脑适配器,打印机,LCD监视器,STB,PC或LCD TV待机电源,音频放大器.本文介绍了TOPSwitch-JX系列产品亮点,方框图, 19V 65W反激电源电路图和12V 30W反激电源电路图以及12V/24V 100W反激电源评估板主要特性和指标,电路图,变压器电路图与材料清单,PCB布局图.
TOPSwitch-JX cost effectively incorporates a 725 V power MOSFET, high-voltage switched current source, multi-mode PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.
TOPSwitch-JX系列产品亮点:
EcoSmart – Energy Effi cient
Ideal for applications from 10 W to 245 W
Energy efficient over entire load range
No-load consumption below 100 mW at 265 VAC
Up to 750 mW standby output power for 1 W input at 230 VAC
High Design Flexibility for Low System Cost
Multi-mode PWM control maximizes effi ciency at all loads
132 kHz operation reduces transformer and power supply size
66 kHz option for highest effi ciency requirements
Accurate programmable current limit
Optimized line feed-forward for line ripple rejection
Frequency jittering reduces EMI fi lter cost
Fully integrated soft-start for minimum start-up stress
725 V rated MOSFET
Simplifi es meeting design derating requirements
Extensive Protection Features
Auto-restart limits power delivery to 3% during overload faults
Output short-circuit protection (SCP)
Output over-current protection (OCP)
Output overload protection (OPP)
Output overvoltage protection (OVP)
User programmable for hysteretic/latching shutdown
Simple fast AC reset
Primary or secondary sensed
Line undervoltage (UV) detection prevents turn-off glitches
Line overvoltage (OV) shutdown extends line surge withstand
Accurate thermal shutdown with large hysteresis (OTP)
Advanced Package Options
eDIP -12 package:
43 W / 117 W universal input power output capability with
PCB / metal heat sink
Low profi le horizontal orientation for ultra-slim designs
Heat transfer to both PCB and heat sink
Optional external heat sink provides thermal impedance
equivalent to a TO-220
eSIP -7C package:
177 W universal input output power capability
Vertical orientation for minimum PCB footprint
Simple heat sink mounting using clip provides thermal
impedance equivalent to a TO-220
eSOP -12 package:
66 W universal input output power capability
Low profi le surface mounted for ultra-slim designs
Heat transfer to PCB via exposed pad and SOURCE pins
Supports wave or refl ow soldering
Extended creepage to DRAIN pin
Heat sink is connected to SOURCE for low EMI
TOPSwitch-JX系列典型应用:
Notebook or laptop adapter
Generic adapter
Printer
LCD monitor
Set-top box
PC or LCD TV standby
Audio amplifi er

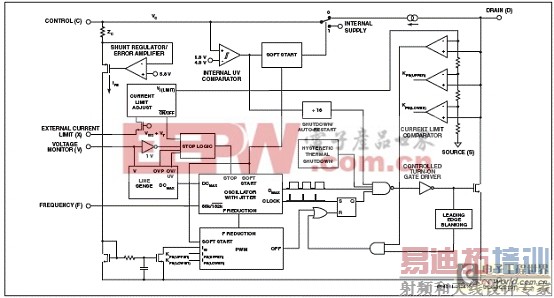

图1.TOPSwitch-JX系列方框图

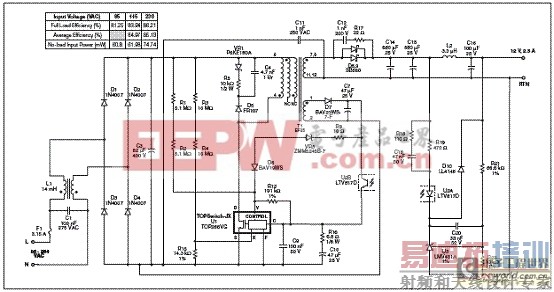

图2.TOPSwitch-JX系列通用输入19V 65W反激电源电路图

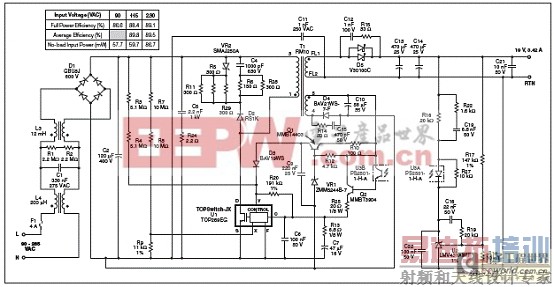

图3.TOPSwitch-JX系列通用输入12V 30W反激电源电路图
12V/24V 100W反激电源评估板
This document is an engineering report describing a 12 V / 24 V, 100 W flyback DC-DC converter utilizing a TOP270VG from the TOPSwitch-JX family of ICs. This power supply is intended for use in an LCD TV with LED back light. The board requires +380 VDC input, supplied from the PFC stage in a typical TV design.
100W反激电源评估板主要特性:
Highly energy efficient
Full load efficiency >90%
Efficiency >89% above 10% load
Average efficiency >90% (25%, 50%, 75%, 100% load points)
Simplifies meeting ENERGY STAR 2.0 and EuP requirements
Low cost, low component count and small PCB footprint solution
Performance met without synchronous output rectification
132 kHz operation optimized core size and efficiency performance
Low profile eDIP -12 package for ultra-slim designs
Integrated protection and reliability features
Line under voltage lock out (UVLO)
Primary sensed output overvoltage shutdown (OVP). Latched OVP condition can be reset with a fast AC reset circuit.
Auto recovery output over current (OCP)
Meets limited power source (LPS) 100 VA requirement with a single point of failure
Accurate thermal shutdown with large hysteresis

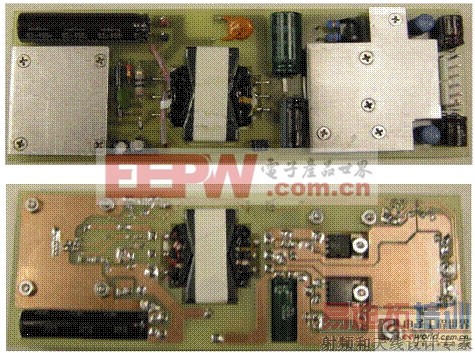

图4.100W反激电源评估板外形图
100W反激电源主要指标:

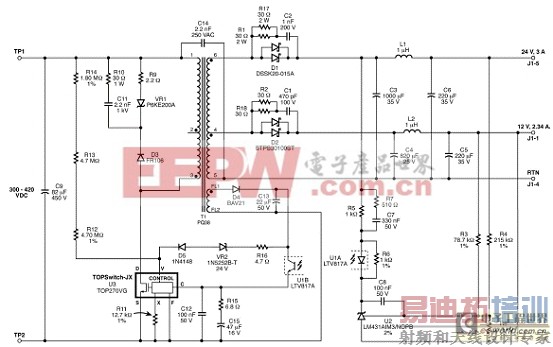

图5.100W反激电源评估板电路图
100W反激电源评估板材料清单(BOM):

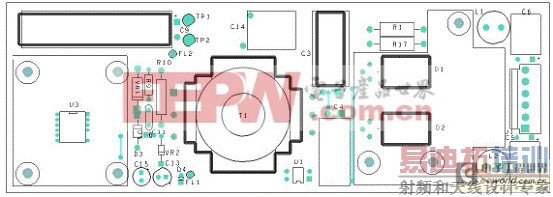

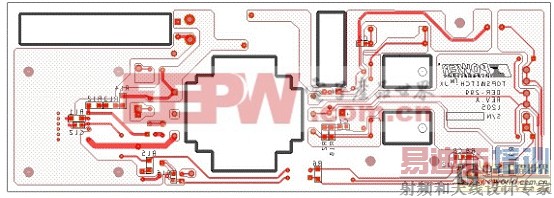

图6.100W反激电源评估板PCB布局图(顶层)
图7.100W反激电源评估板PCB布局图(底层)
图8.变压器电路图
详情请见:
http://www.powerint.com/sites/default/files/product-docs/topjx_family_datasheet.pdf
和
http://www.powerint.com/sites/default/files/PDFFiles/der299.pdf
TOPSwitch-JX cost effectively incorporates a 725 V power MOSFET, high-voltage switched current source, multi-mode PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.
TOPSwitch-JX系列产品亮点:
EcoSmart – Energy Effi cient
Ideal for applications from 10 W to 245 W
Energy efficient over entire load range
No-load consumption below 100 mW at 265 VAC
Up to 750 mW standby output power for 1 W input at 230 VAC
High Design Flexibility for Low System Cost
Multi-mode PWM control maximizes effi ciency at all loads
132 kHz operation reduces transformer and power supply size
66 kHz option for highest effi ciency requirements
Accurate programmable current limit
Optimized line feed-forward for line ripple rejection
Frequency jittering reduces EMI fi lter cost
Fully integrated soft-start for minimum start-up stress
725 V rated MOSFET
Simplifi es meeting design derating requirements
Extensive Protection Features
Auto-restart limits power delivery to 3% during overload faults
Output short-circuit protection (SCP)
Output over-current protection (OCP)
Output overload protection (OPP)
Output overvoltage protection (OVP)
User programmable for hysteretic/latching shutdown
Simple fast AC reset
Primary or secondary sensed
Line undervoltage (UV) detection prevents turn-off glitches
Line overvoltage (OV) shutdown extends line surge withstand
Accurate thermal shutdown with large hysteresis (OTP)
Advanced Package Options
eDIP -12 package:
43 W / 117 W universal input power output capability with
PCB / metal heat sink
Low profi le horizontal orientation for ultra-slim designs
Heat transfer to both PCB and heat sink
Optional external heat sink provides thermal impedance
equivalent to a TO-220
eSIP -7C package:
177 W universal input output power capability
Vertical orientation for minimum PCB footprint
Simple heat sink mounting using clip provides thermal
impedance equivalent to a TO-220
eSOP -12 package:
66 W universal input output power capability
Low profi le surface mounted for ultra-slim designs
Heat transfer to PCB via exposed pad and SOURCE pins
Supports wave or refl ow soldering
Extended creepage to DRAIN pin
Heat sink is connected to SOURCE for low EMI
TOPSwitch-JX系列典型应用:
Notebook or laptop adapter
Generic adapter
Printer
LCD monitor
Set-top box
PC or LCD TV standby
Audio amplifi er
图1.TOPSwitch-JX系列方框图
图2.TOPSwitch-JX系列通用输入19V 65W反激电源电路图
图3.TOPSwitch-JX系列通用输入12V 30W反激电源电路图
12V/24V 100W反激电源评估板
This document is an engineering report describing a 12 V / 24 V, 100 W flyback DC-DC converter utilizing a TOP270VG from the TOPSwitch-JX family of ICs. This power supply is intended for use in an LCD TV with LED back light. The board requires +380 VDC input, supplied from the PFC stage in a typical TV design.
100W反激电源评估板主要特性:
Highly energy efficient
Full load efficiency >90%
Efficiency >89% above 10% load
Average efficiency >90% (25%, 50%, 75%, 100% load points)
Simplifies meeting ENERGY STAR 2.0 and EuP requirements
Low cost, low component count and small PCB footprint solution
Performance met without synchronous output rectification
132 kHz operation optimized core size and efficiency performance
Low profile eDIP -12 package for ultra-slim designs
Integrated protection and reliability features
Line under voltage lock out (UVLO)
Primary sensed output overvoltage shutdown (OVP). Latched OVP condition can be reset with a fast AC reset circuit.
Auto recovery output over current (OCP)
Meets limited power source (LPS) 100 VA requirement with a single point of failure
Accurate thermal shutdown with large hysteresis
图4.100W反激电源评估板外形图
100W反激电源主要指标:
图5.100W反激电源评估板电路图

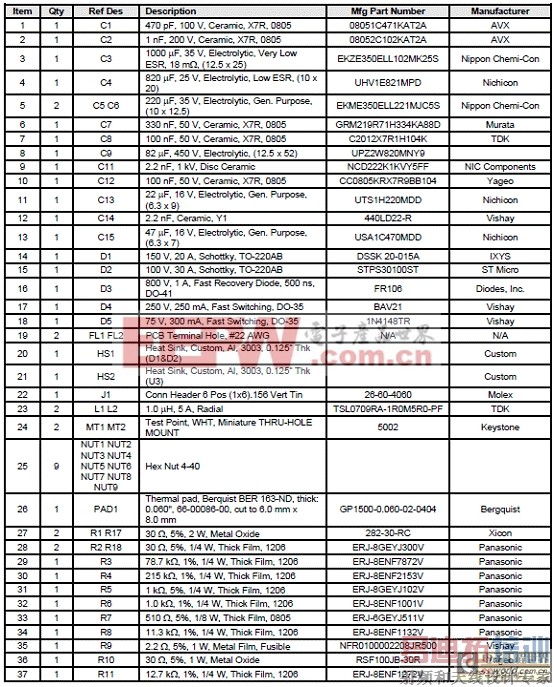

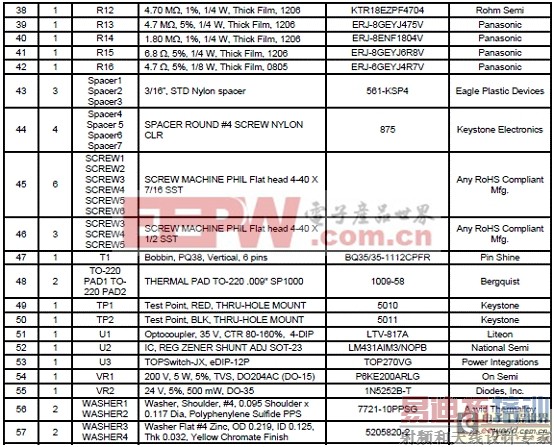

100W反激电源评估板材料清单(BOM):
图6.100W反激电源评估板PCB布局图(顶层)
图7.100W反激电源评估板PCB布局图(底层)
图8.变压器电路图
详情请见:
http://www.powerint.com/sites/default/files/product-docs/topjx_family_datasheet.pdf
和
http://www.powerint.com/sites/default/files/PDFFiles/der299.pdf
