Cirrus公司的CS5480是高精度三相电能测量模拟前端,每路集成了单独的4阶Delta-Sigma模数转换器(ADC),基准电路和已验证的EXL信号处理核,提供有功,无功和表观能量测量.4000:1动态范围的能量测量精度为0.1%,1000:1动态范围的电流RMS测量精度为0.1%,电源电压3.3V.本文介绍了CS5480主要特性,方框图, 单相三线和两线连接框图, 并联传感器, 电流变压器和Rogowski线圈电表连接图, 以及CDB5480U评估板主要特性,框图,电路图,材料清单和PCB布局图.
The CS5480 incorporates independent, 4th order, Delta-Sigma analog-to-digital converters for every channel, reference circuitry, and the proven EXL signal processing core to provide active, reactive, and apparent energy measurement. In addition, RMS and power factor calculations are available.
Calculations are output via configurable energy pulse, or direct UART/SPI serial access to on-chip registers.
Instantaneous current, voltage, and power measurements are also available over the serial port. Multiple serial options are offered to allow customer flexibility. The SPI provides higher speed, and the 2-wire UART minimizes the cost of isolation where required.
Three configurable digital outputs provide energy pulses, zerocrossing, energy direction, and interrupt functions. Interrupts can be generated for a variety of conditions including voltage sag or swell, overcurrent, and more. On-chip register integrity is assured via checksum and write protection. The CS5480 is designed to interface to a variety of voltage and current sensors including shunt resistors, current transformers, and Rogowski coils.
On-chip functionality makes digital calibration simple and ultra- fast, minimizing the time required at the end of the customer production line. Performance across temperature is ensured with an on-chip voltage reference with very low drift.
A single 3.3V power supply is required, and power consumption is very low at 13mW. To minimize space requirements, the CS5480 is offered in a low-cost, 4mm x 4mm 24-pin QFN package.
CS5480主要特性:
Des cription
Superior Analog Performance with Ultra-low Noise Level High SNR
Energy Measurement Accuracy of 0.1% over 4000:1 Dynamic Range
Current RMS Measurement Accuracy of 0.1% over 1000:1 Dynamic Range
3 Independent 24-bit, 4th-order, Delta-Sigma Modulators for Voltage and Current Measurements
3 Configurable Digital Outputs for Energy Pulses, Zero-crossing, or Energy Direction
Supports Shunt Resistor, CT, Rogowski Coil Current Sensors
On-chip Measurements Calculations:
- Active, Reactive, and Apparent Power
- RMS Voltage and Current
- Power Factor and Line Frequency
- Instantaneous Voltage, Current, and Power
Overcurrent, Voltage Sag, and Voltage Swell Detection
Ultra-fast On-chip Digital Calibration
Internal Register Protection via Checksum and Write Protection
UART/SPI Serial Interface
On-chip Temperature Sensor
On-chip Voltage Reference (25ppm /℃ Typ.)
Single 3.3V Power Supply
Ultra-fine Phase Compensation
Low Power Consumption: 13mW
Power Supply Configurations GNDA = GNDD = 0V, VDDA = +3.3V
4mm x 4mm, 24-pin QFN Package
图1. CS5480方框图

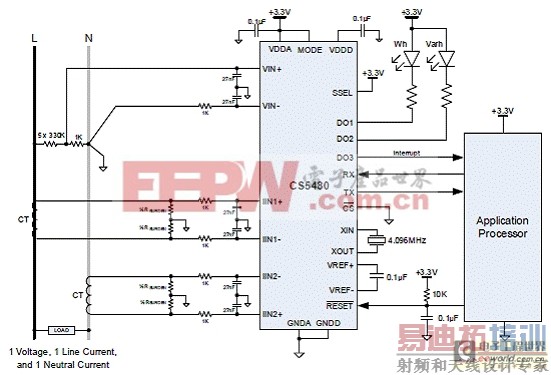

图2. CS5480单相三线连接框图
图3. CS5480单相两线连接框图
CDB5480U评估板
The CDB5480U is an extensive tool designed to evaluate the functionality and performance of the Cirrus Logic CS5480 power/energy measurement device.
Multiple analog input connection options, configuration input filters, direct and isolated digital interfaces, multiple power supply options, an onboard programmable micro-controller, and visual LEDs with an LCD panel make the board a flexible and powerful customer development tool for various power/energy measurement applications.
The GUI software provides easy and complete access to the onboard CS5480 device. In addition, it includes the function of raw ADC data collection with time domain, frequency domain, and histogram analysis.
CDB5480U评估板主要特性:
Standalone Power Meter Application
Voltage and Current Interfaces
Low- and High-voltage Sensor Connections
Adaptable Sensor Filters Onboard
USB Communication with PC
UART/SPI Optically Isolated Communication
Onboard C8051F342 Microcontroller
Single Supply Operation USB or 5V
Onboard DC-DC Converter and Regulator
LCD Power Monitor Display
LabWindows /CVI GUI Software
– Full Register Setup Chip Control
– Simplified Register Access
– Quick Calibration Control
FFT Analysis
– Time Domain Analysis
– Noise Histogram Analysis
Voltage Reference Access
CDB5484/80/90 Evaluation Boards
图4. CDB5484/80/90评估板外形图
The CDB5484/80/90U boards are designed to evaluate the functionality and performance of the CS5484/80/90 energy measurement IC family. Shunt resistors, current transformers or Rogowski coils can be connected to the analog inputs. Intuitive GUI software provides easy and full access to the on-board CS5484/80/90 device and MCU. On-board LEDs and LCD displays enable stand alone operation for extended testing. These CDBs enable fast and easy preliminary evaluation of Cirrus Logic’s AFE products
图5. CDB5484/80/90评估板方框图
图6. CS5480并联传感器电表连接图
图7. CS5480电流变压器电表连接图
图8. CS5480 Rogowski线圈电表连接图

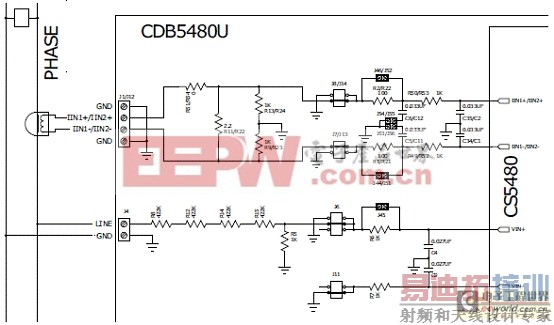

图9. CS5480评估板电路图:模拟输入
图10. CS5480评估板电路图:CS5480和插座

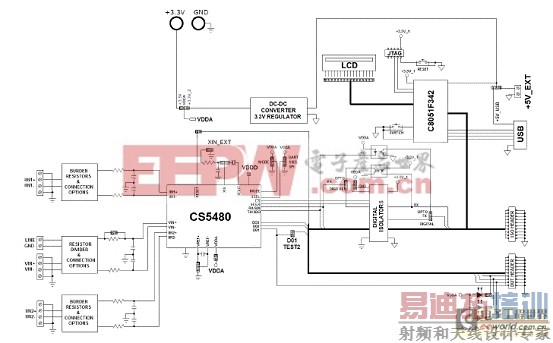

图11. CS5480评估板电路图:MCU和USB接口
CS5480评估板材料清单(BOM):

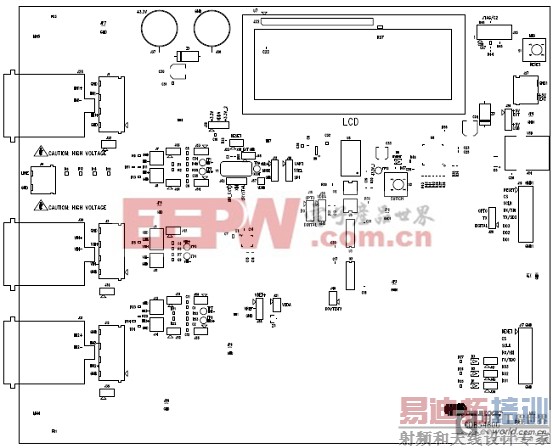

图12. CS5480评估板元件布局图:顶层

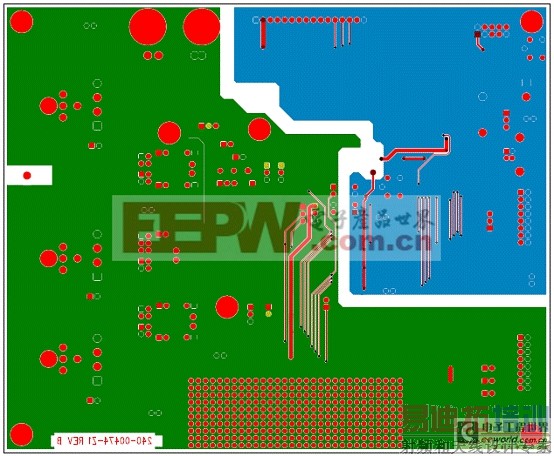

图13. CS5480评估板PCB布局图:顶层

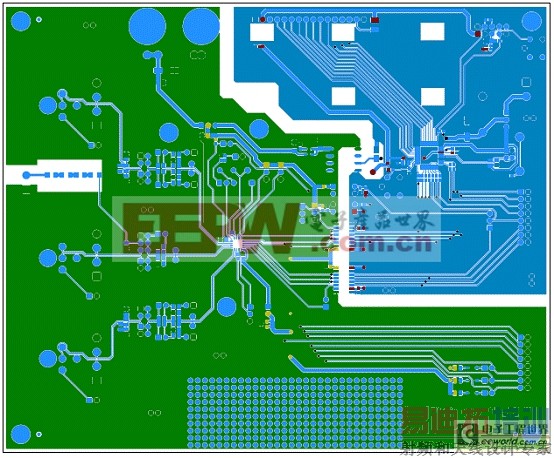

图14. CS5480评估板PCB布局图:底层
详情请见:
http://www.cirrus.com/en/pubs/proDatasheet/CS5480_F1_v2.pdf
和
http://www.cirrus.com/en/pubs/rdDatasheet/CDB5480U_DB3.pdf
The CS5480 incorporates independent, 4th order, Delta-Sigma analog-to-digital converters for every channel, reference circuitry, and the proven EXL signal processing core to provide active, reactive, and apparent energy measurement. In addition, RMS and power factor calculations are available.
Calculations are output via configurable energy pulse, or direct UART/SPI serial access to on-chip registers.
Instantaneous current, voltage, and power measurements are also available over the serial port. Multiple serial options are offered to allow customer flexibility. The SPI provides higher speed, and the 2-wire UART minimizes the cost of isolation where required.
Three configurable digital outputs provide energy pulses, zerocrossing, energy direction, and interrupt functions. Interrupts can be generated for a variety of conditions including voltage sag or swell, overcurrent, and more. On-chip register integrity is assured via checksum and write protection. The CS5480 is designed to interface to a variety of voltage and current sensors including shunt resistors, current transformers, and Rogowski coils.
On-chip functionality makes digital calibration simple and ultra- fast, minimizing the time required at the end of the customer production line. Performance across temperature is ensured with an on-chip voltage reference with very low drift.
A single 3.3V power supply is required, and power consumption is very low at 13mW. To minimize space requirements, the CS5480 is offered in a low-cost, 4mm x 4mm 24-pin QFN package.
CS5480主要特性:
Des cription
Superior Analog Performance with Ultra-low Noise Level High SNR
Energy Measurement Accuracy of 0.1% over 4000:1 Dynamic Range
Current RMS Measurement Accuracy of 0.1% over 1000:1 Dynamic Range
3 Independent 24-bit, 4th-order, Delta-Sigma Modulators for Voltage and Current Measurements
3 Configurable Digital Outputs for Energy Pulses, Zero-crossing, or Energy Direction
Supports Shunt Resistor, CT, Rogowski Coil Current Sensors
On-chip Measurements Calculations:
- Active, Reactive, and Apparent Power
- RMS Voltage and Current
- Power Factor and Line Frequency
- Instantaneous Voltage, Current, and Power
Overcurrent, Voltage Sag, and Voltage Swell Detection
Ultra-fast On-chip Digital Calibration
Internal Register Protection via Checksum and Write Protection
UART/SPI Serial Interface
On-chip Temperature Sensor
On-chip Voltage Reference (25ppm /℃ Typ.)
Single 3.3V Power Supply
Ultra-fine Phase Compensation
Low Power Consumption: 13mW
Power Supply Configurations GNDA = GNDD = 0V, VDDA = +3.3V
4mm x 4mm, 24-pin QFN Package
图1. CS5480方框图
图2. CS5480单相三线连接框图
图3. CS5480单相两线连接框图
CDB5480U评估板
The CDB5480U is an extensive tool designed to evaluate the functionality and performance of the Cirrus Logic CS5480 power/energy measurement device.
Multiple analog input connection options, configuration input filters, direct and isolated digital interfaces, multiple power supply options, an onboard programmable micro-controller, and visual LEDs with an LCD panel make the board a flexible and powerful customer development tool for various power/energy measurement applications.
The GUI software provides easy and complete access to the onboard CS5480 device. In addition, it includes the function of raw ADC data collection with time domain, frequency domain, and histogram analysis.
CDB5480U评估板主要特性:
Standalone Power Meter Application
Voltage and Current Interfaces
Low- and High-voltage Sensor Connections
Adaptable Sensor Filters Onboard
USB Communication with PC
UART/SPI Optically Isolated Communication
Onboard C8051F342 Microcontroller
Single Supply Operation USB or 5V
Onboard DC-DC Converter and Regulator
LCD Power Monitor Display
LabWindows /CVI GUI Software
– Full Register Setup Chip Control
– Simplified Register Access
– Quick Calibration Control
FFT Analysis
– Time Domain Analysis
– Noise Histogram Analysis
Voltage Reference Access
CDB5484/80/90 Evaluation Boards
图4. CDB5484/80/90评估板外形图
The CDB5484/80/90U boards are designed to evaluate the functionality and performance of the CS5484/80/90 energy measurement IC family. Shunt resistors, current transformers or Rogowski coils can be connected to the analog inputs. Intuitive GUI software provides easy and full access to the on-board CS5484/80/90 device and MCU. On-board LEDs and LCD displays enable stand alone operation for extended testing. These CDBs enable fast and easy preliminary evaluation of Cirrus Logic’s AFE products
图5. CDB5484/80/90评估板方框图
图6. CS5480并联传感器电表连接图
图7. CS5480电流变压器电表连接图
图8. CS5480 Rogowski线圈电表连接图
图9. CS5480评估板电路图:模拟输入
图10. CS5480评估板电路图:CS5480和插座
图11. CS5480评估板电路图:MCU和USB接口
CS5480评估板材料清单(BOM):
图12. CS5480评估板元件布局图:顶层
图13. CS5480评估板PCB布局图:顶层
图14. CS5480评估板PCB布局图:底层
详情请见:
http://www.cirrus.com/en/pubs/proDatasheet/CS5480_F1_v2.pdf
和
http://www.cirrus.com/en/pubs/rdDatasheet/CDB5480U_DB3.pdf
