TIStellarisLM3S2000混合动力汽车电池充电器解决方案

录入:edatop.com    点击:
TI公司的Level 3电动/混合动力汽车电池充电器采用数字功率控制器,通信器件,高性能驱动器以及接口器件. Level 3充电器包括从AC产生DC电压的带PFC的AC/DC转换器,DC/DC转换器,其核心器件是实时C2000系列MCU.本文介绍了EV/HEV充电器方框图以及EV/HEV充电器主控制器Stellaris LM3S2000 32位MCU主要特性,方框图, 开发板主要特性和方框图,电路图和PCB元件布局图.

Block Diagram (SBD) EV/HEV Charger Level 3 using TI’s Digital Power Controllers, communication devices, high performance drivers and interface devices.

Plug-in Hybrid Electric Vehicles (PHEV) and Battery Electric Vehicles (BEV) are two quickly emerging technologies which use powerful electric motors and high voltage battery packs as the propulsion and energy sources. Since batteries have a finite energy capacity, PHEV and BEV must be recharged on a periodic basis, typically by connecting to the power grid. When doing so, some form of communication (PLC, wireless, or RFID) might be used to manage the charging activity and aid in identifying and authenticating the vehicle or owner for billing purposes. Level 3 charging will play a key role in the public charging area in order to reduce the charging time and make it more feasible for the user to benefit from on-the-go charging.

The Level 3 charging system for these vehicles consists of an AC/DC converter to generate a DC voltage from the AC line. This incoming power needs to undergo power factor correction (PFC) to boost the power factor to meet regional regulatory standards. At the heart of the inverter is a real-time C2000 microcontroller. This controller is programmed to perform the control loops for all necessary power management functions, including AC/DC with PFC and DC/DC to create the necessary charge profile for the battery. The C2000 controller contains advanced peripherals such as high precision PWM outputs and ADCs, and is designed to read the ADC and adjust the PWM within a single clock cycle making real time control possible.

While the C2000 manages the power, the host controller will have the responsibility using the information provided by the communications modem and temperature sensing to drive a display and communicate directly with the on-board battery pack. The necessary information for the charge profile will be delivered to the power controller and important charging diagnostics and battery status will be sent to the display of the Level 3 charging system.

For safety reasons, isolation between the processor and the current and voltage is also required, as well as on the communications bus to the outside world. TI digital isolators have logic input and output buffers separated by TI’s silicon dioxide (SiO2) isolation barrier, providing 4kV of isolation. Used in conjunction with isolated power supplies, these devices block high voltage, isolate grounds, and prevent noise currents from entering the local ground and interfering with or damaging sensitive circuitry. High-performance analog parts are also available to provide critical system functions such as MOSFET drivers, sensor feedback, chip power supplies, and communication transceivers.

Communications on a simple system can be handled by a single processor. More elaborate systems with complex displays and online billing/reporting, such as Level 3 charging, may require a secondary controller. Implementing a Low Frequency NarrowBand PLC (LF NB PLC) solution provides an optimal fit in terms of bandwidth, power, and cost requirements. Operating in the narrowband domain (frequencies up to 500 kHz) ensures data integrity while minimizing system cost. In doing so, this standard would leverage the existing power line infrastructure and provide a cost-effective means of integrating intelligent monitoring and control into new automotive systems. Data rates can vary from 1.2 kbps up to hundreds of kbps based on the existing standards. TI’s PLC software is delivered in the plcSUITE library and enables developers to support several modulations and standards on one unique design. Developers can implement SFSK IEC61334, PRIME and G3 standards as well as FlexOFDM for custom OFDM implementation and is scalable for the incoming standards. For details, visit our PLC Applications Page. In addition, wireless communication and/or RFID may be needed as a secondary communication protocol and as a means of identification and billing.

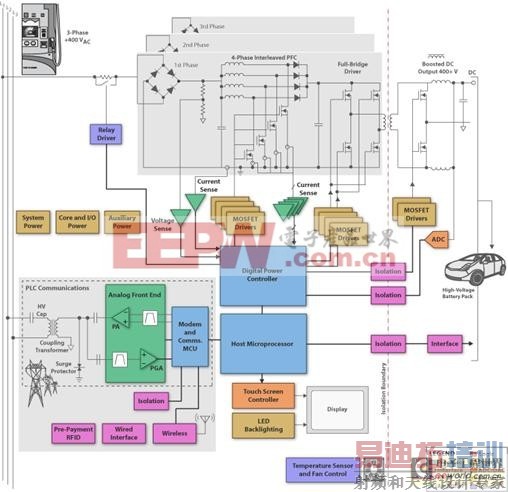

图1. EV/HEV充电器方框图

EV/HEV充电器主控制器Stellaris LM3S2000 32位MCU

The Stellaris LM3S2000 series, designed for Controller Area Network (CAN) applications, extends the Stellaris family with Bosch CAN networking technology, the golden standard in short-haul industrial networks. This introduction marks the first integration of CAN capabilities with the revolutionary ARM Cortex -M3 core. In addition, several LM3S2000 Series MCUs are offered with StellarisWare software features preprogrammed in memory-saving ROM.

Texas Instruments is the industry leader in bringing 32-bit capabilities and the full benefits of ARM Cortex -M3-based microcontrollers to the broadest reach of the microcontroller market. For current users of 8- and 16-bit MCUs, Stellaris with Cortex-M3 offers a direct path to the strongest ecosystem of development tools, software and knowledge in the industry. Designers who migrate to Stellaris benefit from great tools, small code footprint and outstanding performance. Even more important, designers can enter the ARM ecosystem with full confidence in a compatible roadmap from $1 to 1 GHz. For users of current 32-bit MCUs, the Stellaris family offers the industry’s first implementation of Cortex-M3 and the Thumb-2 instruction set. With blazingly-fast responsiveness, Thumb-2 technology combines both 16-bit and 32-bit instructions to deliver the best balance of code density and performance. Thumb-2 uses 26 percent less memory than pure 32-bit code to reduce system cost while delivering 25 percent better performance. The Texas Instruments Stellaris family of microcontrollers—the first ARM Cortex-M3 based controllers—brings high-performance 32-bit computing to cost-sensitive embedded microcontroller applications. These pioneering parts deliver customers 32-bit performance at a cost equivalent to legacy 8- and 16-bit devices, all in a package with a small footprint.

The LM3S2B93 microcontroller has the following features:

LM3S2B93 MCU主要特性:

■ ARM Cortex-M3 Processor Core

– 80-MHz operation; 100 DMIPS performance

– ARM Cortex SysTick Timer

– Nested Vectored Interrupt Controller (NVIC)

■ On-Chip Memory

– 256 KB single-cycle Flash memory up to 50 MHz; a prefetch buffer improves performance above 50 MHz

– 96 KB single-cycle SRAM

– Internal ROM loaded with StellarisWare software:

Stellaris Peripheral Driver Library

Stellaris Boot Loader

Advanced Encryption Standard (AES) cryptography tables

Cyclic Redundancy Check (CRC) error detection functionality

■ External Peripheral Interface (EPI)

– 8/16/32-bit dedicated parallel bus for external peripherals

– Supports SDRAM, SRAM/Flash memory, FPGAs, CPLDs

■ Advanced Serial Integration

– Two CAN 2.0 A/B controllers

– Three UARTs with IrDA and ISO 7816 support (one UART with modem flow control and status)

– Two I2C modules

– Two Synchronous Serial Interface modules (SSI)

– Integrated Interchip Sound (I2S) module

■ System Integration

– Direct Memory Access Controller (DMA)

– System control and clocks including on-chip precision 16-MHz oscillator

– Four 32-bit timers (up to eight 16-bit)

– Eight Capture Compare PWM pins (CCP)

– Lower-power battery-backed hibernation module

– Real-Time Clock in Hibernation module

– Two Watchdog Timers

One timer runs off the main oscillator

One timer runs off the precision internal oscillator

– Up to 67 GPIOs, depending on configuration

Highly flexible pin muxing allows use as GPIO or one of several peripheral functions

Independently configurable to 2, 4 or 8 mA drive capability

Up to 4 GPIOs can have 18 mA drive capability

■ Advanced Motion Control

– Eight advanced PWM outputs for motion and energy applications

– Four fault inputs to promote low-latency shutdown

– Two Quadrature Encoder Inputs (QEI)

■ Analog

– Two 10-bit Analog-to-Digital Converters (ADC) with 16 analog input channels and a sample rate of one million samples/second

– Three analog comparators

– 16 digital comparators

– On-chip voltage regulator

■ JTAG and ARM Serial Wire Debug (SWD)

■ 100-pin LQFP package

■ 108-ball BGA package

■ Industrial (-40℃ to 85℃) Temperature Range

The LM3S2B93 microcontroller is targeted for industrial applications, including remote monitoring, electronic point-of-sale machines, test and measurement equipment, network appliances and switches, factory automation, HVAC and building control, gaming equipment, motion control, transportation, and fire and security.

For applications requiring extreme cons [p] ervation of power, the LM3S2B93 microcontroller features a battery-backed Hibernation module to efficiently power down the LM3S2B93 to a low-power state during extended periods of inactivity. With a power-up/power-down sequencer, a continuous time counter (RTC), a pair of match registers, an APB interface to the system bus, and dedicated non-volatile memory, the Hibernation module positions the LM3S2B93 microcontroller perfectly for battery applications.

In addition, the LM3S2B93 microcontroller offers the advantages of ARM’s widely available development tools, System-on-Chip (SoC) infrastructure IP applications, and a large user community.

Additionally, the microcontroller uses ARM’s Thumb -compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the LM3S2B93 microcontroller is code-compatible to all members of the extensive Stellaris family; providing flexibility to fit our customers’ precise needs.

Texas Instruments offers a complete solution to get to market quickly, with evaluation and
development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network. See “Ordering and Contact Information” on page 1180 for ordering information for Stellaris family devices.

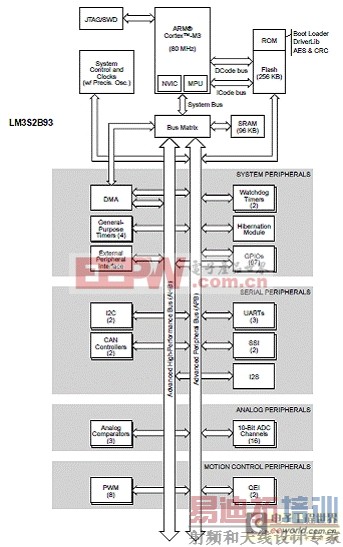

图2. LM3S2B93 MCU方框图

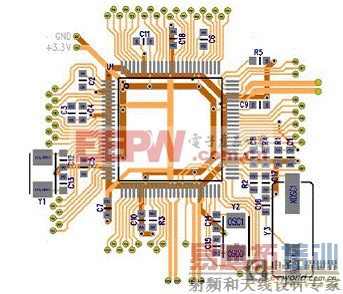

图3. LM3S2B93 MCU最基本连接电路图

其中各元件如下:

Pull-up resistors might also be needed on JTAG signals if these pins are not driven externally. VDD, VDDC and GND connections are shown as thick PCB traces for clarity. Normally these connections would be extended as copper pours.

R1 Reset input pull-up resistor

C1 Reset input filter capacitor

C3 LDO regulator filter capacitor

C2, C4-C6, C11 VDD Decoupling capacitors

C7, C18 VDDC Decoupling capacitors

C12-C17 Crystal load capacitors

Y1 Ethernet Crystal

Y2 Main Oscillator Crystal

Y3 Hibernate Module Crystal

R3 Ethernet RBIAS resistor

R2 Hibernate Oscillator resistor

R5 USB RBIAS

R4 MDIO Pull-up resistor

Stellaris LM3S9B96开发板

Stellaris LM3S9B96 Development Kit

The Stellaris LM3S9B96 Development Board provides a platform for developing systems around the advanced capabilities of the LM3S9B96 ARM Cortex -M3-based microcontroller.

The LM3S9B96 is a member of the Stellaris Tempest-class microcontroller family. Tempest-class devices include capabilities such as 80 MHz clock speeds, an External Peripheral Interface (EPI) and Audio I2S interfaces. In addition to new hardware to support these features, the DK-LM3S9B96 board includes a rich set of peripherals found on other Stellaris boards.

The development board includes an on-board in-circuit debug interface (ICDI) that supports both JTAG and SWD debugging. A standard ARM 20-pin debug header supports an array of debugging solutions.

The Stellaris LM3S9B96 Development Kit accelerates development of Tempest-class microcontrollers. The kit also includes extensive example applications and complete source code.

Stellaris LM3S9B96开发板主要特性:

The Stellaris LM3S9B96 Development Board includes the following features.
