PADS2007添加封装的问题
录入:edatop.com 点击:
第一次用 请教下!
为什么我在logic里面添加了元件封装,导出网表的时候报错!说是很多封装找不到!我在每个元件属性卡里面都设置了封装的呀!
怎么会找不到封装了!Part Type RES-0805 not found in Library - not able to check following parts:
R4 R1 R2 R3 R8 R5 R6 R9 R7.
Part Type CACTI_Z32UF_LQFP64/QFN64 not found in Library - not able to check following parts:
U1.
Part Type USB_CON not found in Library - not able to check following parts:
J1.
PCB Decal TC-A not found in Library - not able to check following parts of Part Type CAP0805:
C3.
Part Type NAND_FLASH not found in Library - not able to check following parts:
U2.
Part Type AIC1722 not found in Library - not able to check following parts:
U5.
Part Type SIP2 not found in Library - not able to check following parts:
J2.

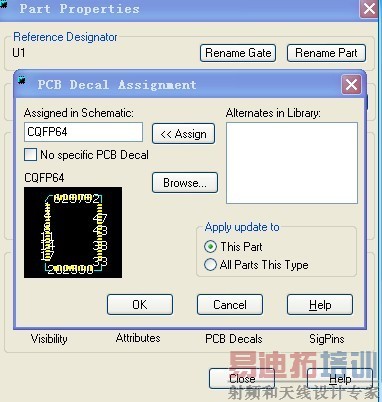

每个元件我都在这里设置封装!全是PADS现成的库里的封装!
为什么我在logic里面添加了元件封装,导出网表的时候报错!说是很多封装找不到!我在每个元件属性卡里面都设置了封装的呀!
怎么会找不到封装了!Part Type RES-0805 not found in Library - not able to check following parts:
R4 R1 R2 R3 R8 R5 R6 R9 R7.
Part Type CACTI_Z32UF_LQFP64/QFN64 not found in Library - not able to check following parts:
U1.
Part Type USB_CON not found in Library - not able to check following parts:
J1.
PCB Decal TC-A not found in Library - not able to check following parts of Part Type CAP0805:
C3.
Part Type NAND_FLASH not found in Library - not able to check following parts:
U2.
Part Type AIC1722 not found in Library - not able to check following parts:
U5.
Part Type SIP2 not found in Library - not able to check following parts:
J2.
每个元件我都在这里设置封装!全是PADS现成的库里的封装!
