求助添加过孔的时候出现了问题
录入:edatop.com 点击:

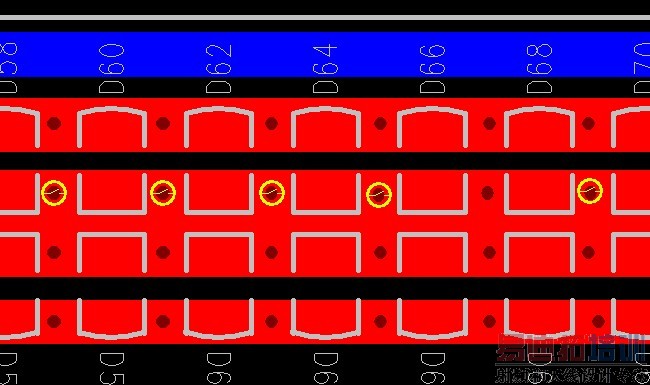

这里有谁用pads layout的,我首先用一个铜皮把net包围,然后选中net然后右键菜单add via添加了一些过孔在net的周围,最后在pour manage里面flood all,所有的过孔我都选择是flood over,然后再virify design里面检查connectivity,结果出现一大堆错误,都是关于via的,提示Isolated subnets for: net名,请问是怎么回事?
这是错误信息:
Isolated subnets for: V+
*** subnet # 1
VIA(590.55,472.44 L1)
*** subnet # 2
VIA(748.03,472.44 L1)
*** subnet # 3
VIA(3503.94,472.44 L1)
*** subnet # 4
VIA(3307.09,472.44 L1)
*** subnet # 5
VIA(3090.55,472.44 L1)
*** subnet # 6
VIA(2874.02,472.44 L1)
*** subnet # 7
VIA(2657.48,472.44 L1)
*** subnet # 8
VIA(2440.94,472.44 L1)
*** subnet # 9
VIA(2244.09,472.44 L1)
*** subnet # 10
VIA(2027.56,472.44 L1)
这是错误信息:
Isolated subnets for: V+
*** subnet # 1
VIA(590.55,472.44 L1)
*** subnet # 2
VIA(748.03,472.44 L1)
*** subnet # 3
VIA(3503.94,472.44 L1)
*** subnet # 4
VIA(3307.09,472.44 L1)
*** subnet # 5
VIA(3090.55,472.44 L1)
*** subnet # 6
VIA(2874.02,472.44 L1)
*** subnet # 7
VIA(2657.48,472.44 L1)
*** subnet # 8
VIA(2440.94,472.44 L1)
*** subnet # 9
VIA(2244.09,472.44 L1)
*** subnet # 10
VIA(2027.56,472.44 L1)
求高人解答,这个问题困扰了我一天了
你用的应该是2007,可选择所有过孔,属性,然后把stitching 前面的钩取消
楼上正解........
