FreescaleMK30X256单相电表参考设计方案
录入：edatop.com 点击：
Freescale公司的MK30X256是集成了段式LCD控制器的低功耗基于100MHz ARM Cortex
-M4内核的MCU,支持多达320段LCD.K30系列采用创新的90nm薄膜存储(TFS)闪存技术和FlexMemory (EEPROM),提供一流的低功耗和混合信号集成, 器件提供1.25 Dhrystone MIPS per MHz的性能,工作电压和闪存写入电压均为1.71- 3.6 V,多达16路DMA,主要用在自动调温器,智能仪表,心率监视仪和血气分析仪.本文介绍了K30 MCU主要特性和优势, 方框图以及MQXTM + ZigBee
MK30X256单相电表参考设计主要特性, 单相电表方框图和电表主要指标.
Kinetis K30 Family Low-power MCUs with segment LCD
The Kinetis MCU portfolio consists of multiple pin-, peripheral- and software-compatible MCU families based on the ARM Cortex -M4 core.
Families are built from innovative 90 nm thinfilm storage (TFS) flash technology with unique FlexMemory (EEPROM) capability, and offer industry-leading low power and mixed signal analog integration.
The K30 MCU family is pin-, peripheral- and software-compatible with the K10 MCU family and adds a flexible low-power segment LCD controller with support for up to 320 segments. Devices start from 64 KB of flash in 64 QFN packages extending up to 512 KB in a 144 MAPBGA package with a rich suite of analog, communication, timing and control peripherals.
K30 MCU主要特性:
Operating Characteristics
– Voltage range: 1.71 to 3.6 V
– Flash write voltage range: 1.71 to 3.6 V
– Temperature range (ambient): -40 to 105°C
Performance Up to 100 MHz ARM Cortex-M4 core with DSP instructions delivering 1.25 Dhrystone MIPS per MHz
Memories and memory interfaces
– Up to 512 KB program flash memory on non- FlexMemory devices
– Up to 128 KB RAM
– Serial programming interface (EzPort)
Clocks
– 3 to 32 MHz crystal oscillator
– 32 kHz crystal oscillator
– Multi-purpose clock generator
System peripherals
– 10 low-power modes to provide power optimization based on application requirements
– Memory protection unit with multi-master protection
– 16-channel DMA controller, supporting up to 64 request sources
– External watchdog monitor
– Software watchdog
– Low-leakage wakeup unit
Security and integrity modules
– Hardware CRC module to support fast cyclic redundancy checks
– 128-bit unique identification (ID) number per chip
Human-machine interface
Segment LCD controller supporting up to 40 frontplanes and 8 backplanes, or 44 frontplanes and 4 backplanes
– Low-power hardware touch sensor interface (TSI)
– General-purpose input/output
Analog modules
– Two 16-bit SAR ADCs
– Programmable gain amplifier (PGA) (up to x64) integrated into each ADC
– 12-bit DAC
– Three analog comparators (CMP) containing a 6-bit DAC and programmable reference input
– Voltage reference
Timers
– Programmable delay block
– Eight-channel motor control/general purpose/PWM timer
– Two 2-channel quadrature decoder/general purpose timers
– Periodic interrupt timers
– 16-bit low-power timer
– Carrier modulator transmitter
– Real-time clock
Communication interfaces
– Controller Area Network (CAN) module
– Two SPI modules
– Two I2C modules
– Four UART modules
– Secure Digital host controller (SDHC) I2S module

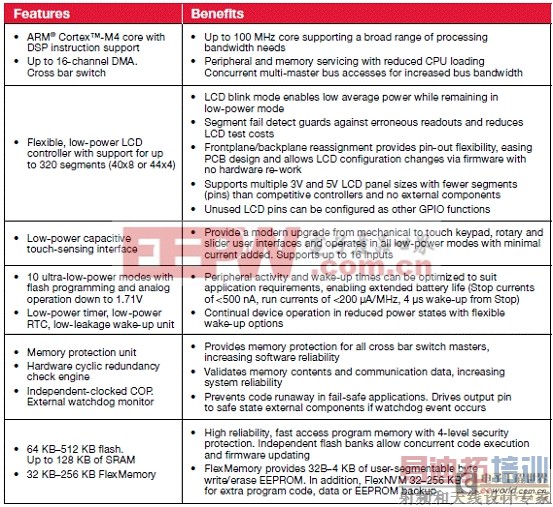

K30 MCU特性和优势:
K30 MCU典型应用:
Thermostats
Smart meters
Heart rate monitors
Blood gas analyzer

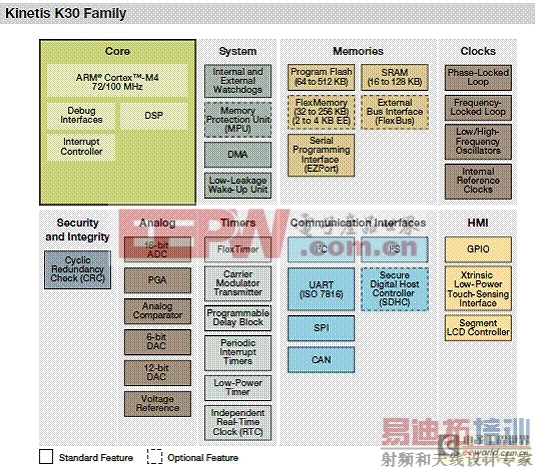

图1.K30 MCU系列方框图
MQXTM + ZigBee MK30X256单相电表参考设计
MQX-Based Kinetis (MK30X256) Single-Phase Electricity Meter Reference Design
The reference design provides a highperformance solution for power measurement in single phase two wire installations. The target market is residential metering. The reference design has the ability to connect to a ZigBee network through an internal Daughter Card.
Hence, it can easily become part of the Smart Grid network. Firmware for this reference design is based on the MQXTM real time operating system - designed for usage in advanced markets. All standard metering values are displayed on the built-in LCD. The user can choose one of these values by clicking the built-in button. For remote data collecting, there are several types of communication interfaces.
MK30X256单相电表参考设计主要特性:
5(60)A current range, nominal current is 5A, peak current is 60A
85V...264V voltage range
47Hz...63Hz frequency range
4-quadrant measurement
Active and reactive energy accuracy:IEC50470-3 Class B, 1%
Meter constants (imp/kWh, imp/kVArh):500, 1000, 2000, 5000, 10000
Line frequency measurement (for precision zero-cross detection)
Cost-effective shunt resistor sensing circuit implementation
Cost-effective bill of materials (BOM)
Low-power modes effectively implemented, including the use of the built-in RTC (Libattery backed-up)
LCD display, 4x31 segments including charge pump
Values shown on the LCD: V,A,W,VAr,VA, kWh, kVArh, cos j, Hz, time, date
OBIS identifier on the LCD
Tamper detection via two tamper buttons or magnetometer (event is stored in memory)
Built-in user push-button
LED pulse outputs (kWh, kVArh)
Optically-isolated open-collector output
IEC1107 infrared hardware interface
Optically isolated RS232 interface
2.4 GHz RF 1322x interface (I2C Daughter Card) for connection to a ZigBee network
MQXTM based for advanced markets
Multiple advanced metering algorithms (FFT, filter-based method)
Product Features and Specifications
Design Reference Manual (DRM122)
AN4255 - FFT-based algorithm for metering applications
Quick Start for MK30XEMETER
MQX Reference Manual and MQX User’s Guide
1322x Low-Power Node Reference Manual
Device development tools / demo kits:
MK30XEMETER_xxxx
Device documentation: MK30X256
图2.MK30X256单相电表参考设计外形图

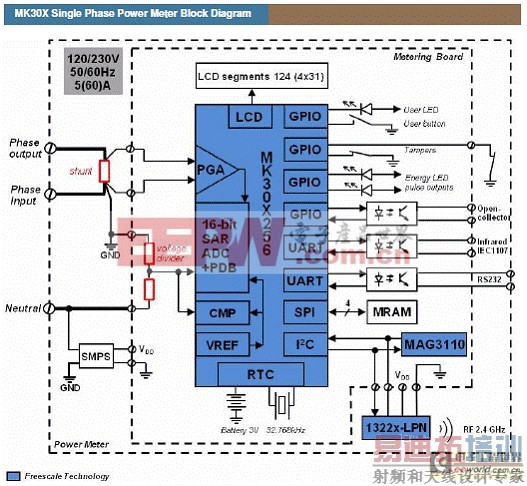

图3.MK30X256单相电表方框图
电表主要指标:
Kinetis K30 Family Low-power MCUs with segment LCD
The Kinetis MCU portfolio consists of multiple pin-, peripheral- and software-compatible MCU families based on the ARM Cortex -M4 core.
Families are built from innovative 90 nm thinfilm storage (TFS) flash technology with unique FlexMemory (EEPROM) capability, and offer industry-leading low power and mixed signal analog integration.
The K30 MCU family is pin-, peripheral- and software-compatible with the K10 MCU family and adds a flexible low-power segment LCD controller with support for up to 320 segments. Devices start from 64 KB of flash in 64 QFN packages extending up to 512 KB in a 144 MAPBGA package with a rich suite of analog, communication, timing and control peripherals.
K30 MCU主要特性:
Operating Characteristics
– Voltage range: 1.71 to 3.6 V
– Flash write voltage range: 1.71 to 3.6 V
– Temperature range (ambient): -40 to 105°C
Performance Up to 100 MHz ARM Cortex-M4 core with DSP instructions delivering 1.25 Dhrystone MIPS per MHz
Memories and memory interfaces
– Up to 512 KB program flash memory on non- FlexMemory devices
– Up to 128 KB RAM
– Serial programming interface (EzPort)
Clocks
– 3 to 32 MHz crystal oscillator
– 32 kHz crystal oscillator
– Multi-purpose clock generator
System peripherals
– 10 low-power modes to provide power optimization based on application requirements
– Memory protection unit with multi-master protection
– 16-channel DMA controller, supporting up to 64 request sources
– External watchdog monitor
– Software watchdog
– Low-leakage wakeup unit
Security and integrity modules
– Hardware CRC module to support fast cyclic redundancy checks
– 128-bit unique identification (ID) number per chip
Human-machine interface
Segment LCD controller supporting up to 40 frontplanes and 8 backplanes, or 44 frontplanes and 4 backplanes
– Low-power hardware touch sensor interface (TSI)
– General-purpose input/output
Analog modules
– Two 16-bit SAR ADCs
– Programmable gain amplifier (PGA) (up to x64) integrated into each ADC
– 12-bit DAC
– Three analog comparators (CMP) containing a 6-bit DAC and programmable reference input
– Voltage reference
Timers
– Programmable delay block
– Eight-channel motor control/general purpose/PWM timer
– Two 2-channel quadrature decoder/general purpose timers
– Periodic interrupt timers
– 16-bit low-power timer
– Carrier modulator transmitter
– Real-time clock
Communication interfaces
– Controller Area Network (CAN) module
– Two SPI modules
– Two I2C modules
– Four UART modules
– Secure Digital host controller (SDHC) I2S module
K30 MCU特性和优势:
K30 MCU典型应用:
Thermostats
Smart meters
Heart rate monitors
Blood gas analyzer
图1.K30 MCU系列方框图
MQXTM + ZigBee MK30X256单相电表参考设计
MQX-Based Kinetis (MK30X256) Single-Phase Electricity Meter Reference Design
The reference design provides a highperformance solution for power measurement in single phase two wire installations. The target market is residential metering. The reference design has the ability to connect to a ZigBee network through an internal Daughter Card.
Hence, it can easily become part of the Smart Grid network. Firmware for this reference design is based on the MQXTM real time operating system - designed for usage in advanced markets. All standard metering values are displayed on the built-in LCD. The user can choose one of these values by clicking the built-in button. For remote data collecting, there are several types of communication interfaces.
MK30X256单相电表参考设计主要特性:
5(60)A current range, nominal current is 5A, peak current is 60A
85V...264V voltage range
47Hz...63Hz frequency range
4-quadrant measurement
Active and reactive energy accuracy:IEC50470-3 Class B, 1%
Meter constants (imp/kWh, imp/kVArh):500, 1000, 2000, 5000, 10000
Line frequency measurement (for precision zero-cross detection)
Cost-effective shunt resistor sensing circuit implementation
Cost-effective bill of materials (BOM)
Low-power modes effectively implemented, including the use of the built-in RTC (Libattery backed-up)
LCD display, 4x31 segments including charge pump
Values shown on the LCD: V,A,W,VAr,VA, kWh, kVArh, cos j, Hz, time, date
OBIS identifier on the LCD
Tamper detection via two tamper buttons or magnetometer (event is stored in memory)
Built-in user push-button
LED pulse outputs (kWh, kVArh)
Optically-isolated open-collector output
IEC1107 infrared hardware interface
Optically isolated RS232 interface
2.4 GHz RF 1322x interface (I2C Daughter Card) for connection to a ZigBee network
MQXTM based for advanced markets
Multiple advanced metering algorithms (FFT, filter-based method)
Product Features and Specifications
Design Reference Manual (DRM122)
AN4255 - FFT-based algorithm for metering applications
Quick Start for MK30XEMETER
MQX Reference Manual and MQX User’s Guide
1322x Low-Power Node Reference Manual
Device development tools / demo kits:
MK30XEMETER_xxxx
Device documentation: MK30X256

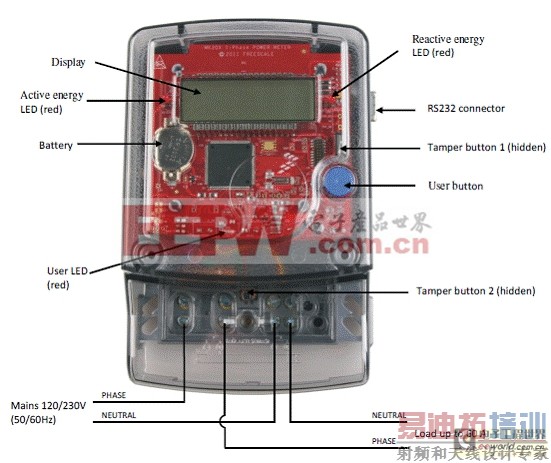

图2.MK30X256单相电表参考设计外形图
图3.MK30X256单相电表方框图

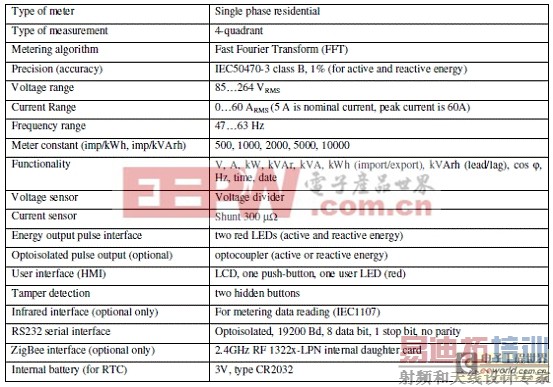

电表主要指标:
