CAT6500自动电源选择开关简述

简述

CAT6500 is an automatic power switch designed to select between two power sources and direct that power to a load for battery charging or system power.

CAT6500’s power inputs withstand voltages of up to 18V and protect the downstream load from voltages exceeding7V. In the event of a polarity reversal at either input CAT6500’s internal power switches will shut off to prevent discharge of the system’s internal power source.

Low resistance power switches handle currents in excess of 3 A and when OFF block current flow in both directions. CAT6500 can operate in reverse mode in which internal system power is be directed to either of the power input ports for powering an external device, such as a USB On−The−Go appliance.

特性

Autonomous Switching between 2 Power Sources Withstands +18 V to −5 V on Either Power Input 80 m_ Switches (typ.) for Low Power Loss Reverse−Mode for Powering External Devices Over Voltage Protection of Downstream Load Compatible with USB−OTG Devices 2−Lead WQFN 4.4 mm x 4.4 mm Package This Device is Pb−Free, Halogen Free/BFR Free and is RoHS Compliant

典型应用

Mobile Phones PDAs Personal Navigation Devices

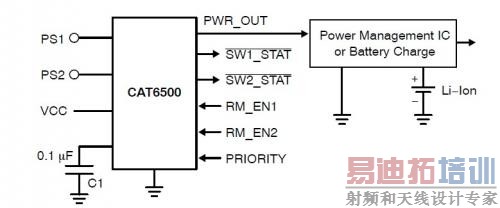

Figure 1. Typical Application Circuit
