Si2155：新一代硅调谐器详细介绍

Si2155基于SiliconLabs公司专利技术的电视调谐器架构，提供超清晰模拟和数字广播电视接收。通过提供卓越的线性特性和完全集成的高品质跟踪滤波电感器，SiliconLabs公司新一代电视调谐器具有业界最高的抗干扰能力，可以在城区接收最多的模拟和数字电视频道。Si2155集成电路的RF前端也提供了无与伦比的灵敏度性能和一致的调谐特性，即使在远离发射台的乡村区域也能做到这一点。

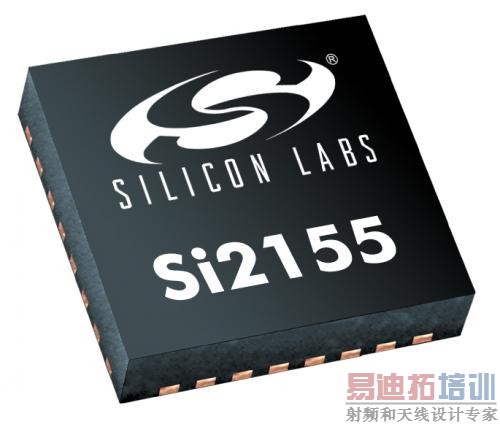

Si2155电视调谐器具有紧凑的5mm×5mmQFN封装，通过最小化电路板尺寸和器件数量、支持低成本的外部器件，Si2155电视调谐器使电视制造商有效降低系统成本。Si2155IC集成了完整的从RF输入到IF输出的信号路径。与传统分立式基于MOPLL的调谐器方案相比，基于Si2155的设计减少了超过100个的外围器件，包括低噪声放大器（LNA）、声表面波（SAW）滤波器，也不像其他硅调谐器需要使用跟踪滤波电感器，这使得混合调谐器的设计最简便、BOM成本最低。Si2155也支持采用低成本的外部器件来实现具有成本效益的板上调谐器设计方案。

描述：

The Si2155 integrates a complete hybrid TV tuner supporting all worldwide terrestrial and cable TV standards. Leveraging Silicon Labs’ field proven digital low-IF architecture, the Si2155 maintains the unmatched performance and design simplicity of the Si2153 while further reducing footprint size and bill of materials cost. No external LNAs, tracking filters, wirewound inductors, or SAW filters are used.

Compared with competing silicon tuners and discrete MOPLL-based tuners, the Si2155 delivers superior picture quality and a higher number of received stations in crowded and near/far real-world reception conditions. The high linearity and low noise RF front-end delivers superior blocking performance and higher sensitivity in the presence of strong undesired channels and interference.

The Si2155 integrates the complete signal path from antenna input to IF outputs for both analog and digital transmission standards. Compared to traditional discrete MOPLL-based tuners, the Si2155 eliminates hundreds of external components including external LNAs, tracking filter varactors and inductors (unlike competing silicon tuners), and SAW filters, resulting in the simplest, lowest-cost BOM for a hybrid TV tuner.

Interfacing the Si2155 seamlessly with the Si2165 DVB-T/C demodulator creates a complete terrestrial and cable DVB-T/C receiver plus PAL/SECAM tuner.

特性：

Worldwide hybrid TV tuner Analog TV: NTSC, PAL/SECAM Digital TV: ATSC/QAM, DVB-T/T2/C, ISDB-T/C, DTMB 42-870 MHz frequency range Compliance to A/74, NorDig, D-Book, C-Book, ARIB, EN55020, OpenCable™ specifications Best-in-class real-world reception Exceeds discrete MOPLL-based tuners Highly integrated, lowest BOM No SAW filters or wirewound inductors required Integrated LNAs and complete tracking filters No alignment, tuning or calibration required Digital low-IF architecture Integrated channel select filters Flexible output interface ALIF to analog TV demodulator or SoC DLIF to digital TV demodulator or SoC 3.3 and 1.8 V power supplies Standard CMOS process technology 5 x 5 mm, 32-pin QFN package RoHS compliant

应用：

Hybrid ½-NIM iDTV (Integrated Digital TV) Digital terrestrial and cable STB Hybrid PVR and DVD recorder

电气规范：

Parameter	Test Condition	Typ	Unit
Supply Voltage		1.8 and 3.3	V
Total Power Consumption	VHF bands | UHF bands	0.98 |	W
RF Input Frequency Range		42 to 870	MHz
Noise Figure*	max gain	4.0	dB
Wideband IIP3*	N±18,±36; max RF gain	+18	dBm
Inband IIP3*	N±1,±2; max RF gain	–7	dBm
LO Phase Noise at 860 MHz	125 Hz | 250 Hz | 1 kHz | 10 kHz | 100 kHz	–83 | –91 | –96 | –95 | –104	dBc/Hz
LO Integrated Phase Noise	DSB: 125 Hz to 4 MHz	0.4	deg. rms
at 860 MHz		(–43)	(dBc)
Adjacent Channel Attenuation	N±1; RF input* to DLIF output	80	dB
DLIF Output Center Frequency	channel BW = 6 MHz | 7 MHz | 8 MHz	4 to 7	MHz
DLIF Differential Output Voltage Swing	programmable	0.5 to2.0	Vppd
ALIF Output Center Frequency	channel BW = 6 MHz | 7 MHz | 8 MHz	4 to 7 | 4.5 to 6.5	MHz
Analog IF Spurious Distortion	S=P-6 dB	–76	dBc
ALIF Differential Output Voltage Swing	programmable	0.5 to 2.0	Vppd

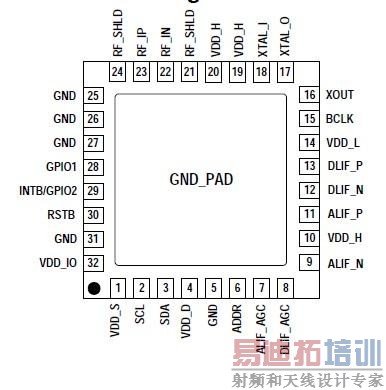

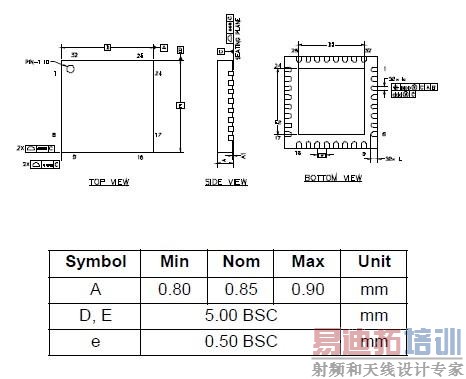

引脚图和封装：
