基于POWR1220AT8设计的12V热插拔技术
录入：edatop.com 点击：
ispPAC-POWR1220AT8集成了在系统可编程逻辑和在系统可编程模拟功能,是通用的电源监视器,顺序和余量控制器,它提供12个单独的模拟输入通道,用来监视多达12个电源测试点. POWR1220AT8提供和IPMC标准的命令接口,能把板上的DC/DC转换器转换成精密的数控电源.本文介绍了ispPAC-POWR1220AT8主要特性,方框图,以及应用方框图, 评估板外形图,采用ispPAC-POWR1220AT8的12V热插拔控制器参考设计电路图.
ispPAC-POWR1220AT8典型应用:
The Power Manager II POWR1220AT8 provides a standard command interface to the IPMC while performing FRU specific payload power management functions using the on-chip CPLD. The POWR1220AT8 also converts all on board DC-DC converters into accurate digitally controlled supplies.

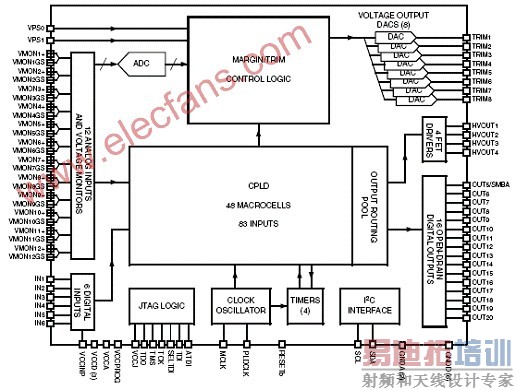

图1.ispPAC-POWR1220AT8方框图

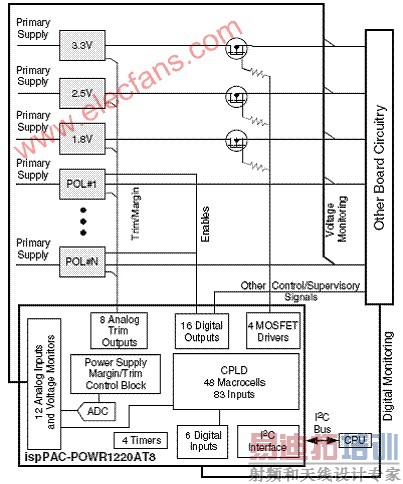

图2.ispPAC-POWR1220AT8应用方框图

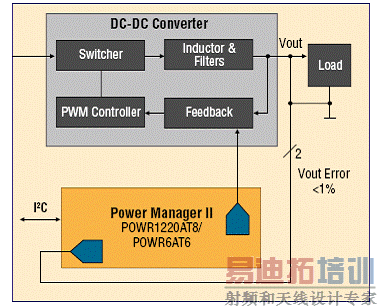

图3.ispPAC-POWR1220AT8提高DC/DC转换器精度的应用方框图
The PAC-POWR1220AT8 evaluation board allows the designer to quickly configure and evaluate the ispPAC-POWR1220AT8 device on a fully assembled printed-circuit board. The four-layer board supports a 100-pin TQFP package, pads for user I/O, a JTAG programming cable connector, and a connector for the device’s I2C interface. JTAG programming signals can be generated by using an ispDOWNLOAD® programming cable connected between the evaluation board and a PC. Both analog and digital features of the ispPACPOWR1220AT8 device can be easily configured using PAC-Designer® software.
The PAC-POWR1220AT8 evaluation board is available in a Development Kit that includes:
PAC-POWR1220AT8 Evaluation Board
ispDOWNLOAD Cable
AC Adapter (International plugs)
User Documentation

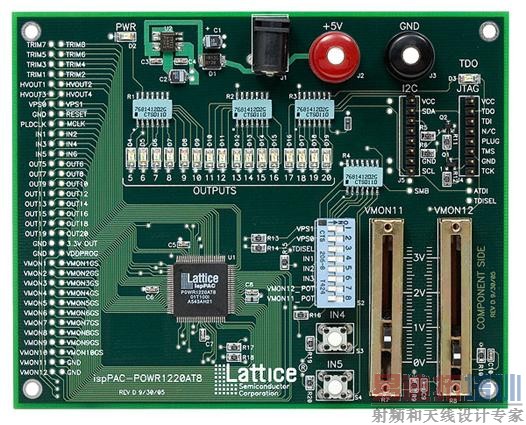

图4.ispPAC-POWR1220AT8评估板外形图
采用ispPAC-POWR1220AT8的12V热插拔控制器参考设计
A hot swap controller is used to limit the inrush current when a circuit board is plugged into a powered backplane.
In addition, a hot swap controller may offer some or all of the following features: over-current protection (electronic circuit breaker), over-voltage protection, and under-voltage protection. Hot swap controllers are also required to isolate the board from the backplane which is useful in troubleshooting, maintenance, and upgrade activities. The power-down request may come from the backplane (remote) or an on-board switch (manual).
This document describes how a Lattice Power Manager II ispPAC®-POWR1220AT8 can be used to implement the functions required for 12V hot swap applications. This reference design is targeted to operate on the Power Manager Hercules Development Kit (PAC-POWR1220AT8-HS-EVN – Standard or PAC-POWR1220AT8-HA-EVN –Advanced). [p]
12V热插拔控制器主要特性:
• Programmable inrush current limit (default 2 amps)
• Programmable de-bounce delay (default 30ms)
• Programmable over-current limit (default 15 amps)
• Over and under-voltage limits both at source and load
• Short circuit protection
• Programmable SOA drive of N-channel MOSFET
• Power supply OR’ing

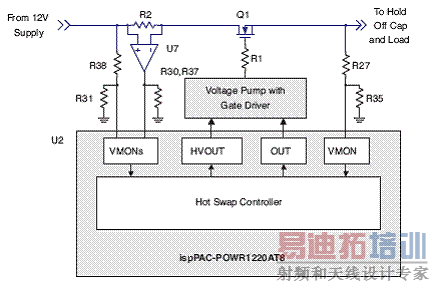

图5. 12V热插拔控制器框图
图6. ispPAC-POWR1220AT8电源管理电路图

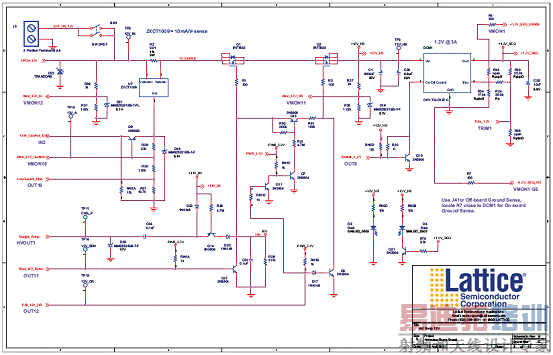

图7. 12V热插拔控制器电路图
