Mobile Band Config App

小弟寫了一個關於RF手機用，BAND跟CHANNEL的APP
因為感覺目前GOOGLE PLAY上面的APP沒有自己想要的

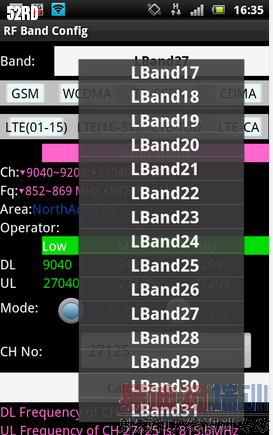

名稱叫RF BAND CONFIG



所以自己截長補短的作一些整合
大致說明如下
For RF engineer to design circuit easily with referred list including High,Mid and Low channel.
##Support GSM four band, ALL WCDMA(129), ALL TDSCDMA(A-F), LTE(1-31),LTE-TDD(33-44).
##Each band has a detailed Channel and Frequency (UP/Down) range.
##With used area in LTE and LTE-TDD band for distinguishing fastly.
##Converter Channel to Frequency想請板上大大批評指教若有違板規會立即刪除

.apc上传一下？

好东西啊，对RF工程师貌似比较有用呢，建议做好后分享一下。

想請問一下各位，google商店，搜不到嗎??
記得有放上去的

ge.tt/3p8HUNK1/v/0
play.google.com/store/apps/details?id=kyle.example.converter
附上兩個http連結

能不能直接分享下apk呀

兄弟们，我下来试了下，还可以大家试下看看

楼主，能解释下TD-scdma里面的low up什么以上

UMTS-TDD technology is standardized for usage in the following bands:
Operating band Frequency band Frequency (MHz) UARFCN channel number
A (lower) IMT 1900 – 1920 9504 – 9596
A (upper) IMT 2010 – 2025 10054 – 10121
B (lower) PCS 1850 – 1910 9254 – 9546
B (upper) PCS 1930 – 1990 9654 – 9946
C PCS (Duplex-Gap) 1910 – 1930 9554 – 9646
D IMT-E 2570 – 2620 12854 – 13096
E 2300 – 2400 11504 – 11996
F 1880 – 1920 9404 – 9596

楼主能分享下APP吗，有的话请发到我邮箱，谢谢。caojian_vip@126.com
