求助 虚心请教ADS Momentum 的一个问题
在最后的模拟时 显示完成了 [52RD.com]
但一直没有结果 一直是...writing dataset files[52RD.com]
不知道问什么 [52RD.com]

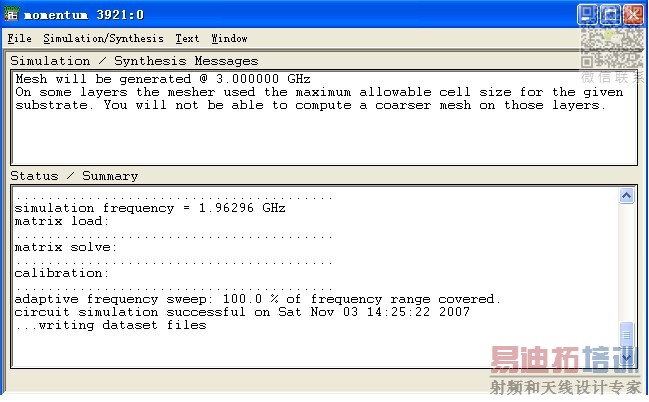

附件 是 simulation messages[52RD.com]
谢谢 [52RD.com
根据提供的simulation/synthesis messages,网格超过最大容许的单元尺寸,更改相关的mesh设置看看.
我重新弄了一下 还是这样
Simulation / Synthesis Messages
Mesh will be generated @ 10.000000 GHz
Status / Summary
------------ Momentum Simulation ---------------
Version: Momentum 4.80 (*) 2003A.300 Apr 9 2003
Simulation mode: microwave
Design: 123
start compute mesh on Sun Nov 04 12:47:02 2007
mesh computation successful on Sun Nov 04 12:47:03 2007
start simulate circuit on Sun Nov 04 12:47:03 2007
start adaptive frequency sweep.
simulation frequency = 1.00000 GHz
simulation frequency = 10.0000 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
adaptive frequency sweep: 0.0 % of frequency range covered.
simulation frequency = 7.00000 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 4.00000 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 5.50000 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 3.50000 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 9.50000 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 9.75000 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 9.08333 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 8.04167 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 7.17361 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 6.25000 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 3.75000 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 3.08333 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
simulation frequency = 2.04167 GHz
matrix load:
........................................
matrix solve:
........................................
calibration:
........................................
adaptive frequency sweep: 100.0 % of frequency range covered.
circuit simulation successful on Sun Nov 04 12:48:11 2007
...writing dataset files
没看明白,要不你把相应的设计发我邮箱里,具体看看!
mxh20060206@163.com
从1楼的抓图来看
在衬底某个层划分网格过多
最后一句意思是 不能海岸线式子的划分网格。 那你就试着整个衬底的层用同一种网格划分方式~
我后面重装了软件 换成2006A的了 现在按着例子做 能的到相应的结果了
我感觉可能是我2003A有点问题。谢谢两位了
遇到问题再请教 谢谢:happy
兄台对协仿真熟悉不?
不是很懂
刚刚起步学习ADS 刚半年
现在对着看一些资料
你要用Momentum做些什么工作呢?
