Shot noise model for diodes in ADS
Hi all,

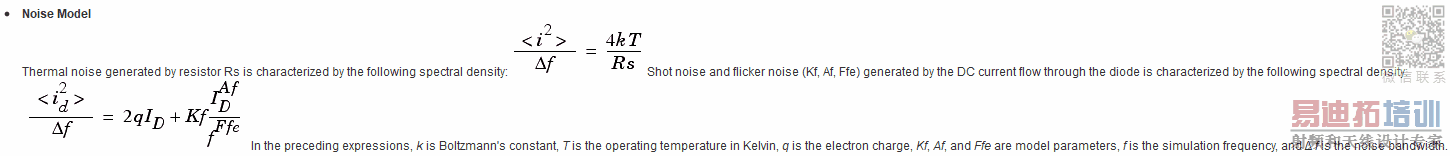

I have a question regarding the shot noise model for diodes in ADS: Accoring to the documentation, the spectral noise density is proportional to the diode current I_D, which includes the saturation current:
However, two papers (equation (2) in [1] and equation (10) in [2]) state that the saturation current should be included twice in the formula. This obviously leads to different results. Can anyone comment on this difference in noise modeling?
Thank you and best regards,
Fabian Michler
[1]Noise in solid-state devices and lasers - IEEE Journals & Magazine
[2]Transit-Time Effects in the Noise of Schottky-Barrier Diodes - IEEE Journals & Magazine(https://ieeexplore.ieee.org/document/1133515)
