ADS layout component ID size
Hello,

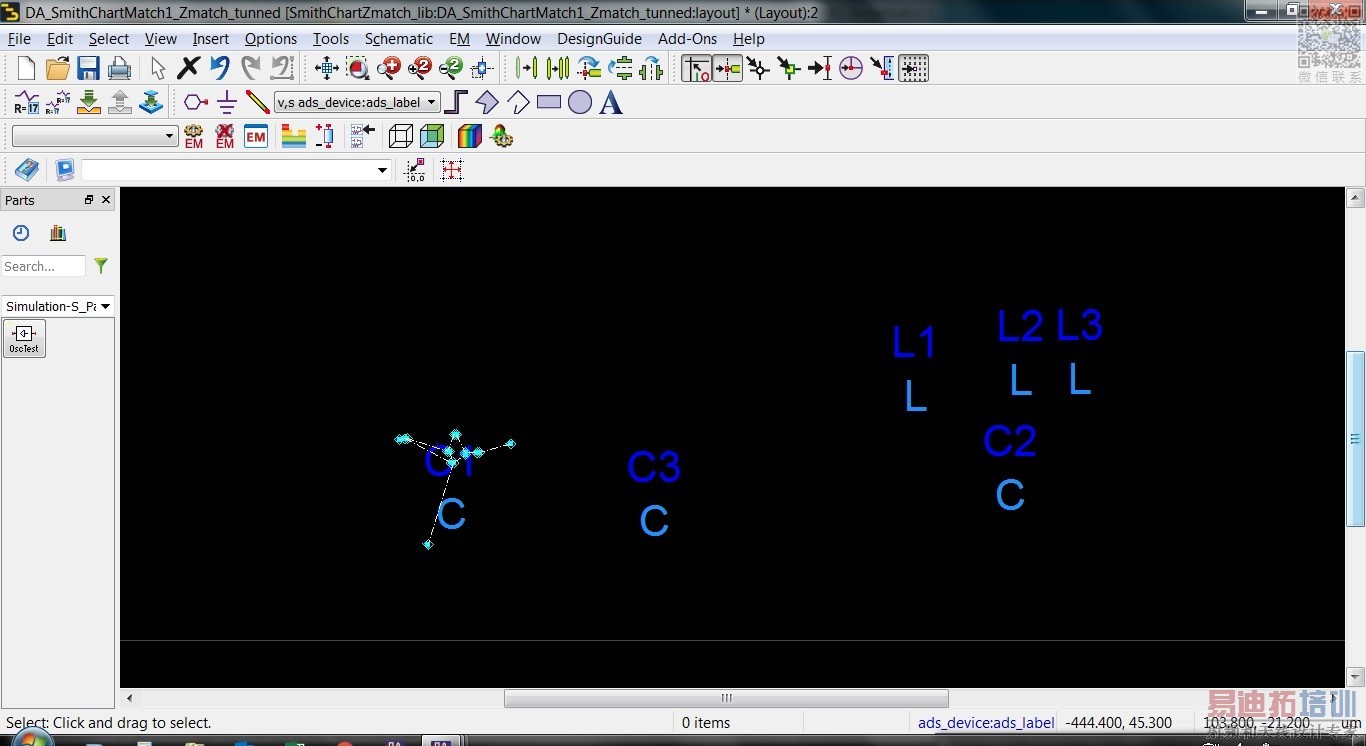

I am beginner in ADS. I am attempting to generate layout of my LC matching network. but the component identifiers that occur in layout(L1,C1,L2 etc) are quiet big than the component themselves. Its quiet annoying while routing. I request community to help me resize their view.
For the parts in the current layout design:
- Turn on the Properties docking window (View > Docking Windows > Properties Window)
- Select All (Ctrl-A) in the layout view.
- Edit the Size property valueas required to get a better text height.
To change the default size used for new parts as the are placed in the layout view:
- Open the preference editor in that layout window (Options > Preferences)
- In the Component/Pin Text tab set the Size as required to get a better text height.
In both cases the Size value is in the current layout units, i.e. um, mm, mil, etc.
