About S-parameter simulation with TLines-LineType components
Hi,
I wanted to create a coupled line channel for my Channel Sim simulation, but it runs into error and forced quit, so I decided to go back and investigate my channel model.

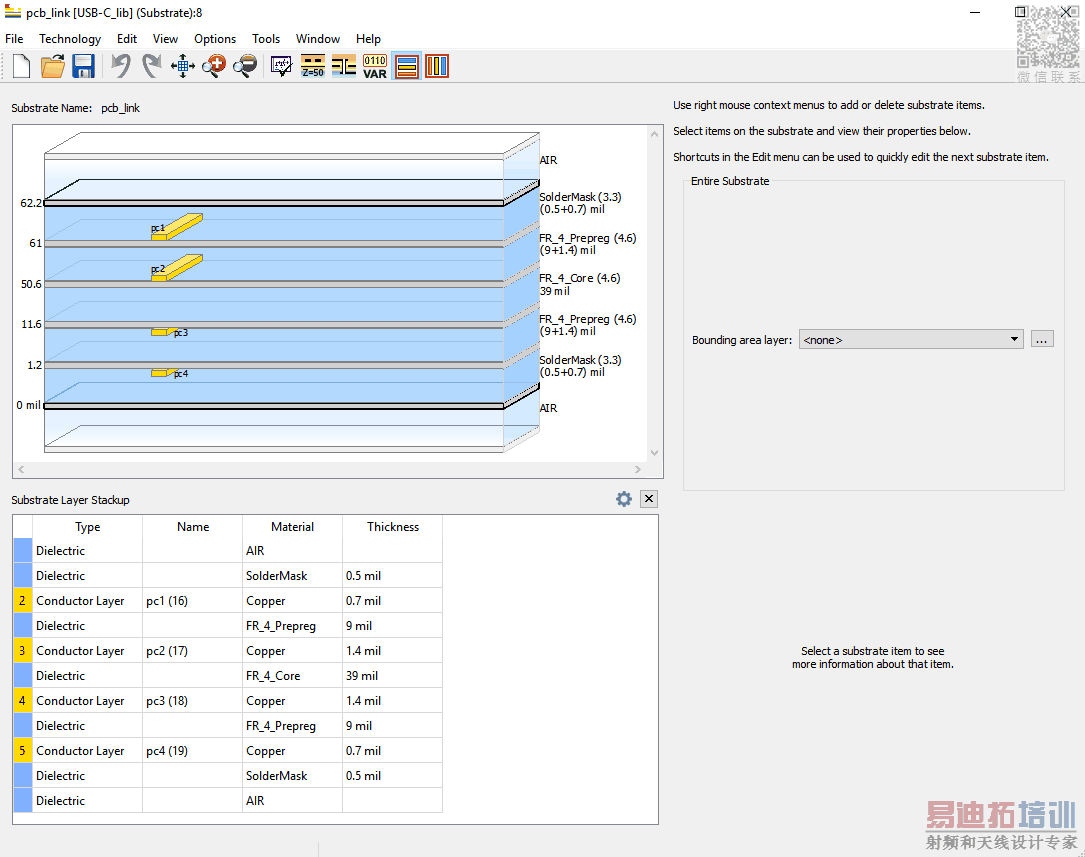

I created the default substrate

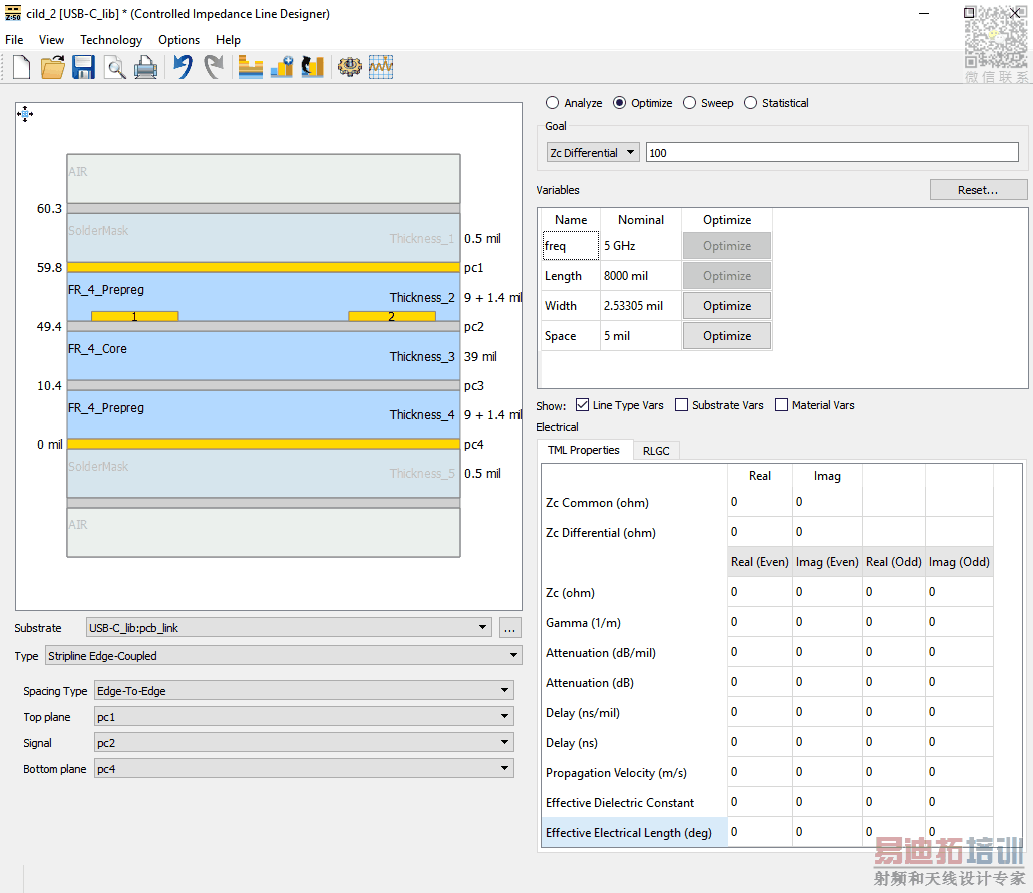

Then created a coupled line

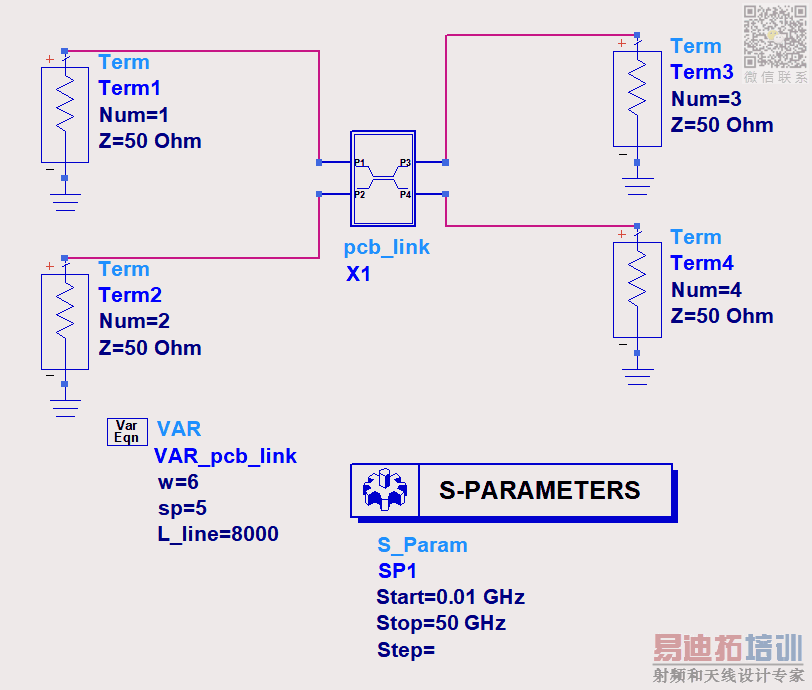

Then insert it with TLines-LineType
Then run a S-parameter simulation with it

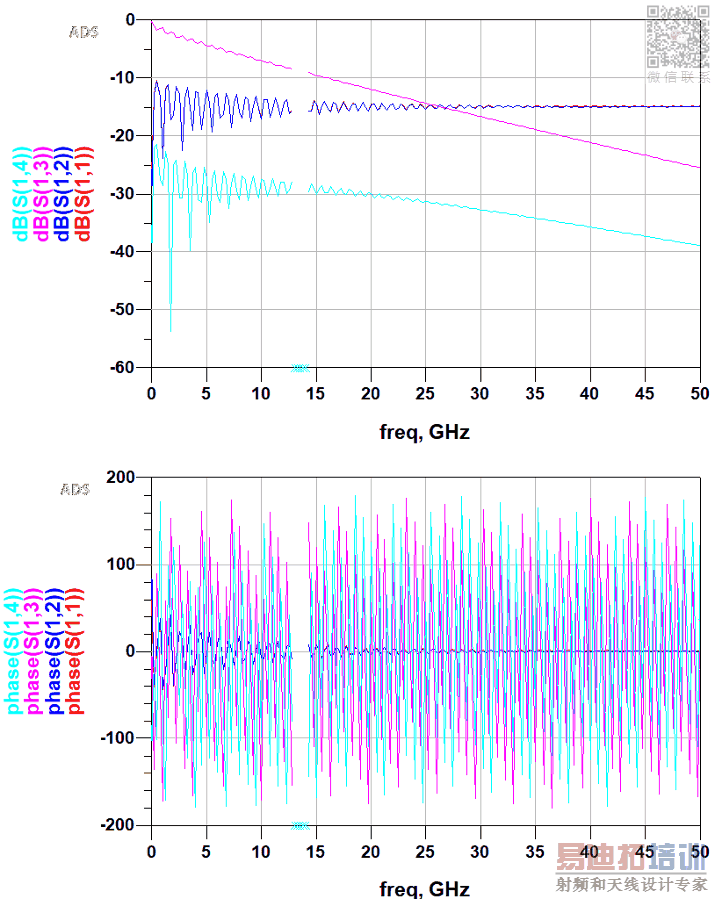

But here is what I get
I'm using ADS2017.1 on Windows 10. I think those discontinuities are reasons why my ChannelSim was corrupted. Did I miss something about TLines-LineType?
Thanks
