Using Transient Simulation in ADS
录入:edatop.com 点击:

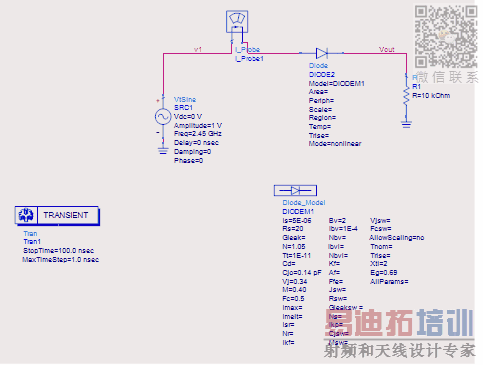

I was simulating a single diode in ADS to observe its output voltage. I am giving a sine wave as input and after simulation the output voltage is also a sine wave instead of being a DC voltage. Attached is the schematic. Please help me out . Thanks
I don't see any biasing network in your ckt. Suggest performing a DC simulation first and confirm the IV behavior of the diode, and then move on the transient.
