How to have data block( For s parameter file in schematic) for more number of ports in ADS 2015.01

Hi,

please clarify if the2015 version of momentum support writing out a 20 port S parameter file (in touchstone format) from EM simulation and 20 port s parameter file reading through data component for schematic simulation.

following is the snapshot of the warning message i get:

also,is there a generic data component i can use for touchstone files with more than 10 ports? where can i find it?

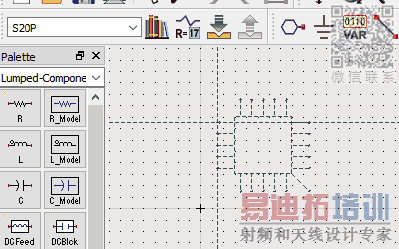

To use SNP files with more than 10 ports, you can type in the symbol name (e.g. S20P) in the entry box directly:

The message that you showed above can be ignored, suffix s20p is fine.

Thank you !!

That message is misleading. You can safely ignore it.
