[ADS] From Schematic window to Layout Window ?
录入:edatop.com 点击:
Hello Members,
I have a following circuit designed in Schematic window of ADS. I would like to export the design to ADS Layout window for fabrication phase.
Can someone kindly assist me. Awaiting your positive replies,

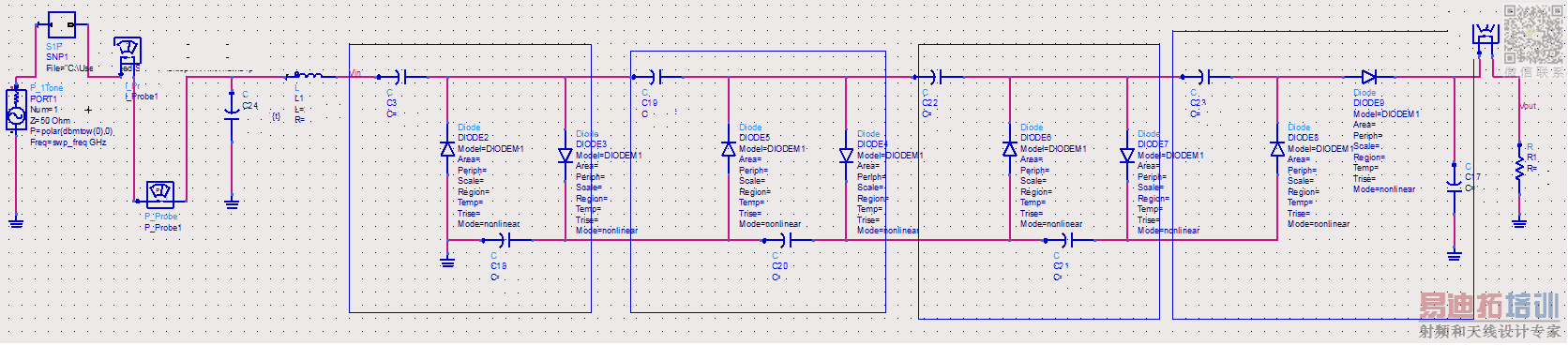

Circuit:
Regards
I have a following circuit designed in Schematic window of ADS. I would like to export the design to ADS Layout window for fabrication phase.
Can someone kindly assist me. Awaiting your positive replies,
Circuit:
Regards
You can't export your design because you have no layout symbols for your devices. They are all ideal components from ADS. You have to create schematic symbols for your components with layout footprints.
