ADS Filter simulator
Please I need help.
Following are the video sources:
https://www.youtube.com/watch?v=fe76...Dd42OU&index=3
https://www.youtube.com/watch?v=Y34L...Dd42OU&index=4
What is wrong ?
Comparing the tutorial video with mine.
Tutorial: 0:32 to 2:27 this track that happens to mine when I will simulate.
https://www.youtube.com/watch?v=fe76...Dd42OU&index=3
My:
<iframe class="restrain" title="YouTube video player" width="640" height="390" src="//www.youtube.com/embed/bWSOeeTZmu4?wmode=opaque" allowfullscreen="true" frameborder="0"></iframe>
I couldn't see your specification but they might be overrated or impossible to realize..
It may also be a bug of ADS.

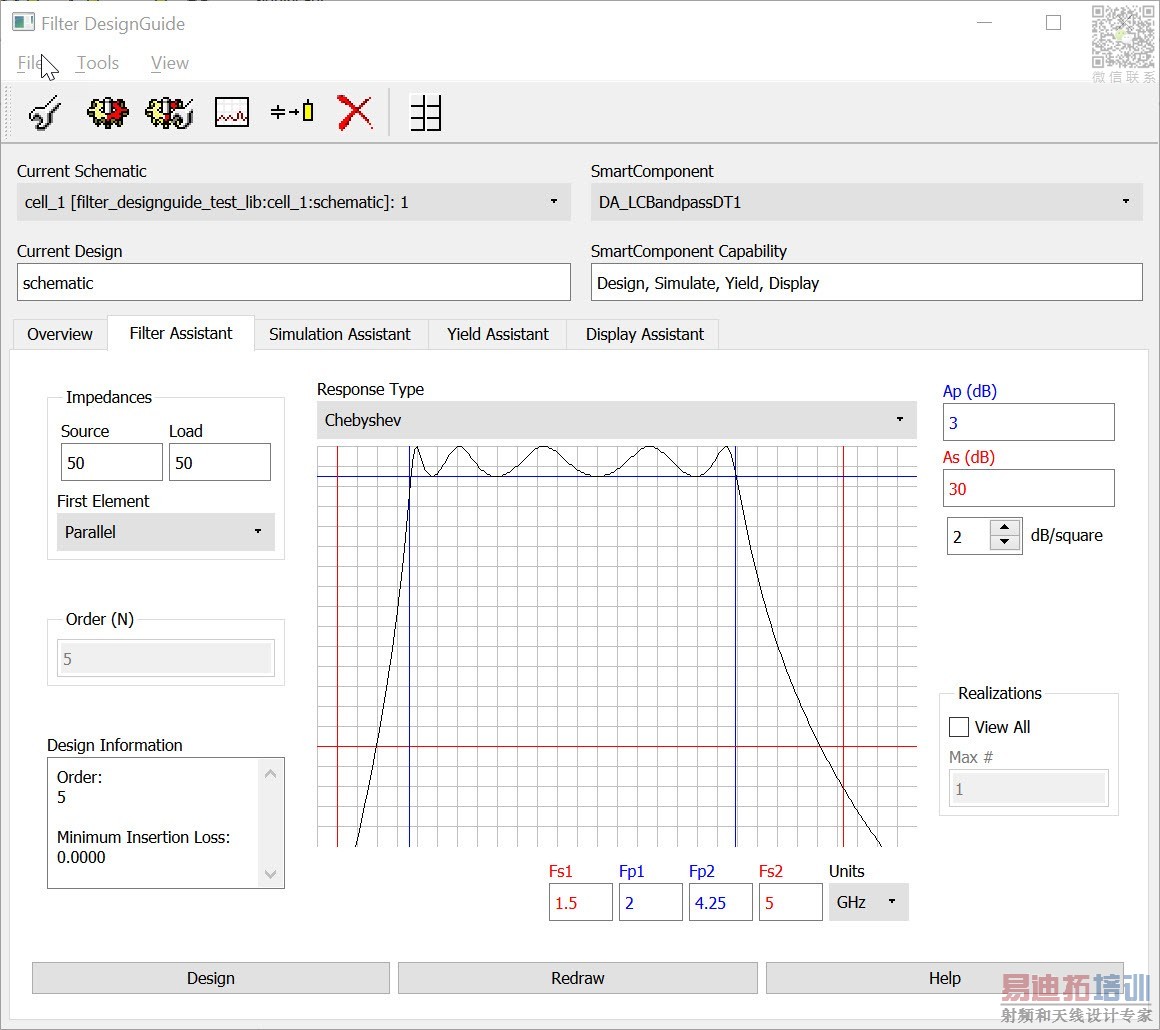

I tried to reproduce in ADS2020.
I entered Fp1 and Fp2 first, then Fs1 and Fs2. This results in filter order 5, not 10 as shown in your case. Works fine, no problems.
Your order jumped from 2 to 10 when you entered the frequencies "from left to right", and never switched back. Maybe try the sequence that I described: Fp1 and Fp2 first, then Fs1 and Fs2.
Hi, I apologize for the quality of the video, I do not have permission or access to install software to record video on the desktop. But the photo you posted is the same as the data you enter in the video. Not sure if there is a function where I should select first?
Some time ago something similar happened, where a video tutorial did not mention that I had to select before, this afternoon I will continue the lab to find the error. But who finds the error please warn.
Please read my post again, and try what I suggested.
Yes, that was the antenna pattern where your tutorial used the old ADS2011, but now ADS has a completely new 3D viewer. Don't take tutorials too serious.
