LineCalc parameters interpretation ADS
录入：edatop.com 点击：
Hello, i am trying to be sure if i got the meaning of the following parameters in ADS.

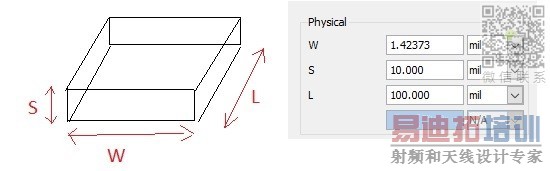

i have drawn the parameters presented in ADS linecalc on a 3D shape.
Did i get the parameters correctly?
Thanks
i have drawn the parameters presented in ADS linecalc on a 3D shape.
Did i get the parameters correctly?
Thanks
What is this 3D shape, it this transmission line ( liek Microstrip line)?
In ADS, for microstrip line it is like
Thank you very much i understood
