Is ADS 2009 netlist simulation from command line impossible compared to ADS 2014?

system

aele Zin1=zin(S11,PortZ1);
aele x=write_var("borrame.s2p","W","#Hz S RI R 50"," ","f",,freq,S11,S21,S12,S22);

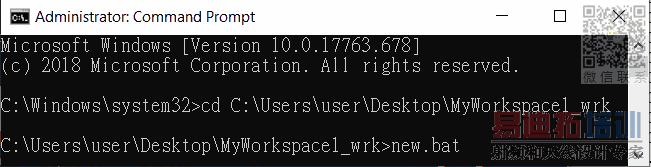

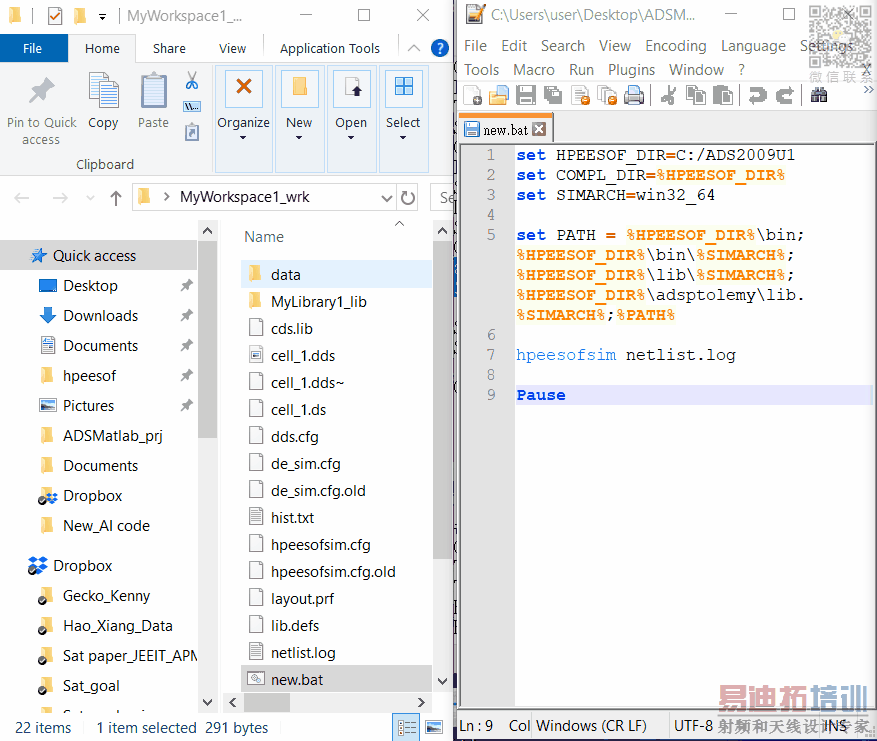

set HPEESOF_DIR=C:/ADS2009U1
set COMPL_DIR=%HPEESOF_DIR%
set SIMARCH=win32_64
set PATH = %HPEESOF_DIR%\bin;%HPEESOF_DIR%\bin\%SIMARCH%;%HPEESOF_DIR%\lib\%SIMARCH%;%HPEESOF_DIR%\adsptolemy\lib.%SIMARCH%;%PATH%
hpeesofsim netlist.log
Pause

set HPEESOF_DIR=C:/ADS2009U1
set COMPL_DIR=%HPEESOF_DIR%
set SIMARCH=win32_64
path %HPEESOF_DIR%\bin;%HPEESOF_DIR%\bin\%SIMARCH%;%HPEESOF_DIR%\lib\%SIMARCH%;%HPEESOF_DIR%\adsptolemy\lib.%SIMARCH%;%HPEESOF_DIR%\modelbuilder\public_headers\SystemVue;%PATH%
hpeesofsim netlist.log
Pause

set HPEESOF_DIR=C:/Agilent/ADS2014_01
set COMPL_DIR=%HPEESOF_DIR%
set SIMARCH=win32_64

path %HPEESOF_DIR%\bin;%HPEESOF_DIR%\lib\%SIMARCH%;%HPEESOF_DIR%\adsptolemy\lib.%SIMARCH%;%HPEESOF_DIR%\SystemVue\2013.08\%SIMARCH%\sveclient;%PATH%;

hpeesofsim netlist.log
dds cell_3.ds

Pause

• I am using the chinese OS of windows 10

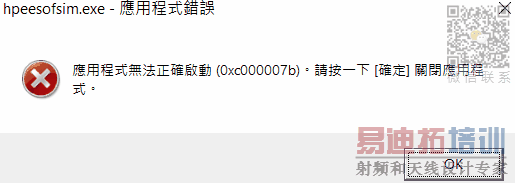

• while running the bat files for ADS2009, I obtained an un-reproducable error telling me I am missing tiburon-da from my ADS library. Which I added it to my ADS2009 project DesignKit.
• My task manageer showed hpeesofde.exe located from C:\ADS2009U1\bin was running.

Your Attachment 155281 expired (possible reason, too long delay while composing post). Try uploading image again, and submit new post immediately.

ADS2009 can not run on Windows10.

Use Windows7.
I don?t know about Windows8.

Hi pancho_hideboo, I am using ADS2009 on my Windows10, or do you mean the running ADS2009 from Windows command line can only be done on Windows7?

By the way, the test circuit I tried to automate with it's netlist.log are :

Options ResourceUsage=yes UseNutmegFormat=no EnableOptim=no TopDesignName="C:\Users\user\Desktop\ADSMatlab_prj\networks\basic"
aele Zin1=zin(S11,PortZ1);
aele x=write_var("borrame.s2p","W","#Hz S RI R 50"," ","f",,freq,S11,S21,S12,S22);
Port:Term2  _net8 0 Num=2 Z=50 Ohm Noise=yes
TLIN:TL1  _net7 _net8 Z=50.0 Ohm E=90 F=1 GHz
Port:Term1  _net7 0 Num=1 Z=50 Ohm Noise=yes
S_Param:SP1 CalcS=yes CalcY=no CalcZ=no GroupDelayAperture=1e-4 FreqConversion=no FreqConversionPort=1 StatusLevel=2 CalcNoise=no SortNoise=0 BandwidthForNoise=1.0 Hz DevOpPtLevel=0 \
SweepVar="freq" SweepPlan="SP1_stim" OutputPlan="SP1_Output"

SweepPlan: SP1_stim Start=1.0 GHz Stop=10.0 GHz Step=1.0 GHz

OutputPlan:SP1_Output \
      Type="Output" \
      UseEquationNestLevel=yes \
      EquationNestLevel=2 \
      UseSavedEquationNestLevel=yes \
      SavedEquationNestLevel=2

Is it true ?

ADS2009 is not supported on Windows10.
See https://www.keysight.com/main/editor...3&lc=eng&cc=US

We can not install ADS2009 on official Windows10, since an installer rejects an install operation.

You can install ADS2009 on your illegal Windows10 ?

Are your OS and ADS surely official not illegal copy ?

Hi pancho_hideboo,

A good point, I upgraded my computer's disk drives through a repair shop and the reinstalled Windows 10 OS might be unofficial.

Considering, I might like to have another try at ADS 2009 command line capability. How ADS2009 runs on Windows 7 could offer directions of how it could run on it run on my Windows 10. I would like to know :

If I was running ADS2009 on Windows 7, would my bat and netlist.log files be sufficient?

If it were not sufficient, it would be incredible to obtain a step by step picture instructions for ADS2009 like for ADS2014 below :

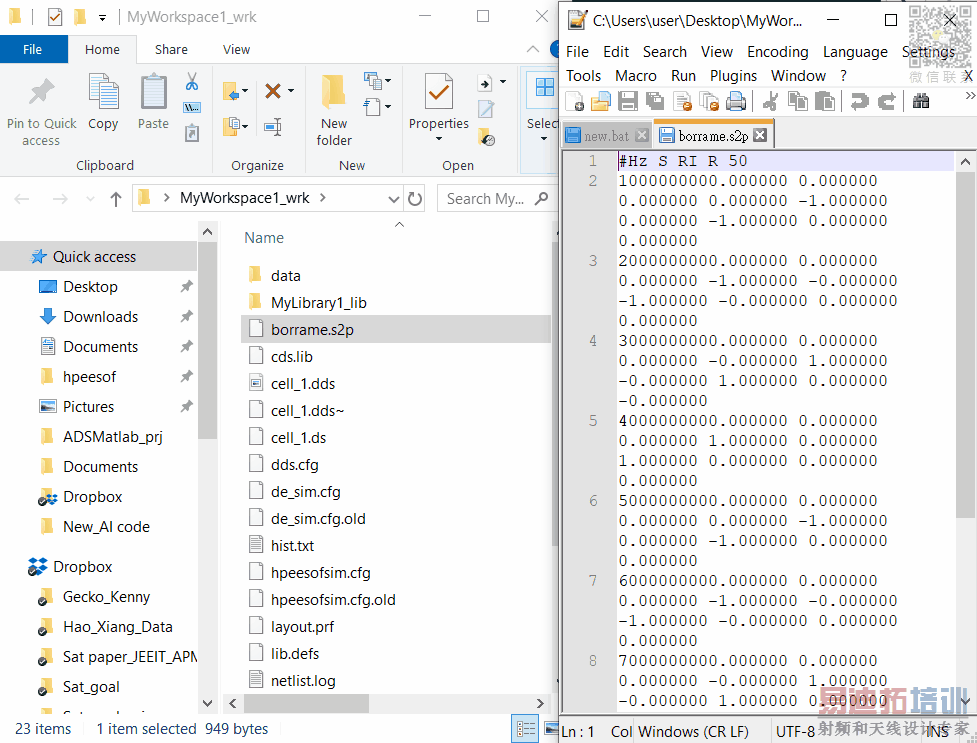

Open ADS2014 and Design the test circuit and save :

Sufficient as far as you use official Windows7 and ADS2009.

I suspect you use illegal or hacking ADS2009 as well as your illegal or hacking Windows10.

Use official ADS2009 and Windows7.
That?s all.
