ADS： Advanced Design System | impedance matching tool error
录入：edatop.com 点击：
Hi all,
I'm new to ADS and try to follow video about impedance matching tool https://www.youtube.com/watch?v=GQqr2aDz3Tk

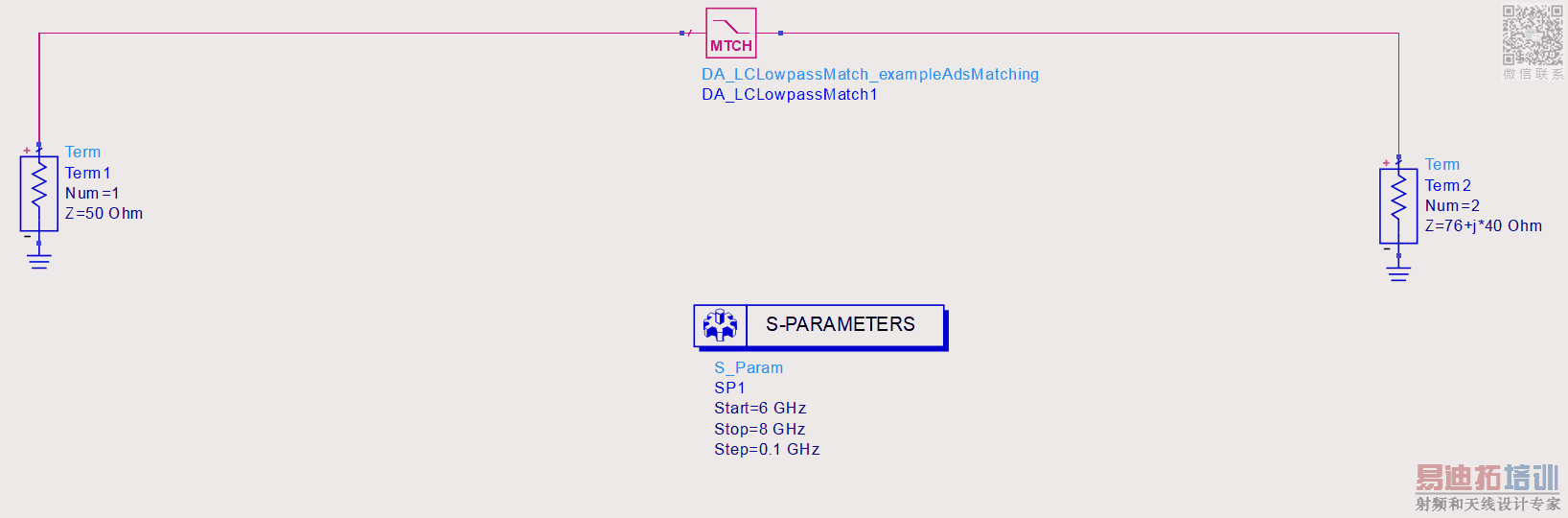

I did the same circuit
Impedance matching utility settings

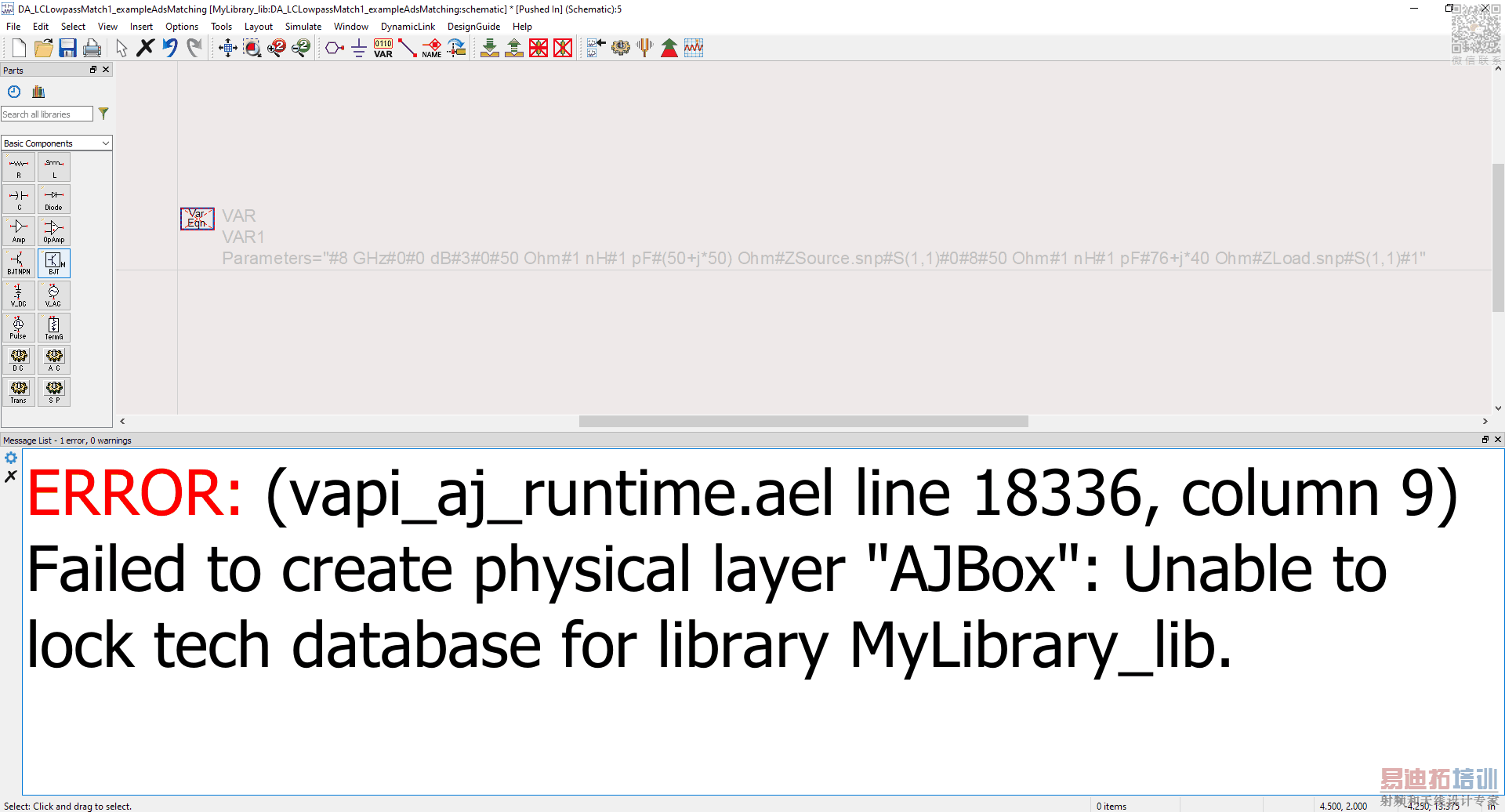

when click design I get this error
I tried to change Fp to 7GHz and still same error, my ADS 2017
In ADS there are lowpass/highpass/bandpass matching elements, are these related to L/Pi/T match circuits?
^lowpass/highpass/bandpass matching elements
I'm new to ADS and try to follow video about impedance matching tool https://www.youtube.com/watch?v=GQqr2aDz3Tk
I did the same circuit
Impedance matching utility settings
when click design I get this error
I tried to change Fp to 7GHz and still same error, my ADS 2017
That looks special, contact Keysight ADS support.
the problem is solved when creating a new workspace, my old one has many cells so I guess that's the problem
In ADS there are lowpass/highpass/bandpass matching elements, are these related to L/Pi/T match circuits?
^lowpass/highpass/bandpass matching elements
