Is it futile to simulate different circuits one after the other in ADS through AEL?
录入:edatop.com 点击:
Hi All,
I am trying to do Image Rejection Ratio simulations in ADS which I have to run two circuits, one after the other. It will be nice to have an AEL program to run one circuit (.dsn files) after the other automatically, instead of manually waiting for one circuit to finish simulations before simulating the other.
I tried the AEL program below :

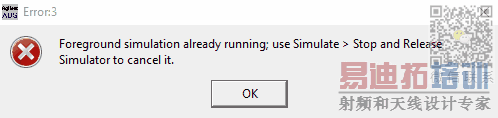

However have gotten the error :
Each simulations only take 2 seconds, yet the de_release_simulator(); and sleep(5) did not help.
Any tips or directions will be appreciated!
I am trying to do Image Rejection Ratio simulations in ADS which I have to run two circuits, one after the other. It will be nice to have an AEL program to run one circuit (.dsn files) after the other automatically, instead of manually waiting for one circuit to finish simulations before simulating the other.
I tried the AEL program below :
Code dot - [expand] 1 2 3 4 5 6 7 8 9 10 11 /*Simulate T_P_IM*/ de_set_window_by_sequence(1, 0); de_analyze(); sleep(10); de_release_simulator(); /*Simulate T_P_RF*/ de_set_window_by_sequence(1, 1); de_analyze(); sleep(5); de_release_simulator();
Each simulations only take 2 seconds, yet the de_release_simulator(); and sleep(5) did not help.
Any tips or directions will be appreciated!
