How to Export S-Parameters from ADS ?

Hi

I have simulated an LC series circuit in ADS 2009 and analysed the s-parameters. Now I want to export the S-parameters as a text file or CTI file or CSV file or matrix to plot a graph in any other tool like MS Excel and Origin Pro etc.

But I do not know how to export the data files from ADS, so that I can use them in any other software for plotting. Any one have Idea or tutorial please share with me. I need help in this regard.

Thanks in Advance,
Regards:
M. Idrees

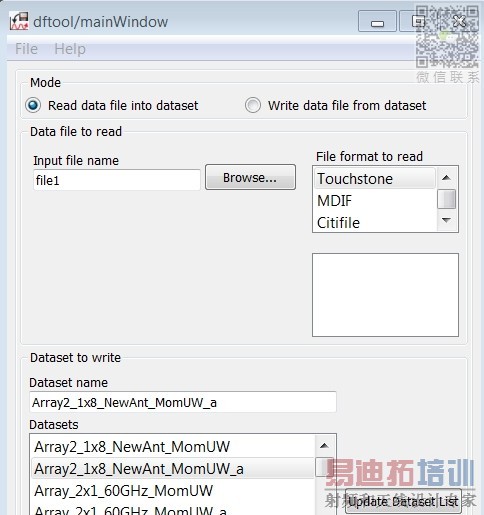

Use Data File Tool.
http://edadocs.software.keysight.com...itingDataFiles

an easy way

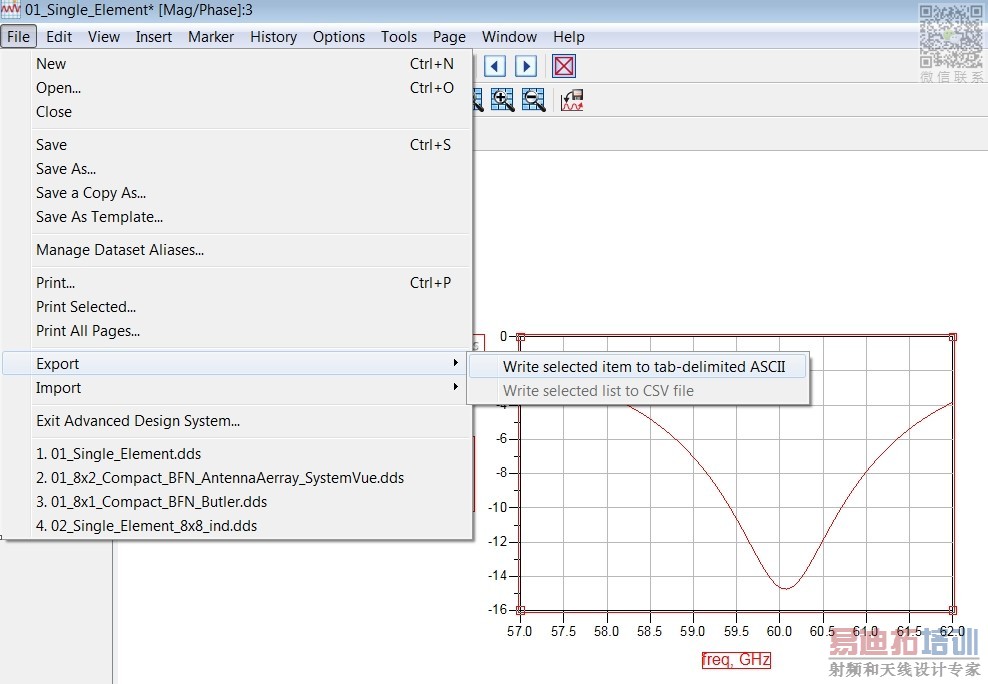

click on the plotted graph, then click File --> export --> write data....into ACII

then u will have the data...can be used to plot using any software

regards

There are multiple ways to export ADS S-parameter file

1. From DDS window you can export S-parameter into ACII

2. From data tool you can convert ADS data set to citifile or someother file format

3. If you are doing momentum of FEM simulation , you can get citi file inside simulation folder

I use write_snp() function rather than Data File Tool.
http://edadocs.software.keysight.com...ageId=82848735

Another easy method for this is to simply place an SPOutput component in the simulation schematic.

There are no additional steps required.

Dear All, Thanks for your suggestions. I have got the solution. As i use the tools option in the results window and using Touchstone option. I just write the data in text file format and the reopen it in Excel for further processing.
Thanks once again for helping me!

Yes if there are any other ways to export please share with me.

Regards:
Muhammad Idrees
