How to define substrate layers of stacked patch in ADS momentum

录入:edatop.com    点击:
Hi,

I have to design stacked patch antenna on ADS momentum. I know how to define single patch definition of substrate but i am not sure about my stacked patch. Attachment is my design which i want to implement in ADS momentum. I need to know how to define substrate layers for my particular stacked patch design.

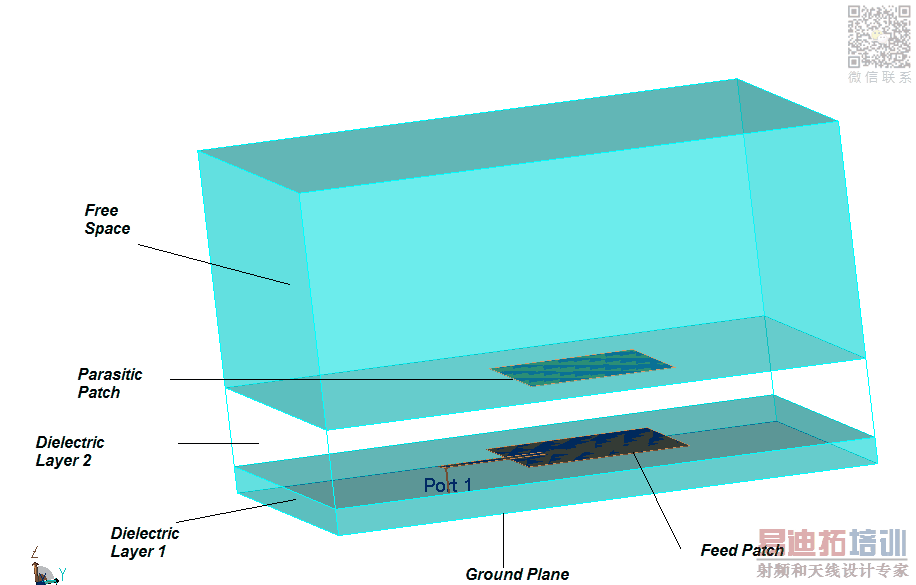

Free space
Layer 1 = Parasitic patch
Layer 2 = Dieletric layer1
Layer 3 = Feed patch
Layer 4 = Dieletric layer2
Layer 5 = Ground Plane

Thanks in advnace and i am waiting for the reply.

Also i need to tilt plane 45° not the patch tilt to 45°. Can anybody tell me how i can do this on momentum ?

In my opinion:

Thanks andy_larkeen.

Can you guide me step about the layout layer because i am having problem on the definition of Layout layer. Also i am unable to find "parasitic_patch" in the list :(
Also do u have some idea how i adjust precedence layer?

Also how can i tilt the plane to 45° ?

Waiting for the reply !
Thanks

Hi Kashan,

I already replied to you there https://www.edaboard.com/thread207501.html

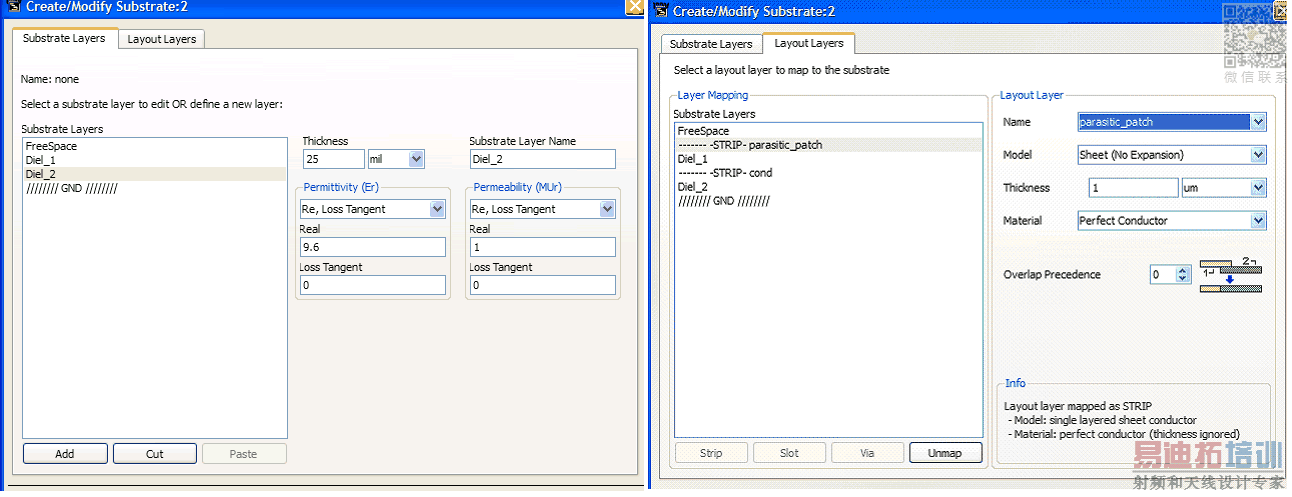

You can edit/rename all the layers in the layers option menu ( Options - Layers)
I can advise you to read the online help Getting Started with Momentum - ADS 2009 - Agilent EEsof Documentation Center

Cheers,

JB

Thanks a lot JB. Now i solved the problem. Here is my final version of antenna. If anyone needs help then he can contact me :)


Hi !

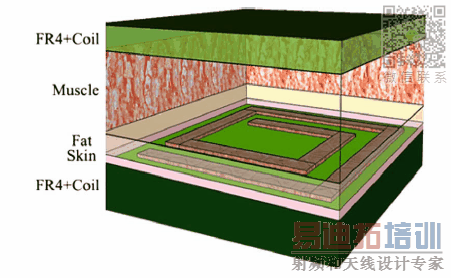

I have to optimize a two coil inductive link using momentum ADS. One coil is implanted inside the body and the other one is outside the body. So, i have to design the link ( it is showed in the picture

with momentum and optimize the parameters of the two coils ( picture 1) . So any help please ?
Thanks
Houda
