ADS Schematic： design offeset microstrip
录入：edatop.com 点击：
Hi!

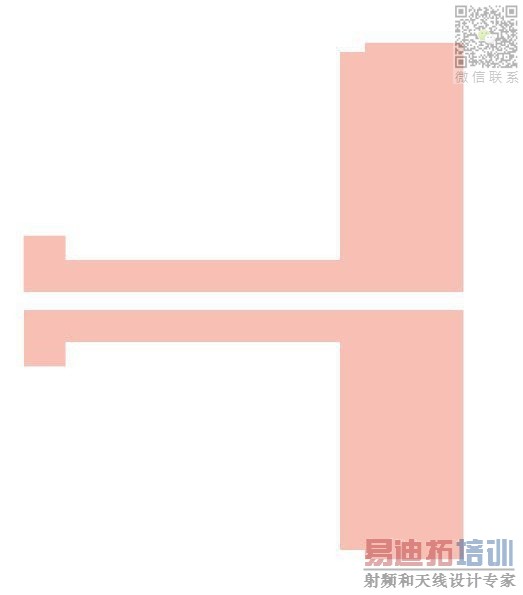

Prompt, please, as in ADS schematic to create the offset microstrips (for example, topology of such look:
In the standard element MSTEP of offset concerning the center isn"t present as, for example, in the element MSSTEPX from AWR MWO.
Thanks in advance.
Prompt, please, as in ADS schematic to create the offset microstrips (for example, topology of such look:
In the standard element MSTEP of offset concerning the center isn"t present as, for example, in the element MSSTEPX from AWR MWO.
Thanks in advance.
