Problems in： Co-simulation ADS2011 and EMpro2013

Dear all,

I'm doing co-simulation ADS and EMpro. Following are my steps,

1. Simulate a simple project Microstrip line of two ports in EMpro 2013 (student license)
2. Save the project as a library
3. Open ADS (using ADS 2011) and add the library to ADS project. This lib. was attached in the post

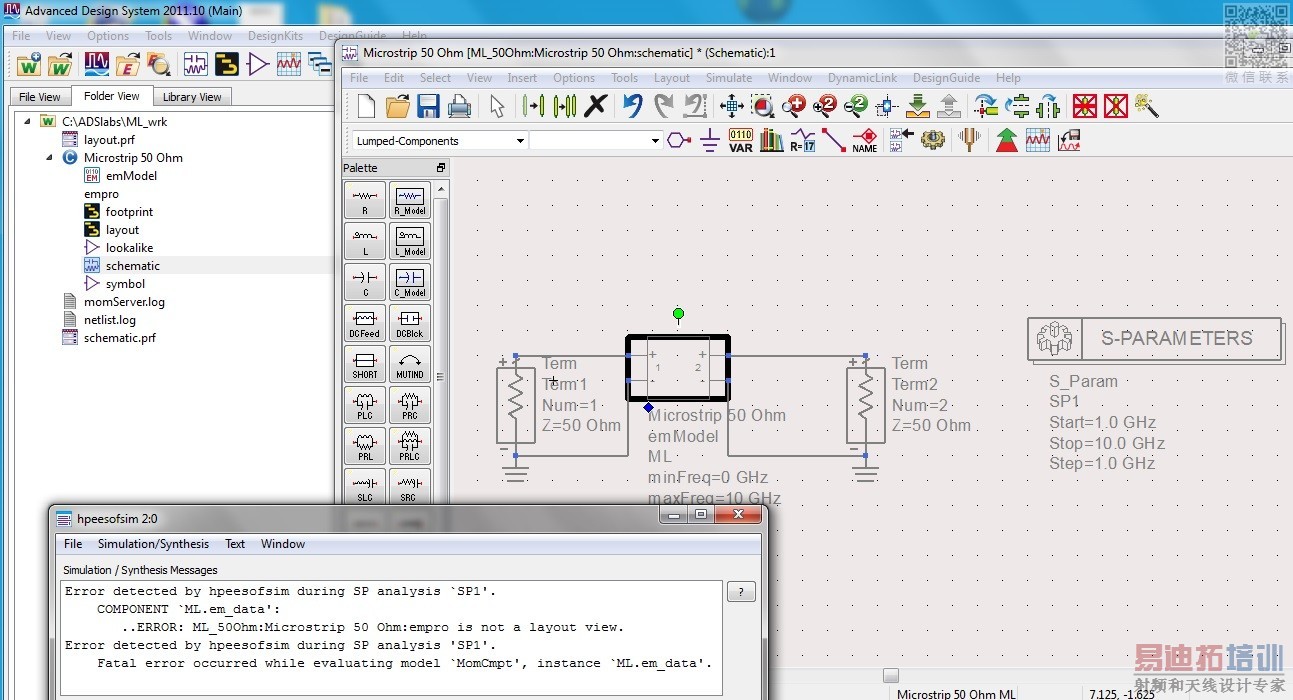

I added two terminals to simulate in ADS but it had errors: " ..ERROR: ML2:ML2:empro is not a layout view. " I wonder why this is not a layout view.

Can you guys help me to figure out the problem?

Thanks,

Chi
