Substrate in ADS Momentum (Layout)
录入：edatop.com 点击：
Hello to all.
Who can knows as to create in ADS (layout) the following structure:
I will be very grateful for the help.
Who can knows as to create in ADS (layout) the following structure:
I will be very grateful for the help.
Hi Vigort,

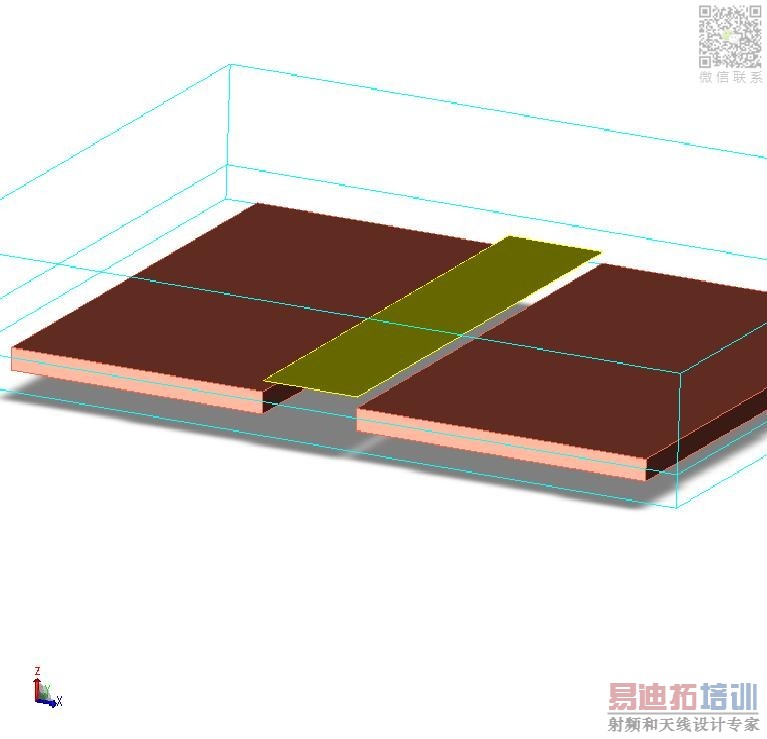

I would do build the Substrate stack-up as depicted in the attached snapshots. I also attached an EMDS preview whcih should look close to the structure you want to have.
Regards,
JB
Hi, jiboune256!
Many thanks. It's that is necessary.
