Modifying Port Area in Agilent ADS-2008 (or 2009) Layout for EMDS simulation

录入:edatop.com    点击:
Hi,

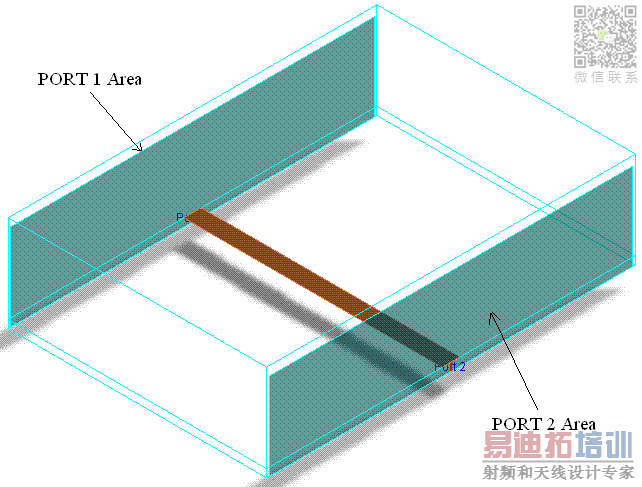

This is related to layout design in Agilent's ADS-2008 (or 2009) for EMDS simulation. I want to know if the port area, as shown by EMDS > 3D EM Preview, can be modified by the designer? By port area, I mean the port boundaries, depicted as shaded portions in figure below:

闂傚倸鍊搁崐鎼佸磹閹间礁纾归柟闂寸绾惧綊鏌熼梻瀵割槮缁炬儳缍婇弻鐔兼⒒鐎靛壊妲紒鎯у⒔閹虫捇鈥旈崘顏佸亾閿濆簼绨奸柟鐧哥秮閺岋綁顢橀悙鎼闂侀潧妫欑敮鎺楋綖濠靛鏅查柛娑卞墮椤ユ艾鈹戞幊閸婃鎱ㄩ悜钘夌;婵炴垟鎳為崶顒佸仺缂佸鐏濋悗顓熶繆閵堝繒鍒伴柛鐕佸亞缁鈽夊Ο蹇撶秺閺佹劙宕ㄩ璺攨缂傚倷绀侀鍕嚄閸撲焦顫曢柟鎹愵嚙绾惧吋鎱ㄥ鍡楀幋闁稿鎹囬幃婊堟嚍閵夈儮鍋撻崸妤佺叆闁哄洦姘ㄩ崝宥夋煙閸愯尙鐒告慨濠勭帛閹峰懘宕ㄦ繝鍌涙畼闂備浇宕甸崰鍡涘磿閹惰棄绠查柕蹇曞濞笺劑鏌嶈閸撴瑩顢氶敐鍡欑瘈婵﹩鍘兼禍婊呯磼閻愵剙顎滃瀛樻倐瀵煡顢楅崟顑芥嫼闂佸湱枪濞撮绮婚幘瀵哥閻犲泧鍛煂闁轰礁鐗婃穱濠囧Χ閸涱喖娅ら梺绋款儌閸撴繄鎹㈠┑鍥╃瘈闁稿本绋戝▍锝咁渻閵堝繒鍒伴柕鍫熸倐楠炲啯绂掔€e灚鏅┑鐐村灦钃遍悹鍥╁仱濮婅櫣鎷犻垾铏亶闂佽崵鍣︽俊鍥箲閵忕姭鏀介悗锝庝簽閸婄偤姊洪棃娴ゆ盯宕橀妸銉喘婵犵數濮烽弫鍛婃叏閻戣棄鏋侀柟闂寸绾捐銇勯弽顐粶闁绘帒鐏氶妵鍕箳閹存繍浠肩紒鐐劤椤兘寮婚悢鐓庣鐟滃繒鏁☉銏$厽闁规儳顕ú鎾煙椤旂瓔娈滈柡浣瑰姈閹棃鍨鹃懠顒佹櫦婵犵數濮幏鍐礃椤忓啰椹抽梻渚€鈧稓鈹掗柛鏂跨Ф閹广垹鈹戠€n亜绐涘銈嗘礀閹冲秹宕Δ鍛拻濞达絽鎲$拹锟犳煙閾忣偅灏甸柍褜鍓氬銊︽櫠濡や胶鈹嶅┑鐘叉搐缁犵懓霉閿濆牆鈧粙濡搁埡鍌滃弳闂佸搫鍟犻崑鎾绘煕鎼达紕锛嶇紒杈╁仱楠炴帒螖娴e弶瀚介梻浣呵归張顒勬偡閵娾晛绀傜€光偓閸曨剛鍘甸梺鎯ф禋閸嬪懎鐣峰畝鈧埀顒冾潐濞叉粓寮拠宸殨濞寸姴顑愰弫鍥煟閹邦収鍟忛柛鐐垫暬濮婄粯鎷呴懞銉с€婇梺闈╃秶缁犳捇鐛箛娑欐櫢闁跨噦鎷�...



I found that ADS software automatically sets the port areas as follows:
ADS-2008 Wp = 07 x Wstrip Hp = 04 x Hsbstrt
ADS-2009 Wp = 21 x Wstrip Hp = 11 x Hsbstrt
where,
Wp and Hp => the width and the height of the port area, respectively;
Wstrip => width of the microstrip line
Hsbstrt => height of the substrate

Moreover, it would also be beneficial if someone can suggest appropriate port dimensions for correct simulations in any FEM software. I found that HFSS tutorial suggests Wp = 20 x Wstrip and Hp = 15 x Hsbstrt.

Thanks in Advance,
Vivs

The port size in ADS for 3DEM simulation is automatically calculated based on the width of copper and substrate as you mentioned. This size can be modified by "FEM/3D Features/Set Boundary Dimensions..." Find the port scale (lateral and vertical) and modify them as you need. The port size is to decouple the interaction between the port boundary to the structure to minimize any port parasitics. The rule of thumb varies but typically 10, 10 rule works very well. 10 times of copper width and 10 times of substrate height.

First of all, thanks for your response!
The solution that you have indicated for modifying the port size, actually works only for reducing the port area dimensions. In any case, the port area dimensions cannot be increased beyond the default values as set by ADS. Thus, the problem of increasing port area dimensions still exist (at least in ADS-2008 and ADS-2009 versions).
Probably, the software designers have removed this issue in newer version of ADS, say 2011... However, I am not aware of that. Can you tell if the port area dimensions can be increased beyond their default values in ADS-2011?
Thanks!
