Problems with ADS EM-cosimulation and schematic results for CPWG structures

录入:edatop.com    点击:
Hi ,

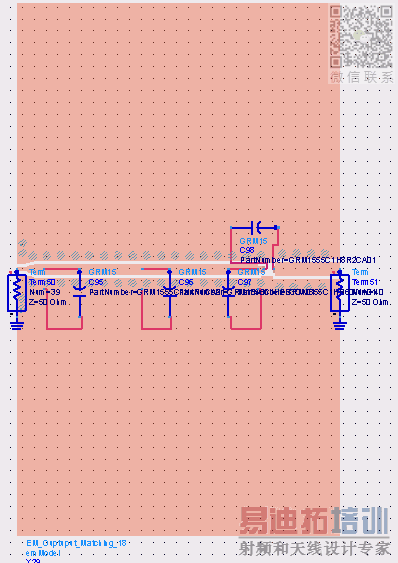

I have designed the output matching with CPWG(cpw with ground) line and L,C component.





But the result of EM-cosimulation looks strange and different from the result of schematic.

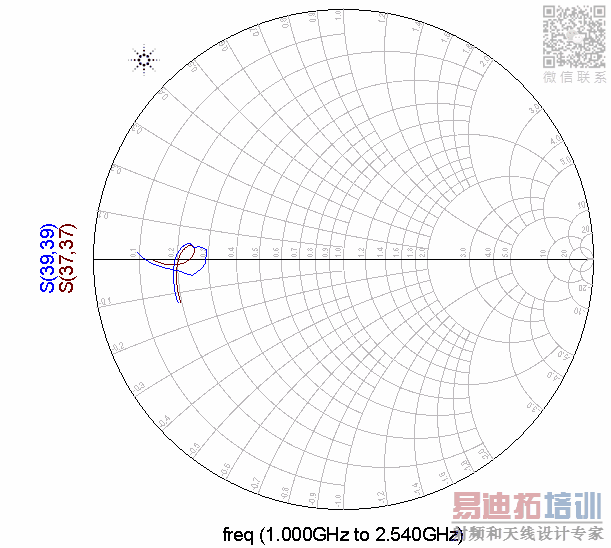

(S(37,37) is for schematic, S(39,39) is for EM cosimulation)


I found the problem.

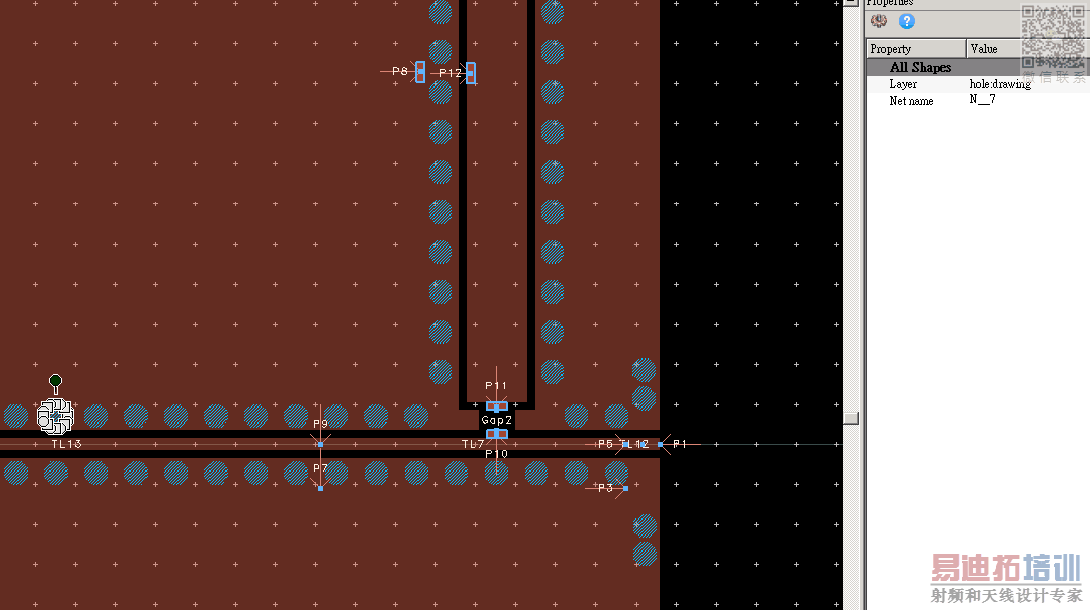

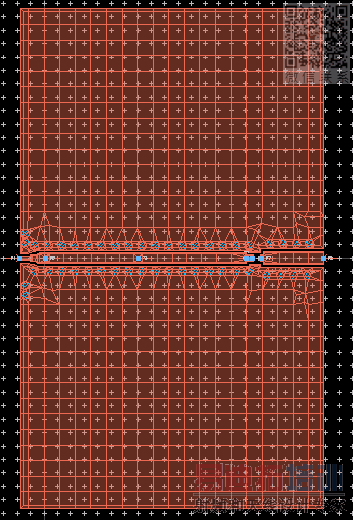

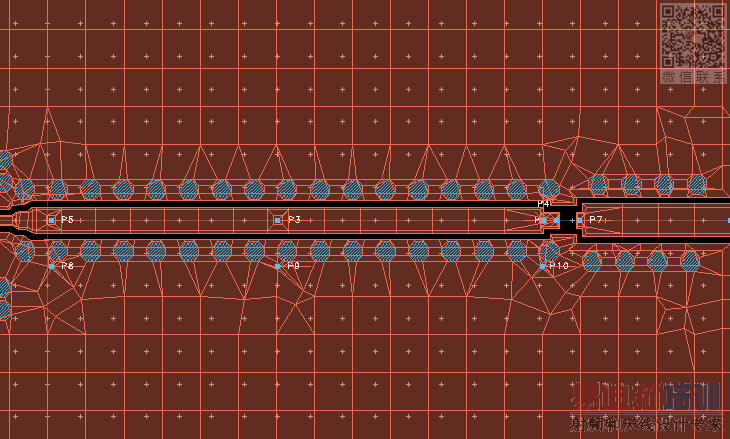

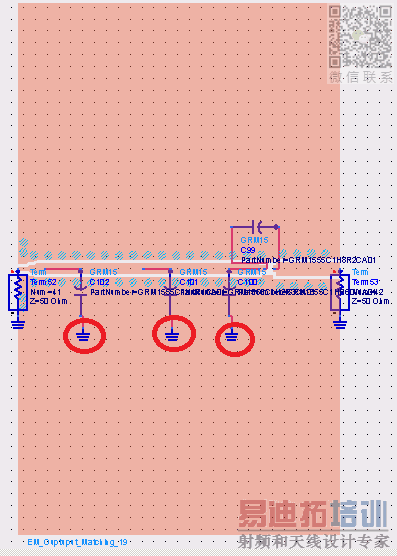

When I took away the pins on the ground of the CPWG line on my layout, and let the capacitor connected to the ideal ground, the result seems less strange, but is different from the original result.





(S(37,37) is for schematic,S(39,39) is for EM-cosim with ground pin on layout,S(41,41) is for EM-cosim without ground pin on layout.)

Does someone know if I should add the ground pin on the layout?

Change the values of capacitors a bit and see if it matches,your schematic results.

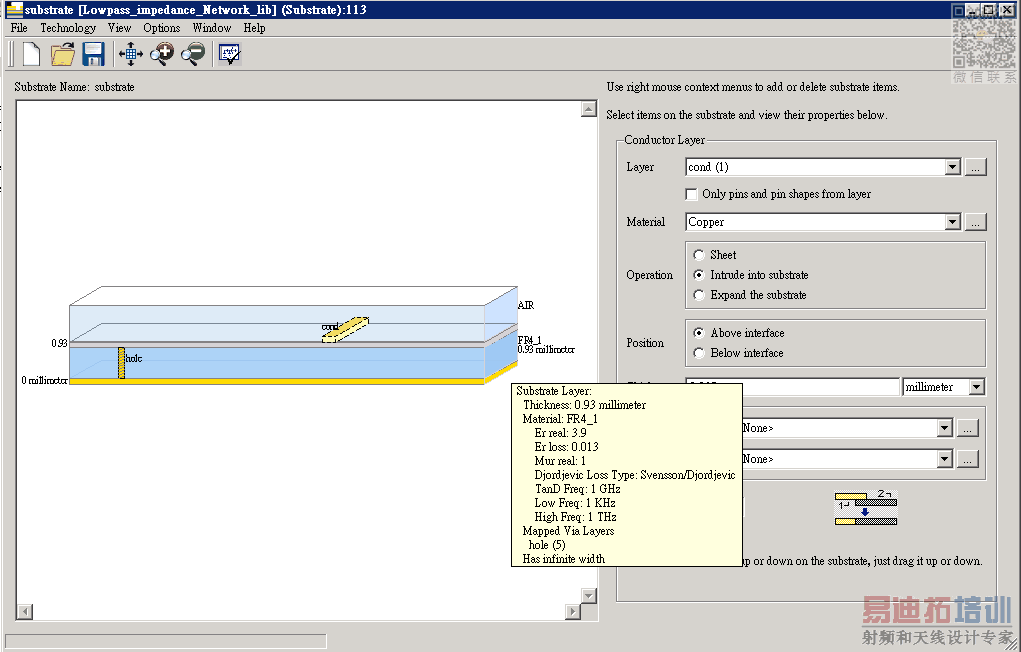

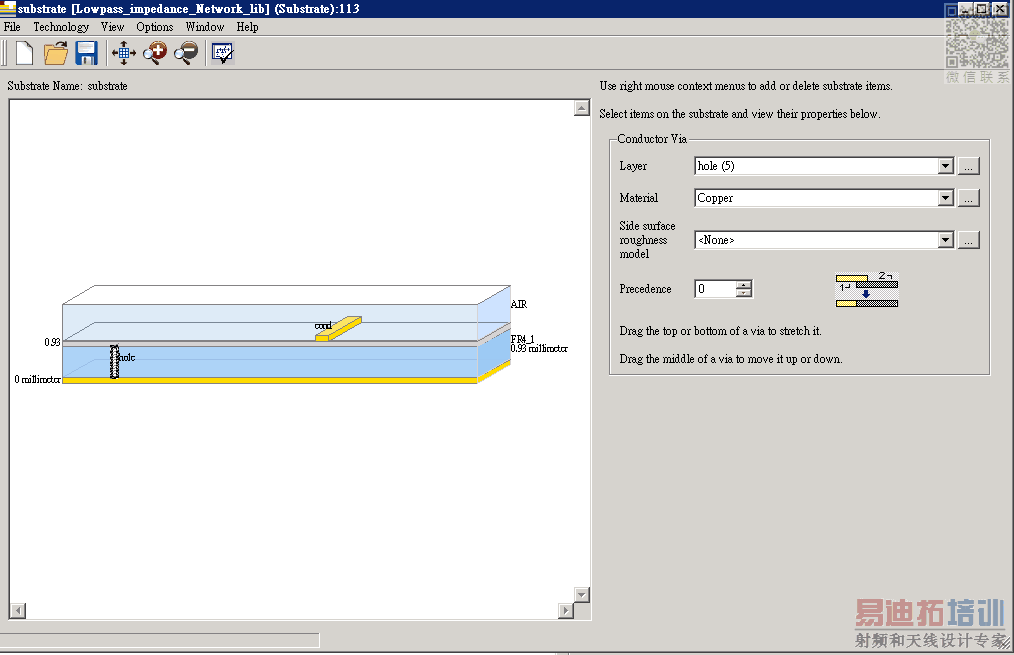

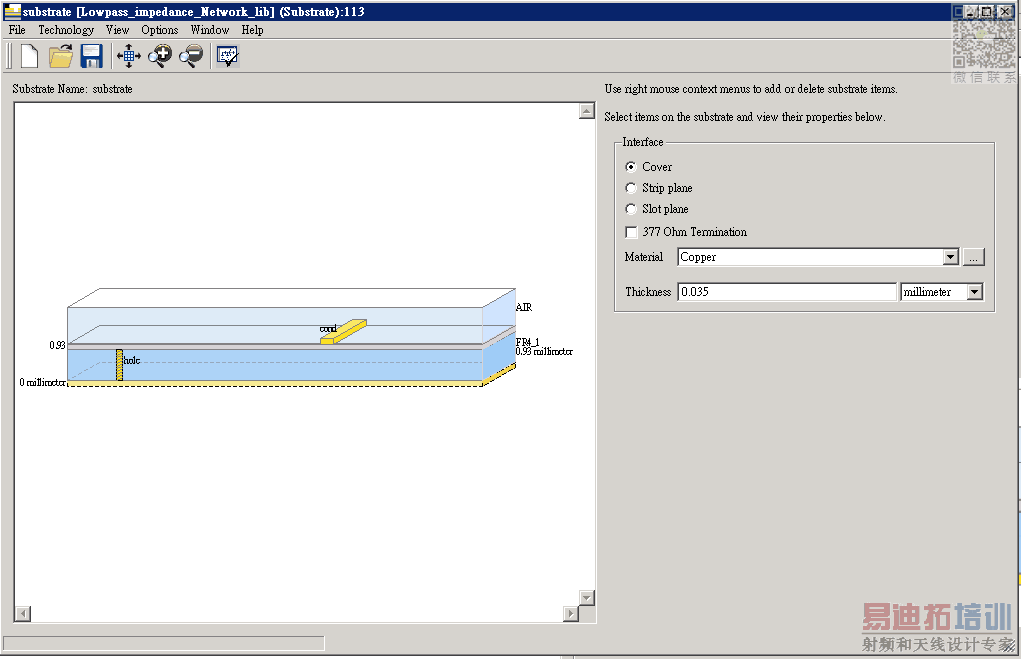

If the frequency is too high, check the VIA specifications in substrate file. EM simulator does probably not take the VIAs properly into account.

What do you mean that EM simulator does probably not take the VIAs properly into account?
Is my substrate setting right?
