Noise figure and Isolation in ADS
录入：edatop.com 点击：
Hi

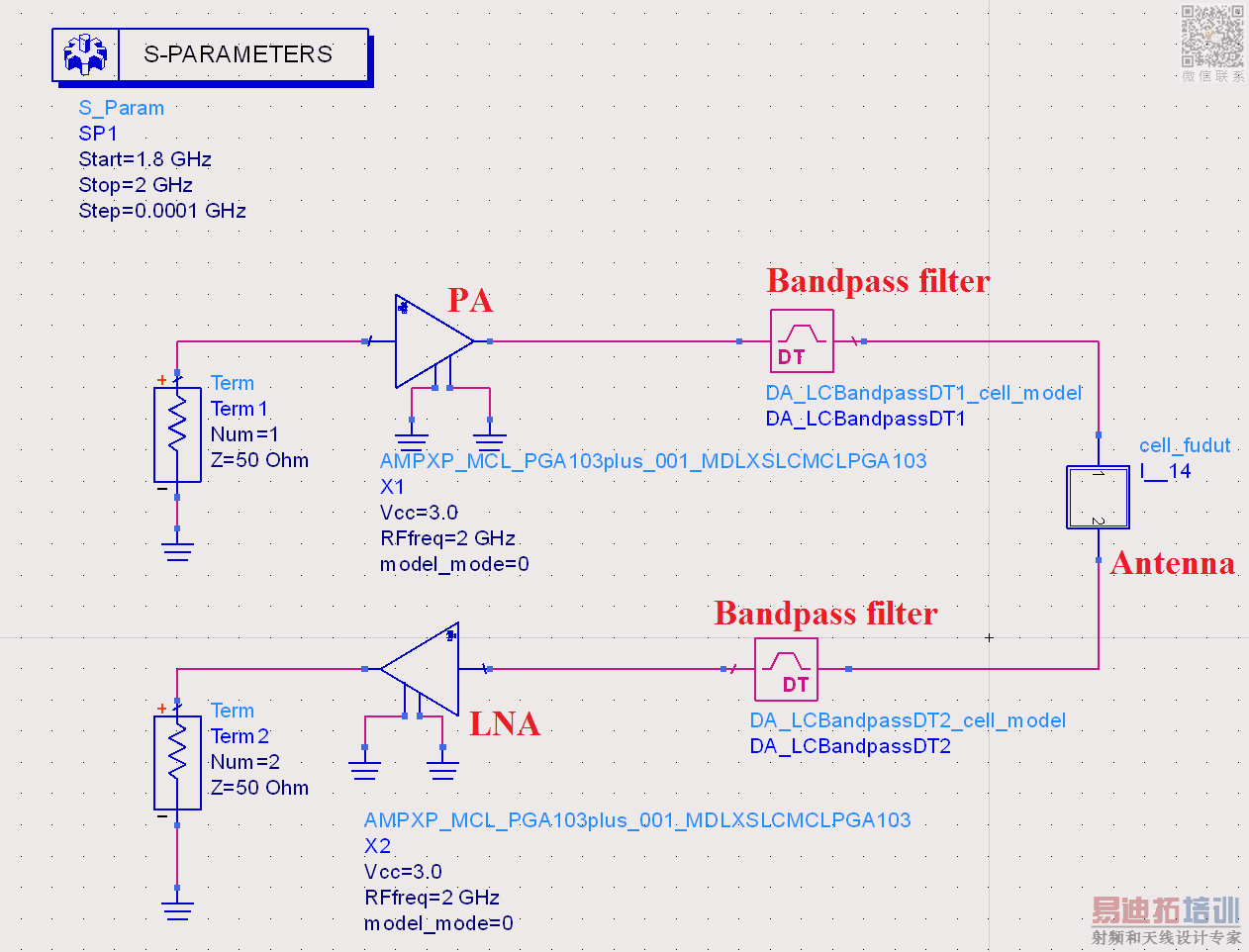

I have to measure noise figure in a circuit that I have attached its picture. Also I should check the isolation between 1. antenna ports and 2.PA and LNA. I'm not familiar with ADS. I would appreciate if somebody help me with these two cases.
Thanks in advance
Parisa
I have to measure noise figure in a circuit that I have attached its picture. Also I should check the isolation between 1. antenna ports and 2.PA and LNA. I'm not familiar with ADS. I would appreciate if somebody help me with these two cases.
Thanks in advance
Parisa
your antenna switch is missing from schematics. usually isolation of the antenna switch will be measured.
