Is this ADS model accurate enough to be similar to its s2p file?
录入:edatop.com 点击:

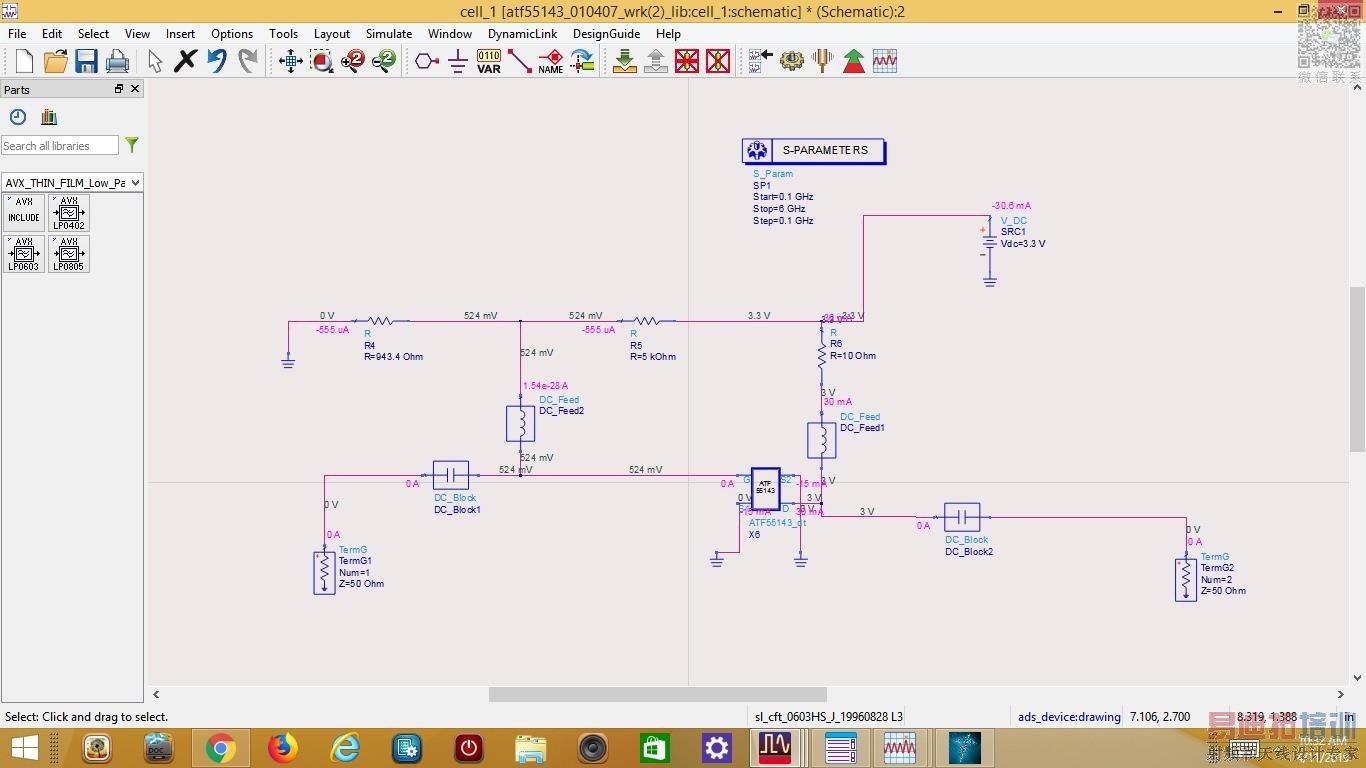

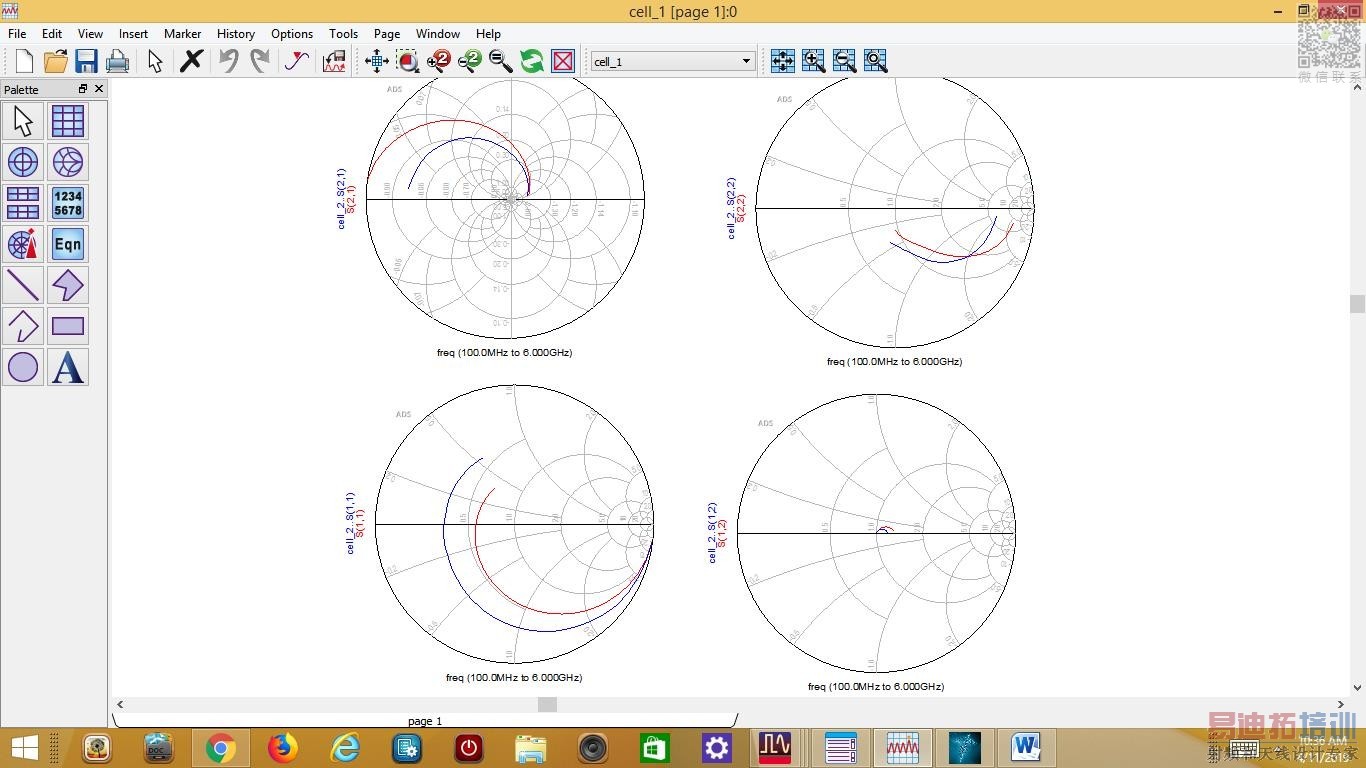

I am using the ATF55143 transistor, I downloaded the ADS model from the broadcom website and unarchived the file. The s2p file and the ads model do not agree well as you can see in the smith charts for the s-parameters. Should I just design according to what I have there? or is there anything I need to change in the ADS model schematic? I am working at a bias of 3v and 30mA. Thanks
That's all... There is no such rule so that Nonlinear Model has to match %100 to Small signal Model..
They are more or less agreed..
