Dual gate model in ADS

Its internal configuration is so that. It may be used as a inverter ( for instance ring oscillator) or anything else.,.

But I want to use it as mixer

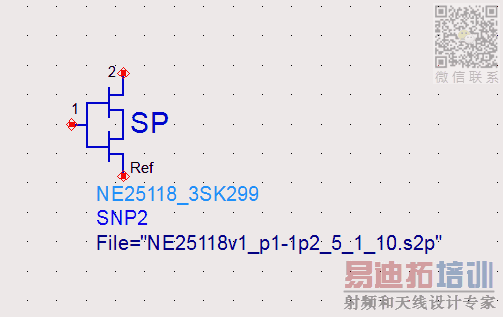

This device is using an s2p file for the model. It is not possible to simulate a mixer circuit with only s-parameter data.

So then which parameters should I use.Please reply

You should find a nonlinear model of this device.
