Dear friends
I have problem with via in ADS
I have layout in Momentum I transfer it to schematic page and use a ground
but when I use via hole in momentum page instead of ground in schematic, the result doesn't be same
Via hole isn't ground?

If the frequency is too high VIAs can not be considered tied to GND anymore.They will affect the frequency response.

the frequency range is 1-4GHz.
How can I define via as ground in this frequency?

Your question is not clear.

Via in Momentum (and in reality) has physical size, and this results in inductance + resistance. Ideal ground in schematic does not exist in reality, so some small difference is expected.

If you have large difference, perhaps something is wrong with your model. Check if your via in Momentum really connects to ground. One possible check is to see what DC resistance to ground you have in that path.

To make a via to ground in Momentum, you need to draw something on a layer (for example hole layer) and that layer must be included in the Momentum substrate as a via, connecting to infinite ground boundary.

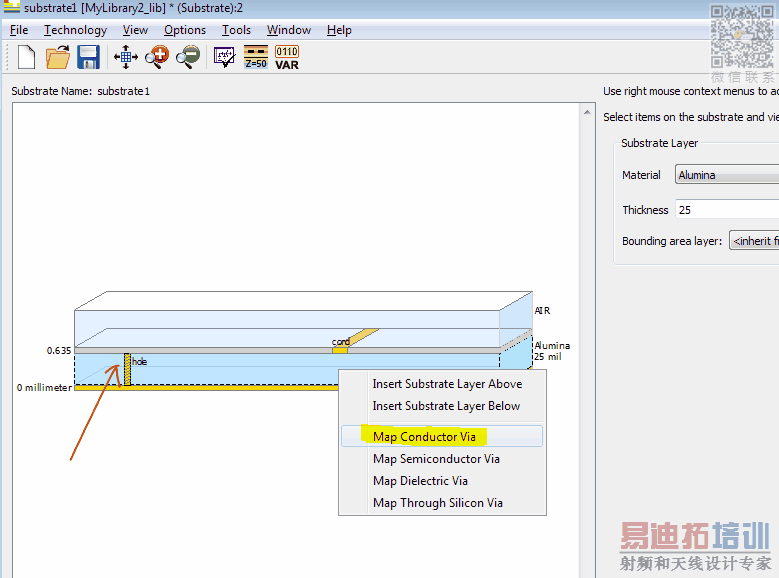

This is the definition of layer in momentum

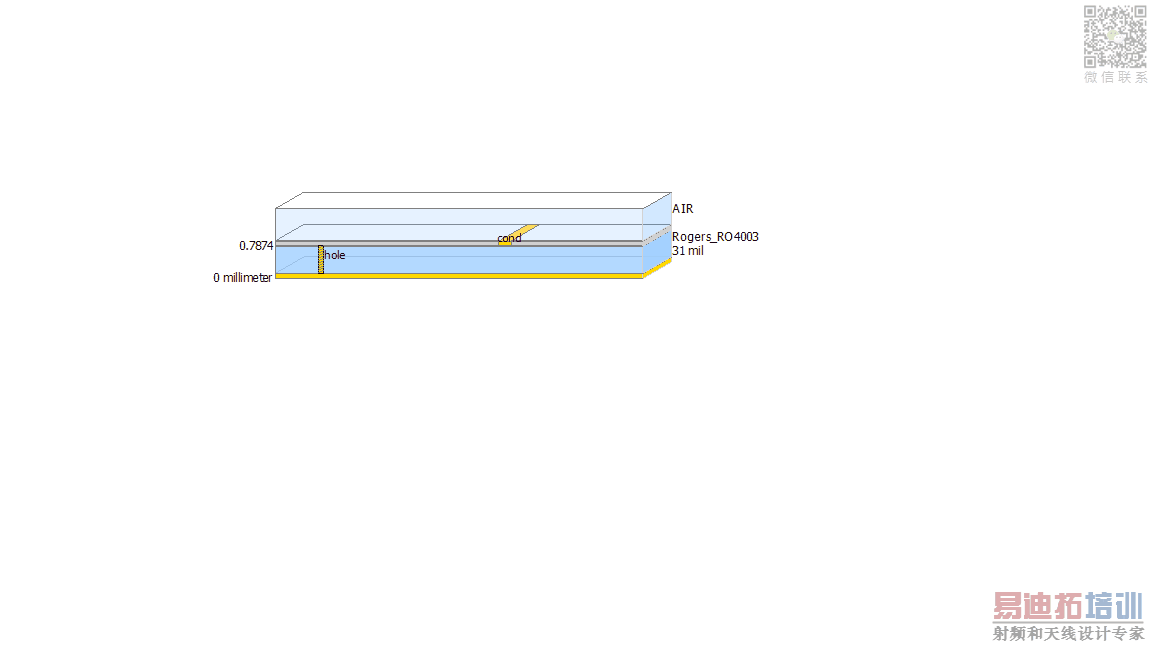

Substrate looks ok. So what difference do you see? Screenshot or data, please.

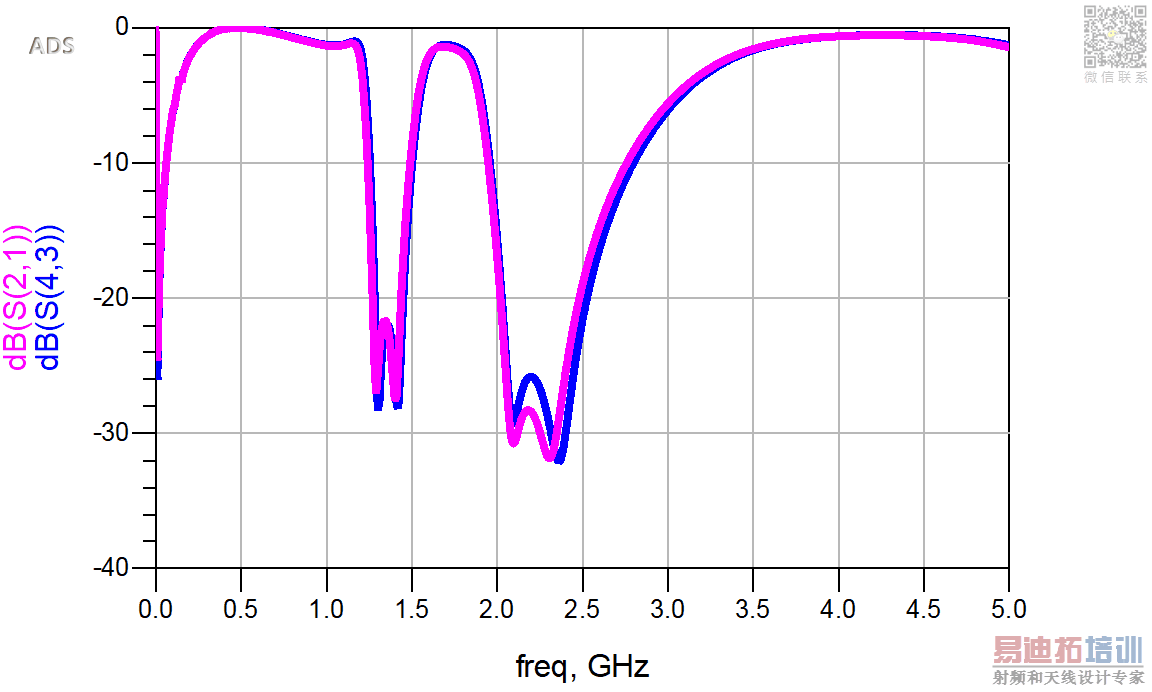

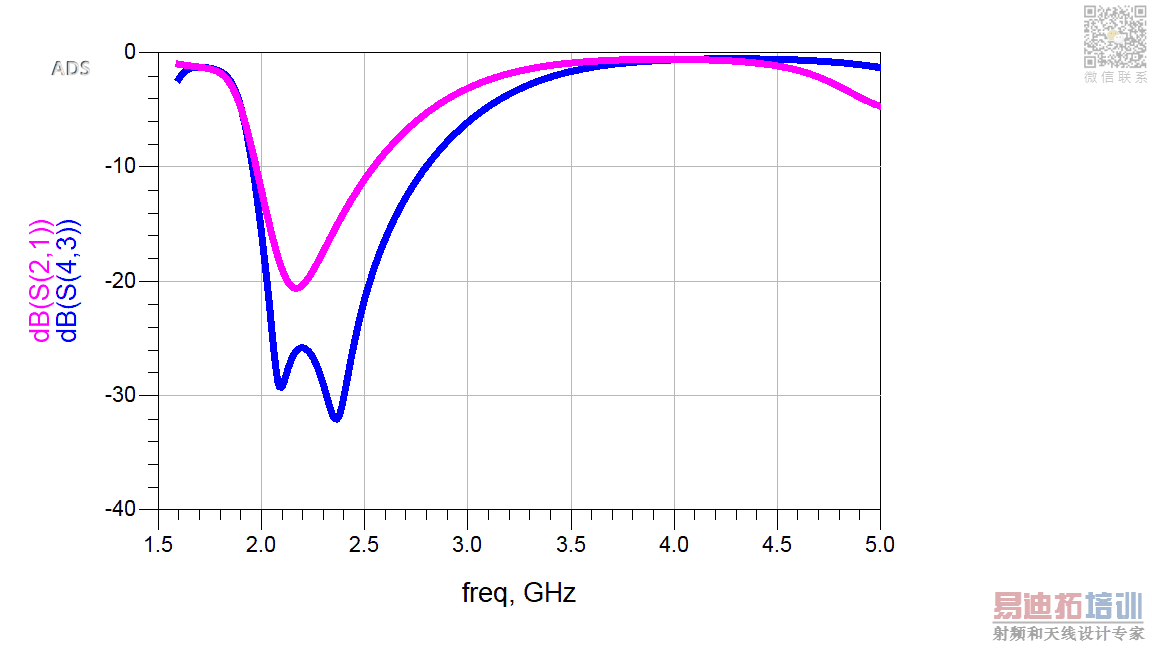

S21 response shows in fig.
pink line is the filter with via hole others with ground

Obviously, a via involves some series inductance and thus doesn't behave identical to massive ground. You can try an array of multiple vias.

It's not completely clear which geometries are you comparing.

I sweep diameter of hole but s21 didn't change

The "real" via in Momentum has some length, the schematic ground is an ideal short.
You can get more realistic ground in schematic simulation by using via model in schematic (instead of ideal short).

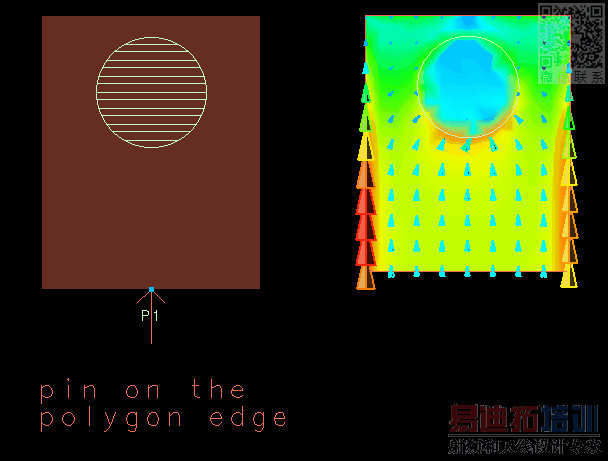

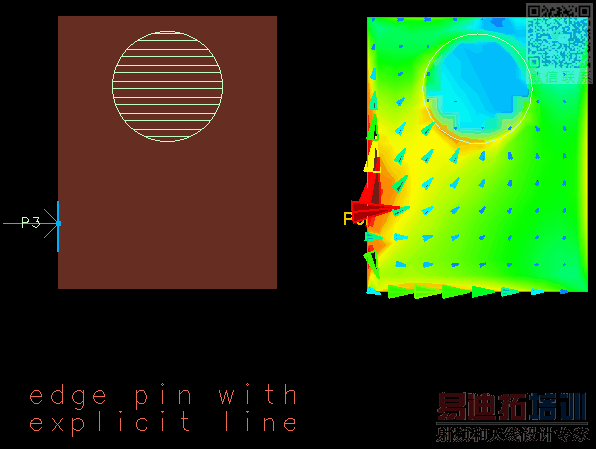

Depending on where you place the via, current flow in Momentum (and reality) will change. This is why EM results are more accurate than cascading schematic models.

In the schematic page, the filter has dc voltages for tuning the varactors. I want to connect some varactors to GND
Should I connect ground of dc sources to ac sources? I mean the ground of varactors is different from ground of via hole?

Help is much easier if you show screenshots.

To my understanding you have a DC voltage to tune the varactors in a filter structure right ? And you have-probably-done a EM simulation with a starting frequency not from 0 Hz and therefore you cannot see the effect of varactors even you apply a DC voltage.
If I have correctly understood your problem and if the case is that, I suggest you do the simulation from 0 Hz using with Momentum Microwave mode.

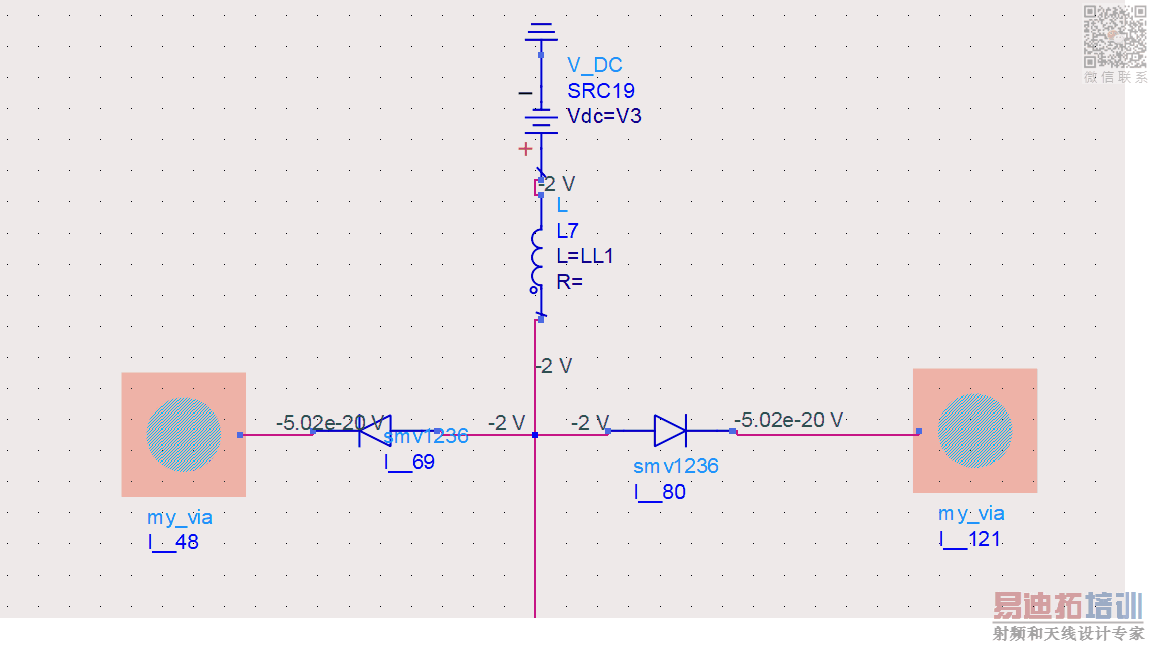

I have a filter in Momentum page. I should transfer layout from Momentum to Schematic page for connecting varactors. I don't do simulation in Momentum page I do it in Schematic. For tuning varactors, I need to bias voltage sources like attached figure

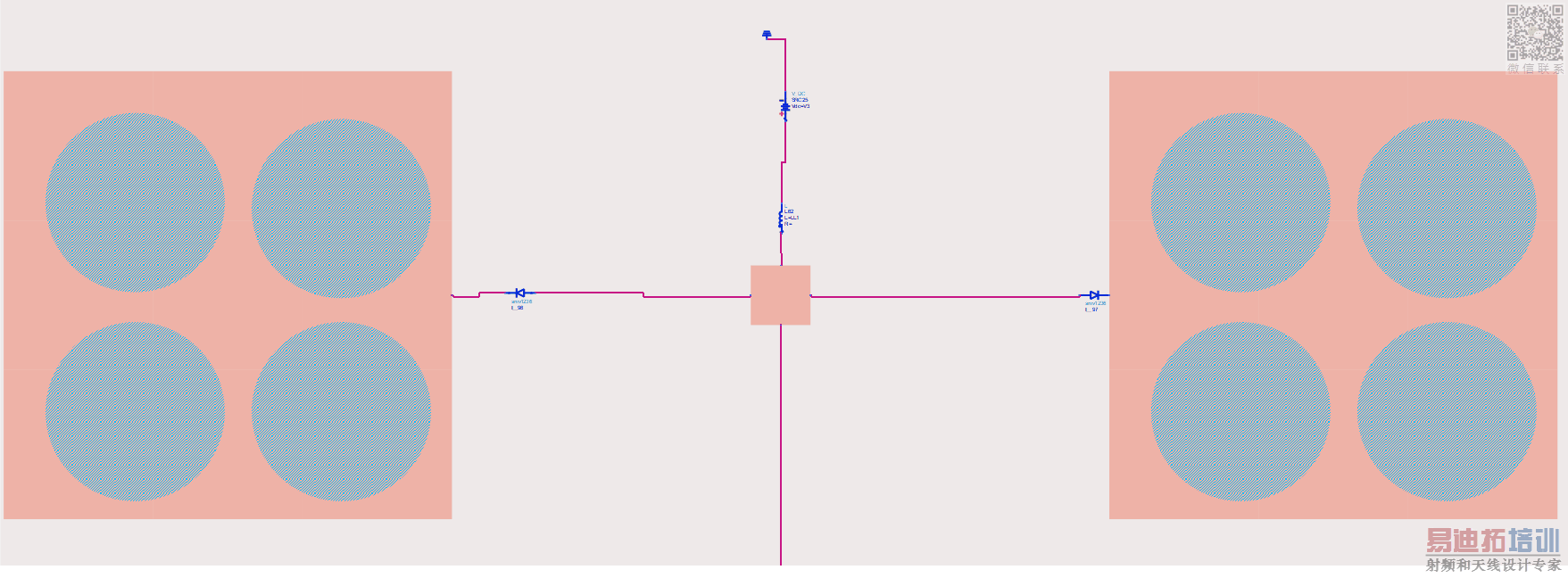

I use multiple via for reducing the effect of via's inductors

We need to guess again, because your information is not complete.

So your via subcircuits have an emModel with valid data from Momentum? If done properly, the "layout" via blocks that you show connect to ground (same as schematic ground). Test that: test circuit with via block connected to a schematic port and check S11.

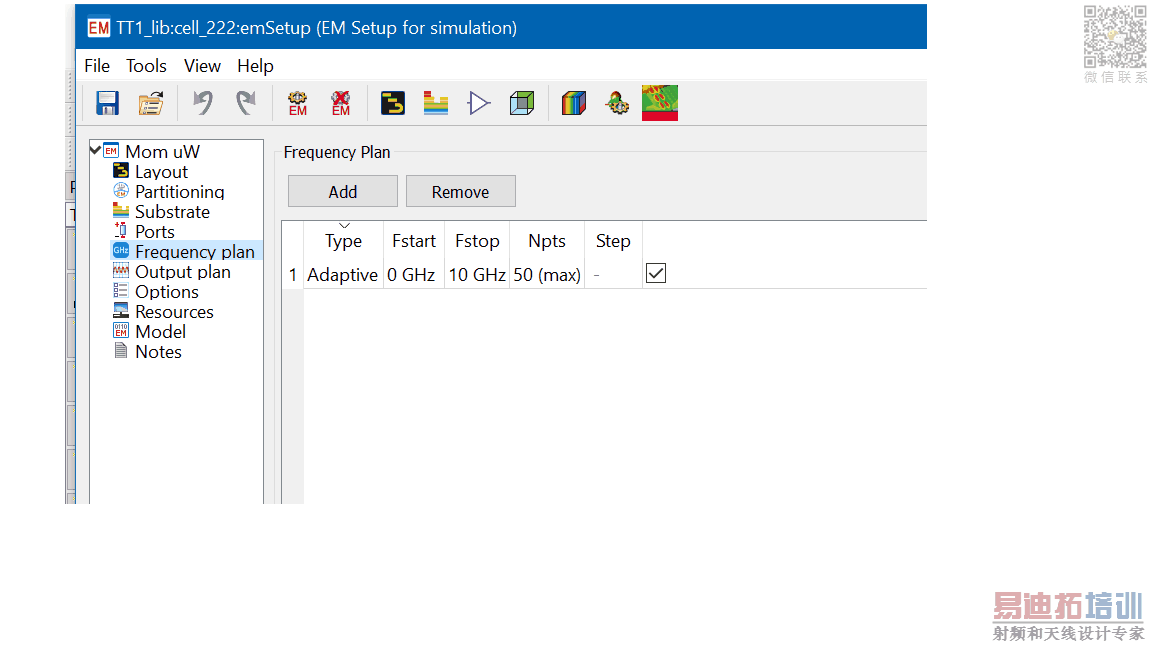

For the Momentum setup, Bigboss is right: you need to specify 0 Hz lower frequency. For this small layout with 4 vias, Momentum RF mode or Microwave mode are both ok.

Besides these details, I think that splitting layout into such small pieces will be much less accurate than "full" EM models of larger layout sections, but that's another topic.

Volker,

Is that correct ? I have simulated many structures in RF mode with 0Hz lowest frequency but I have seen many times convergence errors in schematic simulations using with especially HB.
RF mode does not takes the lowest frequency as 0Hz, it takes very close to DC but not 0Hz.That's my observation.

I simulate circuit with via block and ground

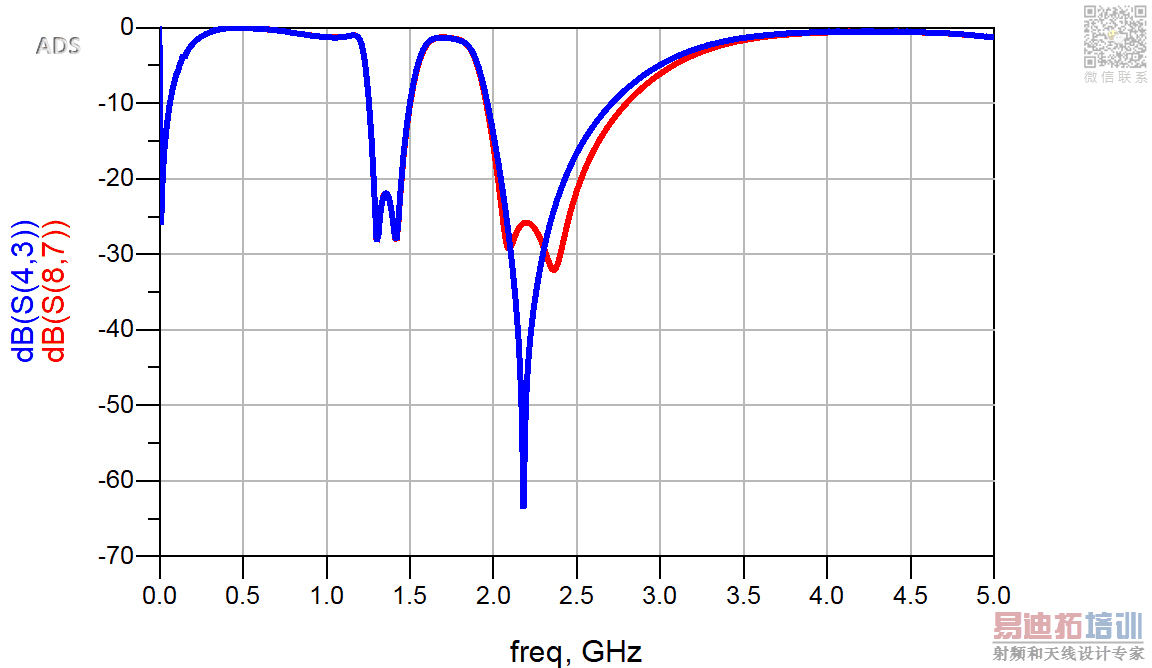

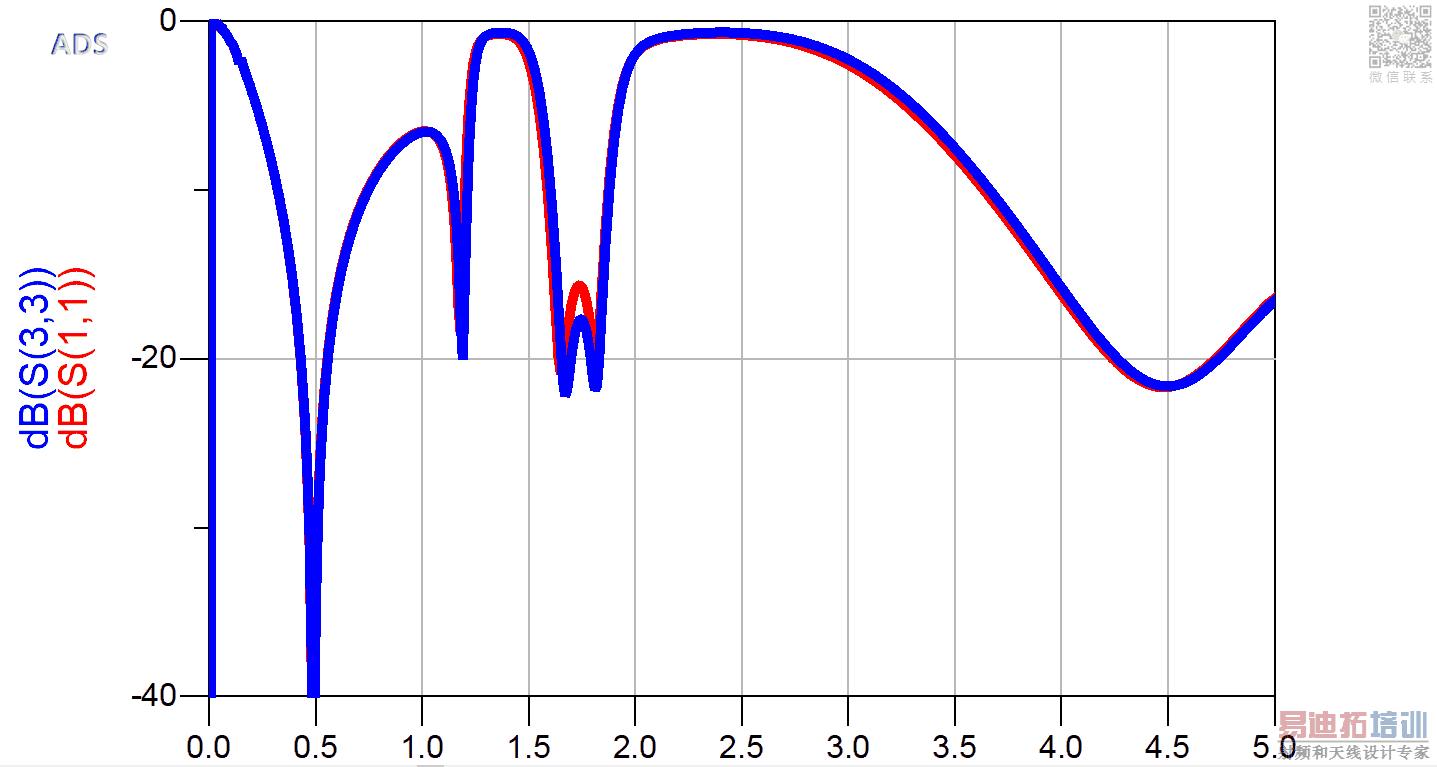

S11 and S21 frequency response is related to circuit with ground
S33 and S43 is related to circuit connected to Via block

Also, I do simulation from 0Hz in Schematic and Momentum

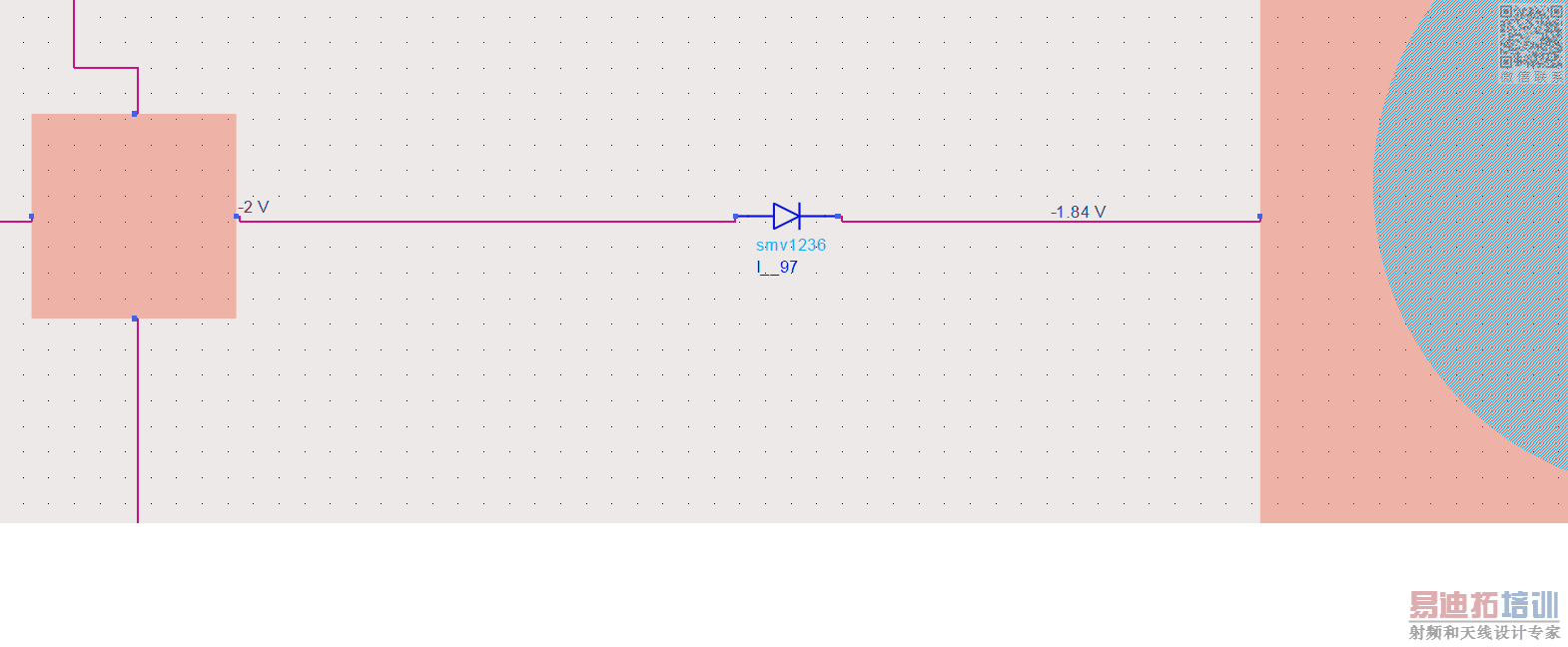

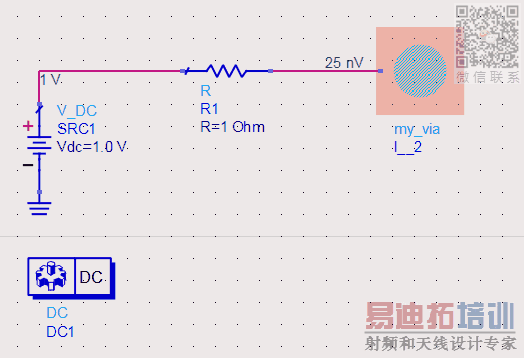

In dc annotation shows that via hole is not 0 V.

My understanding: Momentum RF mode can go down to DC, whereas Microwave mode only works at "higher" frequencies. If you specify 0 Hz in Microwave mode, this switches to RF mode at low frequency behind the scenes.

But I must admit that I use Momentum RF mode down to DC all the time, without actually using results myself in HB. My own DC results look perfectly fine. I think there is another mistake in laperlas setup.

Then there is a mistake/problem in your setup somewhere.
Again: Create a testbench with just via block and port, and show the S11 (low frequency and DC) into the via block.
