How to convert (S11) FD to TD in ADS
录入：edatop.com 点击：

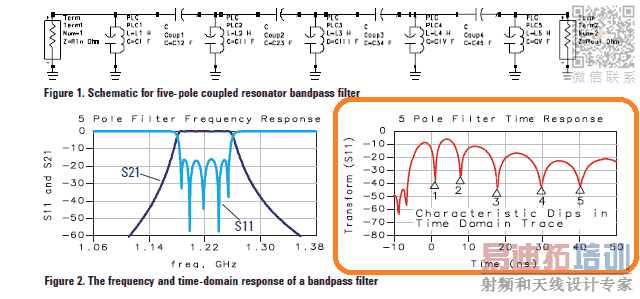

How to realized Time Response S11 for ADS?
1. Find the impulse response of the system by taking the inverse fourier transform of the frequency response.
2. Convolute your input with the impulse response.
Or just use a transient simulation.
申明：网友回复良莠不齐，仅供参考。如需专业帮助，请学习易迪拓培训专家讲授的ADS视频培训课程。
