Problem during simulation model MRF13750 in ADS
录入:edatop.com 点击:
Hi to all!

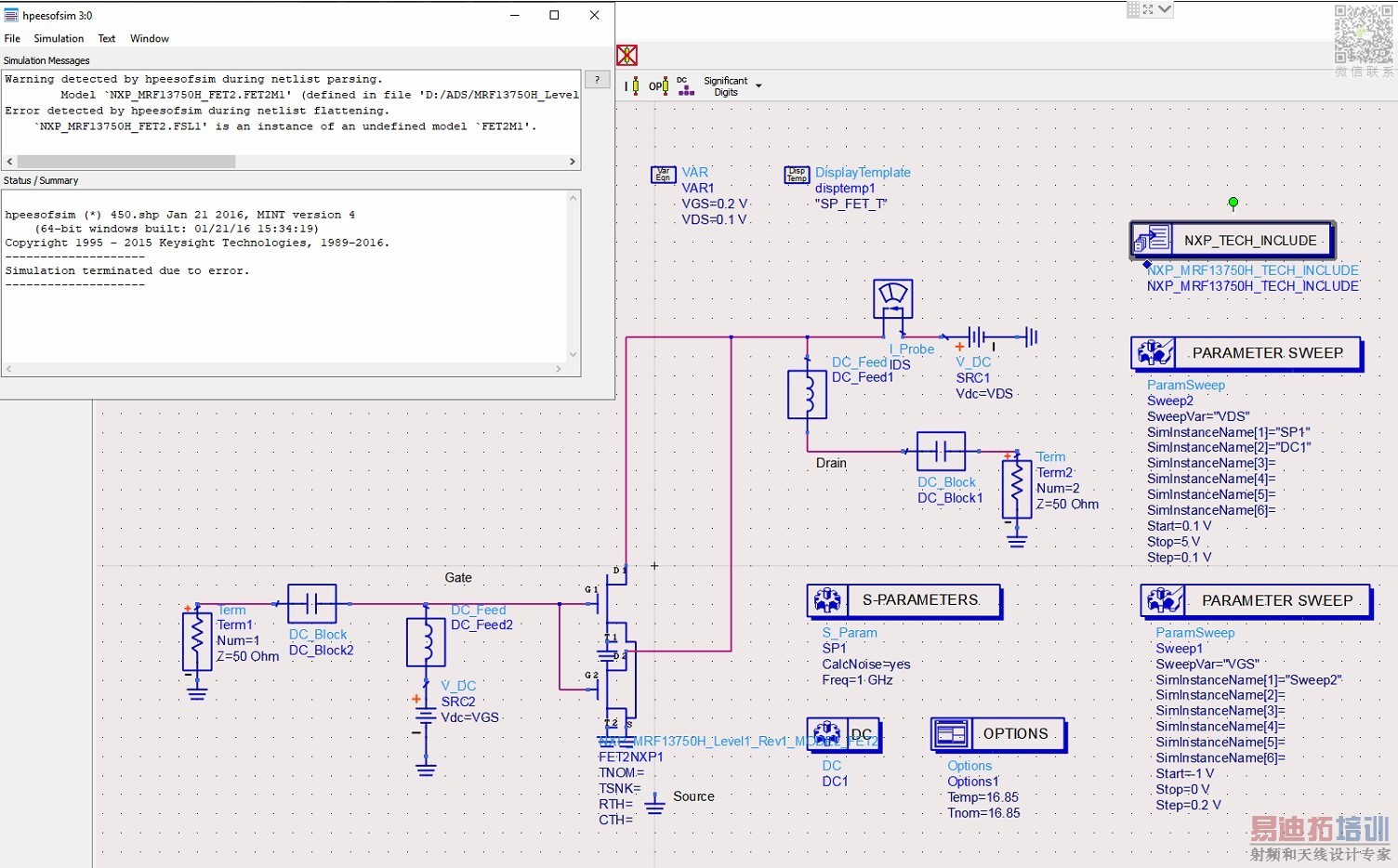

Help me please to solve a problem during simulation a model of MRF 13750 in ADS. See attached file.
Help me please to solve a problem during simulation a model of MRF 13750 in ADS. See attached file.
Did you put the Model Including Block in your schematic ?
Yes, see attached file
Did you install prerequisite RF High Power Model Kit ?
Yes, I did, but model of my transistor I didn't find in it, so I had install this model also and worked with it. May be I am doing something wrong? Can you tell me step-by-step how I must install this two packages in my project? I will be very grateful for your help.
