ADS Layout Model Help
录入：edatop.com 点击：

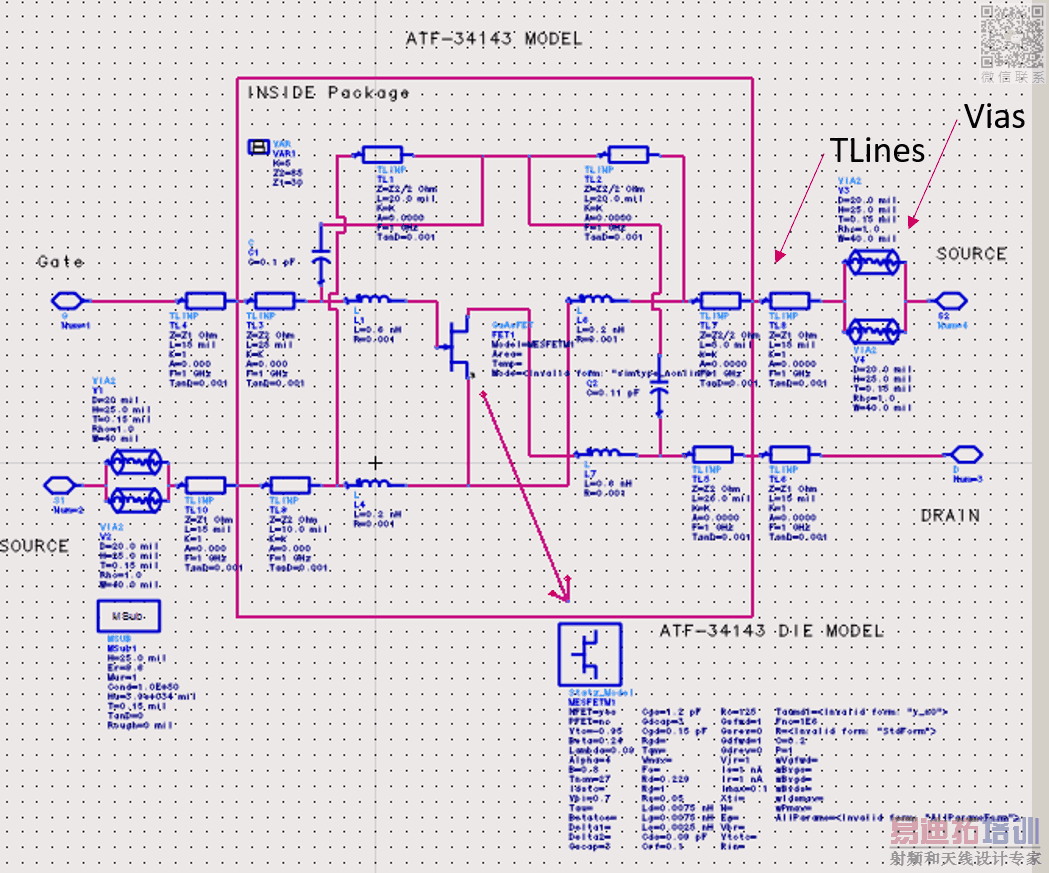

I have imported ATF-34143 ADS model. Upon converting into layout, I noticed four vias. Are those in-built in the transistor or it must be considered outside the artwork (SOT-343) of ATF-34143 for layout design ?
申明：网友回复良莠不齐，仅供参考。如需专业帮助，请学习易迪拓培训专家讲授的ADS视频培训课程。
